点击放大查看

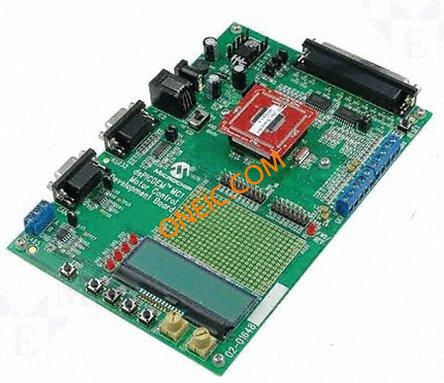

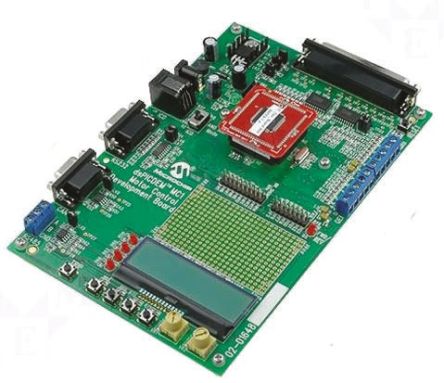

DM300020
| 制造商 | Microchip Technology Inc. |
| 描述 | DSPICDEM MC1 MOTOR CONTROL DEV Development Boards & Kits - PIC / DSPIC dsPICDEM MC1 Motor C BOARD DEV DSPICDEM MC1 MOTORCTRL DM300020, Development Kit, 16 bit, dsPIC DSPIC30F6010, MOTOR CTRL, DEV BOARD dsPICDEMMC1MotorControlDevelopmentBoard Development kit: Microchip; dsPIC30F6010; LCD 2x16 characters Microchip 电动机控制开发板 16 位 MCU 微控制器开发套件 (dsPIC 内核) |
| 分类 |
商业参数
| 产品 | Development Boards | 产品类别 | Development Boards & Kits - PIC / DSPIC |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | dsPIC | 接口 | RS-232 |
| 供电电压 | 9 V | 元件数量 | :dsPIC30F |
机械参数
| 重量 | 0.9 | 核心数/总线宽度 | 16 bit |
产品信息
| 类型 | :Development Board | 内容 | Board, Cable, Power Supply, Software |
| 嵌入式 | Yes, MCU, 16-Bit | 产品特性 | :dsPIC30F6010 Motor Control MCU Based Board, RS-232 Cable, Electrical Isolation from Power Circuits |
| 套件类型 | Microchip | 技术 | 16 bit |

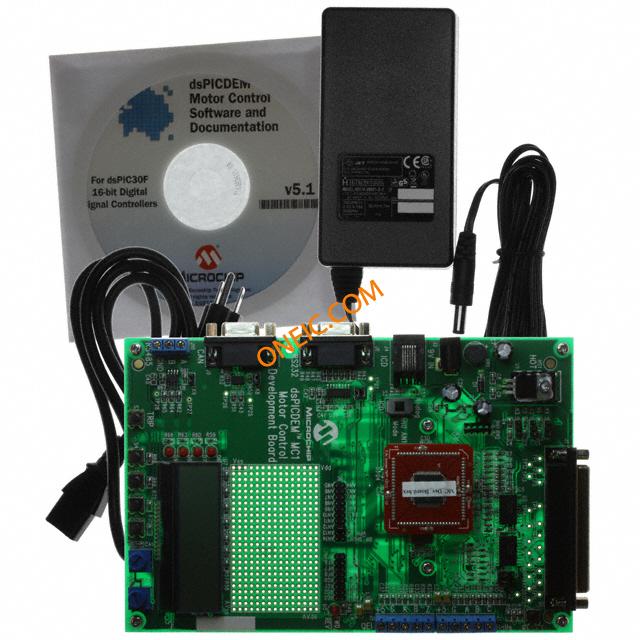

| 套件内容 | CD with Documentation & Software, dsPICDEM MC1 Motor Control Development Board with Pre-Programmed dsPIC30F Device, Power Supply, RS232 Cable | 主要用途 | Power Management, Motor Control |
| 制造商全称 | :dsPIC30F6xxx | 卡标准 | Development Kit |
| 显示样式 | LCD 2x16 characters | 按键数 | 4 |
| 单元数量 | 1 | 工具类型/特性 | dsPIC30F6010 |
| 电路数 | dsPIC30F6010 | 主要特性 | Brushless DC (BLDC) and AC Induction (ACIM) Motors |
| 使用的IC/零件 | dsPIC30F | 芯片组制造商 | :Microchip |
| 次要特性 | LCD, CAN, RS-232 and RS-485 Interfaces | 支持MCU系列 | :dsPIC30F |
| 适用产品/相关产品 | :dsPIC30F6010 | ||
