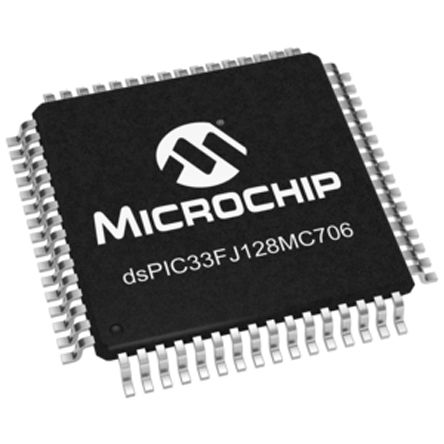

DSPIC33FJ128MC706-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 64-Pin TQFP Tray 16 bit MCU / DSP TQFP64 IC DSC 16BIT 128KB FLASH 64TQFP DSPIC33FJ128MC706-I/PT, 16 bit Microcontroller dsPIC 40MIPS 128kb Flash, 16kb RAM, I2C SPI 64-Pin TQFP Digital Signal Processors & Controllers - DSP, DSC 16 Bit MCU/DSP 64LD 40 MIPS 128KB Flash IC, 16BIT MCU/DSP 128K FLASH, SMD IC, SM 16BIT MCU/DSP 128K, WAFFLE80 16-BitMCU/DSP64LD40MIPS128KBFlash DsPIC microcontroller; Memory:128kB; SRAM:16384B; TQFP64; 3÷3.6V Micro 16b, 128KB Fl, DSPIC33FJ128MC706 dsPIC33FJ 128K TQFP64 85°C |
| 分类 |
商业参数
| 最小起订量 | 160 | 产品 | DSCs |
| 单位包装 | 160 | 其他名称 | DSPIC33FJ128MC706IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 160 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :33FJ128MC |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 53 | 转速 | 40 MHz |
| 定时器 | 9 x 16 bit | 存储器 | 128KBytes |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 8 | 分辨率 | 16bit |
| 存储器容量 | 128KByte | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 53 |
| 电压范围 | 3-3.6V | 位数 | 16 |
| 核心电压 | :2.75V | 额定电压 | 3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | 40MIPS |
| 数据转换器 | A/D 16x10b/12b | 最大频率 | 160MHz |
| DAC数量 | 8 | 振荡器类型 | Internal |
| 供电电压 | 3.3 V | 数字I/O线数 | 53pins |
| 分辨率（位） | 16bit | 通道数量 | 2 |
| 模拟输入/输出 | 16-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 128 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | ADC/DAC 数量 | 18channels |
| 最小供电电压 | 3 V | 频率（中心/带宽） | 16bit |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 10mm | 高度 | 1.05mm |
| 长度 | 10mm | 重量 | 0.0025 |
| 包装方式 | TRAY | 端接方式 | :SMD |
| 引脚间距 | :0.5mm | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :64 |
| 封装形式 | 64TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | 160 |
| 尺寸/外形 | 10 x 10 x 1.05mm | 位数 | 64 |
| 供应商器件封装 | 64-TQFP (10x10) | 核心数/总线宽度 | 16 Bit |
| 脉冲宽度失真（最大） | 1(8 Channel) (Motor Control), 8(16 bit) | ||
产品信息
| SPG | 160 | USB | No |
| 类型 | dsPIC33 | 系列 | DSPIC33F |
| 产品特性 | CAN Controller | 基本单元 | :33 |
| 匹配码 | DSPIC33FJ128MC706-I/PT | CAN编号 | 2 |
| 闪存大小 | :128KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 32-chx10-bit|32-chx12-bit | 外设 | Brown-out Detect/Reset, DMA, Motor Control PWM, QEI, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | dsPIC |
| 内置振荡器 | 512kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 9 | 标准交期 | 14 weeks |
| 射频系列/标准 | dSPIC33 | 宏单元数量 | 4 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
