点击放大查看

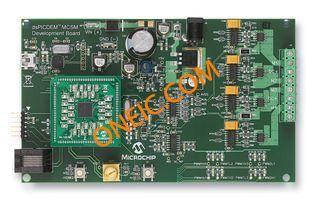

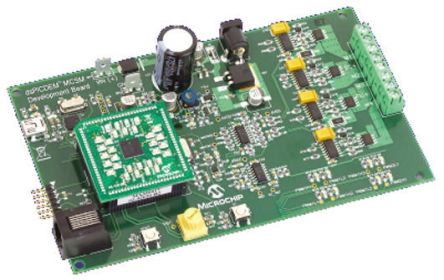

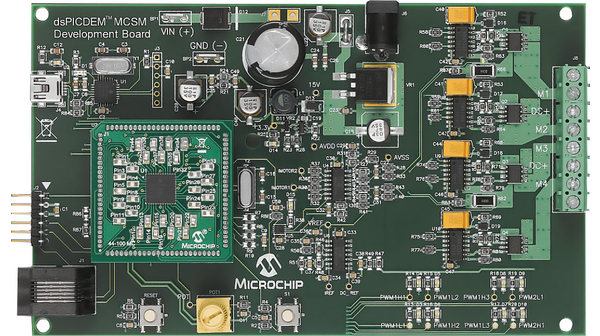

DM330022
| 制造商 | Microchip Technology Inc. |
| 描述 | DSPICDEM MCSM Development Board With Two Full-Bridge Inverters Development Boards & Kits - PIC / DSPIC Dev Board dsPICDEM MCSM BOARD DEV DSPICDEM MCSM DM330022, Development Kit, 16 bit, dsPIC DSPICDEM, MOTOR CONTROL, DEV BOARD dsPICDEMMCSMDevelopmentBoard,MotorControl dsPICDEM MCSM Development Board, DM330022, Microchip Microchip 开发板 16 位 MCU 微控制器开发套件 (dsPIC 内核) |
| 分类 |
商业参数
| 产品 | Development Boards | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | dsPIC | 接口 | CAN, LIN, RS-232, USB |
| 供电电压 | 24 V | 元件数量 | :dsPIC33F |
机械参数
| 重量 | 0.05 | 核心数/总线宽度 | 16 bit |
产品信息
| 类型 | Development Kit | 内容 | Board, Module, Cable, CD, Screwdriver |
| 嵌入式 | Yes, MCU, 16-Bit | 产品特性 | :Control Both Unipolar and Bipolar Stepper Motors in Open-Loop or Closed-Loop (current control) Mode |
| 功能 | dsPICDEMTM MCLV Development Board provides a cost-effective method of evaluating and developing sensored or sensorless Brushless DC (BLDC) and permanent magnet synchronous motor control applications | 技术 | 16 bit |

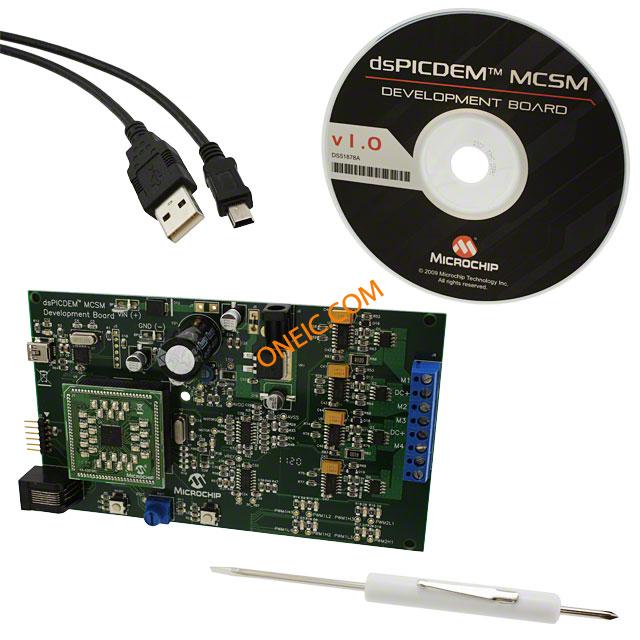

| 套件内容 | CD with Documentation & Software, dsPIC33FJ32MC204 Plug-In-Module, dsPICDEM MCSM Development Board, Screw Driver, USB to Mini USB Cable | 主要用途 | Power Management, Motor Control |
| 制造商全称 | :dsPIC33FJxxMCxxx | 卡标准 | Development Kit |
| 工具类型/特性 | dsPIC33FJ32MC204 | 使用的IC/零件 | dsPIC33F |
| 芯片组制造商 | :Microchip | 次要特性 | LED Status Indicators |
| 支持MCU系列 | :dsPIC33F | ||
文档与媒体
相关型号

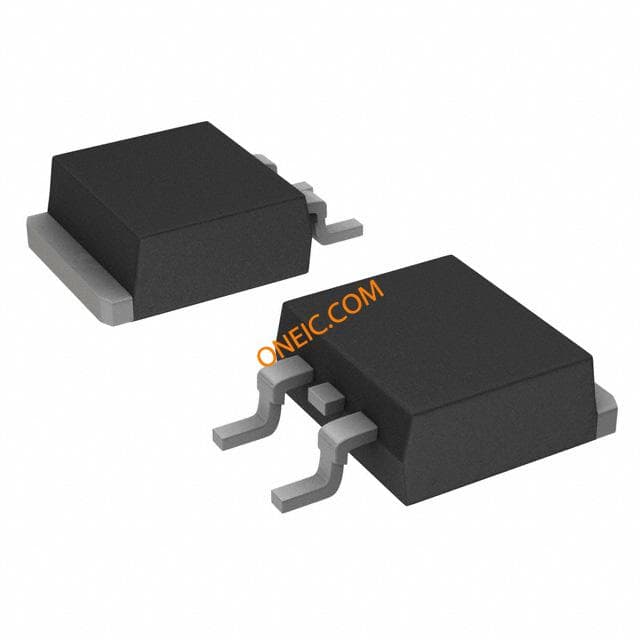

MC7815CD2TR4G
on semiconductor
LDO Regulator Pos 15V 1A 3-Pin(2+Tab) D2PAK T/R IC REG LDO 15V 1A D2PAK Voltage Regulators - Standard 15V 1A Postive IC, LINEAR VOLTAGE REGULATOR ON Semiconductor MC78xx 系列 线性稳压器, 15 V /2.2A, 3针 D2PAK Linear Voltage Regulators 15V 1A Positive

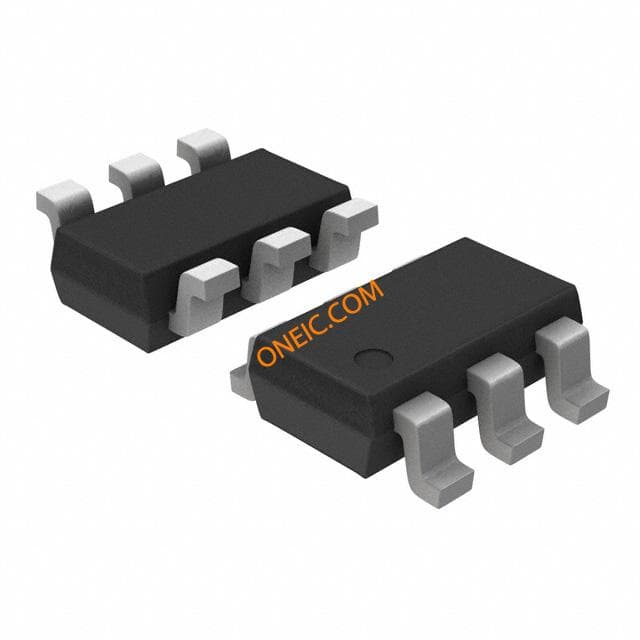

LM2736YMK
