首页产品分类电路保护解决方案保险丝座PCB安装保险丝座178.6764.0001

点击放大查看

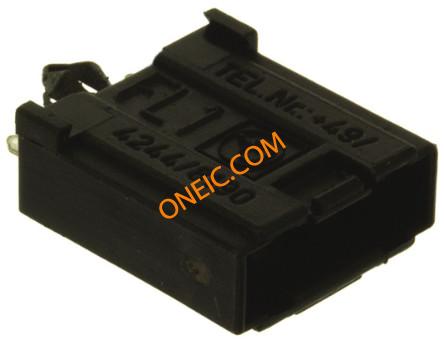

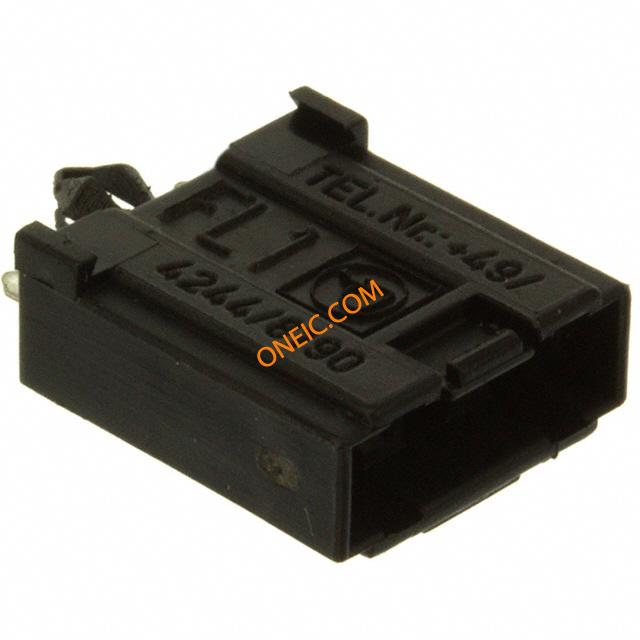

178.6764.0001

制造商	Littelfuse, Inc.
描述	Fuse Holders FL1 (Mini) PCB Holder Fuse Holder 125V Pin Through Hole AUTOHOLDER FL1 14x15.6 for FK1 FUSE HOLDER BLADE 125V PCB MINI Fuseholder 125V FUSE HOLDER, PCB, FK1 BLADE FUSE HOLDER, PCB MOUNT Fuse holder; automotive fuses; Mounting: PCB; 10,9mm; max.130°C Fuse holder miniATC / miniATO / FK1, 178.6764.0001, Littelfuse Littelfuse 底座安装熔断器座, 用于mini熔断器, 125 V
分类	电路保护解决方案保险丝座PCB安装保险丝座

对参数有疑问？问 AI 助手

商业参数

最小起订量	200	产品	Fuse Holders
单位包装	100	产品类别	Fuse Holders
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85361010
汽车级	NO	无铅定义	RoHS-conform
材料阻燃等级	:UL94V-0

电气参数

电压	125V	额定电压	125 V
极数	1	额定交流电压	:125V
触点电压（最大）	:125V	每极负载侧连接方式	:Through Hole

机械参数

颜色	Black	深度	:6mm
间距	:12mm	宽度	:14mm
高度	15.6	长度	:20mm
重量	0.002	包装方式	Bulk
方向	Vertical	端接方式	THT
引脚直径	:2.7mm	基体材料	Thermoplastic
安装类型	PCB	端子类型	:Quick Connect
接触镀层	Tin	安装样式	Through Hole, Vertical
保险丝座类型	Holder	触头材料	Copper Alloy
总长度	:15.6mm	包装数量	100
端接样式	PC Pin	安装孔直径	:1.5mm

产品信息

SPG	100	类型	Fuse Holder
系列	1786000	保险丝尺寸	0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm)
保险丝类型	MINI	匹配码	FUHAUTO
照明类型	No	单元数量	1
标准交期	14 weeks	电路数	1
附带电池数量	:1	适用产品/相关产品	MINI ATC, MINI ATO

环境参数

工作温度

max. 130°C

文档与媒体

PDF 文档

FL1Holder.pdf

PDF 文档

178.6764.0001

PDF 文档

320372.pdf

PDF 文档

Littelfuse_MINI-PCB-Fuse-holders-178.6764.0001.pdf
