点击放大查看
0297004.WXNV
| 制造商 | Littelfuse, Inc. |
| 描述 | Fuses 32V 4A Fast Acting Fuse Blade 4A 32V Socket 10.9 X 3.8 X 8.8mm Fuse - 32V Mini-OCR-w/VSN-Nylon 4A FUSE BLADE 4A 32V MINI FAST-ACT Automotive Fuses 32V 4A Fast Acting FUSE, BLADE, 4A, 32V, FAST ACTING Fuse: fuse; automotive; 4A; 32V; 10,9mm; MINI 4A 32V AUTOMOTIVE MINI rose |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Automotive Fuses |
| 单位包装 | 0 | 产品类别 | Fuses |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85361010 | 抗辐射加固 | No |
电气参数
| 指示器 | Without Indicator | 电阻 | 0.024 Ohms |
| 熔断I²t | 17 | 响应时间 | Fast |
| 额定电压 | 32 V | 中断输出 | 1 kA at 32 VDC |
| 直流冷态电阻 | 0.02348 Ohm | 最大额定电流 | 4 A |
| 触点电压（最大） | :32V | 熔断特性 | :Fast Acting |
| 最小供电电压 | 1000A | 直流反向电压（Vr）（最大） | 32V |
机械参数
| 颜色 | Pink | 深度 | 3.8 mm |
| 宽度 | 8.8 mm | 高度 | 8.8 mm |
| 重量 | 0.00068 | 直径 | 3.8 mm |
| 包装方式 | Bulk | 基体材料 | Polyamide |
| 安装类型 | Socket | 安装样式 | Holder |
| 封装形式 | 3.8 mm | 总长度 | 10.9 mm |
| 包装数量 | 3000 | 尺寸/外形 | 10.9 mm L x 8.8 mm W x 3.8 mm D |
| 端接样式 | Blade | 连接器颜色 | :Pink |
| 触点数 | 2 | 位数 | 2 |
产品信息
| SPG | 3000 | 类型 | Mini Blade Fuse |
| 系列 | 297 | 保险丝尺寸 | Mini |
| 保险丝类型 | Fast Blow | 产品子类型 | Blade Fuse |
| 单元数量 | 10 | 有铅工艺兼容 | :Yes |
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 40 C to + 125 C |
文档与媒体
相关型号
0FHM0001ZXJ
Littelfuse
Fuse Holders HOLDER MINI INLINE BLACK WIRE BLADE FUSEHOLDERS - IN-LINE SPLASH-WATERPROOF FUSEHOLDER FOR MINI STYLE BLADE FUSE FUSEHOLDER IN LINE for MINI FUSE HLDR BLADE 32V 20A IN LINE FUSE HOLDER, IN-LINE, 20A Fuse Holder HOLDER MINI INLINE BLACK WIRE
01530008Z
Littelfuse
Fuse Holders Inline Vertical Mount Fuse Holder 15A 32V Pin Through Hole AUTOMOTIVE-SI-HOLDER VERTICAL FUSE HOLDER BLADE 32V 15A PCB Mini fuseholder,15A 32V FUSE HOLDER, MINI BLADE, VERTICAL, PCB ACSFUSEHLDRVERTICALMT Fuse holder; automotive fuses; Mounting: PCB; 10,9mm; -40÷85°C Fuse holder miniATC / miniATO, 01530008Z, Littelfuse Littelfuse 15A PCB 固定熔断器座 , 适用于汽车熔断器, 32 V Fuse Holder Inline Vertical Mount
01530002H
Littelfuse
Fuse Holders ACS Mini Inline Fuse Holder In Line Automotivehold. ACS Mini Inline FUSE HOLDER BLADE 20A IN LINE FUSE HOLDER, IN LINE Fuse Holder ACS Mini Inline
0FHM0002ZXJ
Littelfuse
Fuse Holders HOLDER MINI INLINE ORANGE WIRE Holder - Mini Inline Orange 12AWG30A FUSE HLDR BLADE 32V 20A IN LINE Fuse Holder HOLDER MINI INLINE ORANGE WIRE
01530007Z
Littelfuse
Fuse Holders Inline Horizontal Mount Automotivehold. horiz.mount PCB FUSE HOLDER BLADE 32V 15A PCB MINI Fuseholder 15A 32V Fuse Holder 15A 32V Pin Through Hole FUSE HOLDER, HORIZ. BLADE PCB Fuse holder; automotive fuses; Mounting: PCB; 10,9mm; -40÷85°C Fuse holder miniATC / miniATO, 01530007Z, Littelfuse Littelfuse 底座安装熔断器座, 用于mini熔断器, 32 V, 15A Fuse Holder Inline Horizontal Mount
01530009Z
Littelfuse
Fuse Holders Inline Vertical Mount Fuse Holder 15A 32V Pin Through Hole ACS FUSEHLDR VERTICAL MT FUSE HOLDER BLADE 32V 15A PCB MINI Fuseholder 15A 32V FUSE HOLDER Fuse holder miniATC / miniATO, 01530009Z, Littelfuse Littelfuse 底座安装熔断器座, 用于mini熔断器, 32 V, 15A Fuse Holder Inline Vertical Mount
3544-2
Keystone Electronics
Fuse Clips AUTO FUSEHOLDER .032 FUSE BLOCK BLADE 500V 15A PCB Fuse Clip 30A 500VAC Faston Through Hole FuseClip;500VAC;30A;PCB;For0.110in.x0.032in.minibladefuses
178.6764.0001
Littelfuse
Fuse Holders FL1 (Mini) PCB Holder Fuse Holder 125V Pin Through Hole AUTOHOLDER FL1 14x15.6 for FK1 FUSE HOLDER BLADE 125V PCB MINI Fuseholder 125V FUSE HOLDER, PCB, FK1 BLADE FUSE HOLDER, PCB MOUNT Fuse holder; automotive fuses; Mounting: PCB; 10,9mm; max.130°C Fuse holder miniATC / miniATO / FK1, 178.6764.0001, Littelfuse Littelfuse 底座安装熔断器座, 用于mini熔断器, 125 V

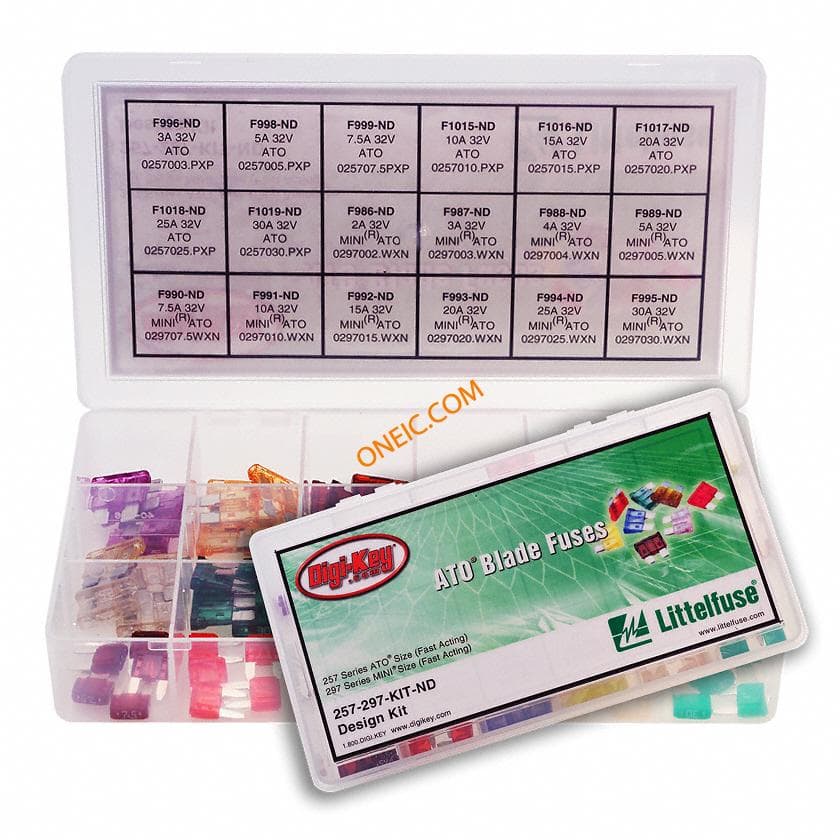

257-297-KIT
