点击放大查看

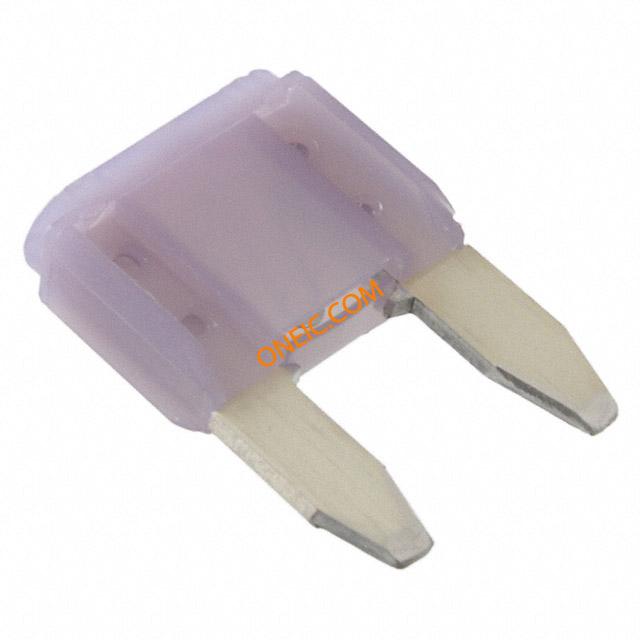

0297003.WXNV
| 制造商 | Littelfuse, Inc. |
| 描述 | Fuses 32V 3A Fast Acting Fuse Blade 3A 32V Socket 10.9 X 3.8 X 8.8mm FUSE BLADE 3A 32V MINI FAST-ACT Purple MINI F Fuse 3A 32V Automotive Fuses 32V 3A Fast Acting FUSE, MINI BLADE, 3A FUSE, BLADE, 3A, 32V, FAST ACTING FUSE-32VMINI-OCR-W/VSN-NYLON3A Fuse: fuse; automotive; 3A; 32V; 10,9mm; MINI Littelfuse 3A 紫色 车用插片式熔断器 , 32 V 直流 3A 32V AUTOMOTIVE MINI violet |
| 分类 |
商业参数
| 产品 | Automotive Fuses | 产品类别 | Fuses |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85361010 |
| 抗辐射加固 | No | ||
电气参数
| 指示器 | Without Indicator | 电阻 | 0.034 Ohms |
| 熔断I²t | 9.4 | 响应时间 | Fast |
| 额定电压 | 32 V | 最大频率 | F |
| 中断输出 | 1 kA at 32 VDC | 直流冷态电阻 | 0.03375 Ohm |
| 最大额定电流 | 3 A | 触点电压（最大） | :32V |
| 最小输入电压 | 1000 A | 熔断特性 | :Fast Acting |
| 最小供电电压 | 1000A | 直流反向电压（Vr）（最大） | 32V |
| 额定电压下分断能力 | :1000A | ||
机械参数
| 颜色 | Violet | 深度 | 3.8 mm |
| 宽度 | 8.8 mm | 高度 | 8.8mm |
| 长度 | 10.9mm | 重量 | 0.058 |
| 直径 | 3.8 mm | 包装方式 | Bulk |
| 刀片尺寸 | Mini | 基体材料 | Polyamide |
| 安装类型 | Socket | 卷盘容量 | :3000 |
| 刀片长度 | :7.5mm | 安装样式 | Holder |
| 封装形式 | 3.8 mm | 总长度 | 10.9 mm |
| 包装数量 | 3000 | 尺寸/外形 | 10.9 mm L x 8.8 mm W x 3.8 mm D |
| 端接样式 | Blade | 连接器颜色 | Purple |
| 触点数 | 2 | 位数 | 2 |
产品信息
| SPG | 3000 | 类型 | Mini Blade Fuse |
| 系列 | 297 | 保险丝尺寸 | Mini |
| 保险丝类型 | Fast Blow | 产品子类型 | Blade Fuse |
| 单元数量 | 10 | 有铅工艺兼容 | :Yes |
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 40 C to + 125 C |
