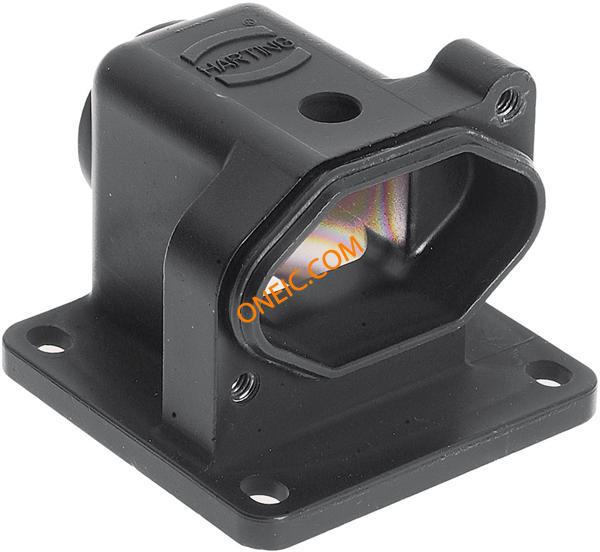

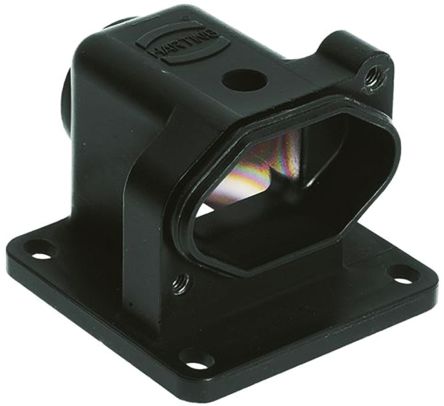

19400030950

制造商	HARTING Technology Group
描述	Heavy Duty Power Connectors SURFACE MOUNTING HSG ANGLED 1 SIDE ENTRY HAN 3 HPR ANGLED HOUSING M20 NOT CONN BASE SIDE ENTRY SZ3A M20 HAN3HPRANGLEDHOUSINGM20 Han HPR Housings: Han 3 HPR angled housing M20 Harting Han HPR 系列直角电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 019 019-40-003-0950 0950 40	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
方向	直角	螺纹尺寸	M20
外壳颜色	Black	安装类型	表面安装
连接器类型	Base - Panel Mount 90°	外壳涂层	Chromate
壳体材料	Zinc, Die Cast

产品信息

类型	CONNECTORS	样式	Side Entry
系列	*	产品子类型	Receptacle Housings
锁定位置	Screw Locks on Hood	基础产品编号	1940

环境参数

防护等级

IP65/68/69K - Dust Tight, Water Resistant, Waterproof

工作温度

-40°C ~ 125°C
