19370031750

制造商	HARTING Technology Group

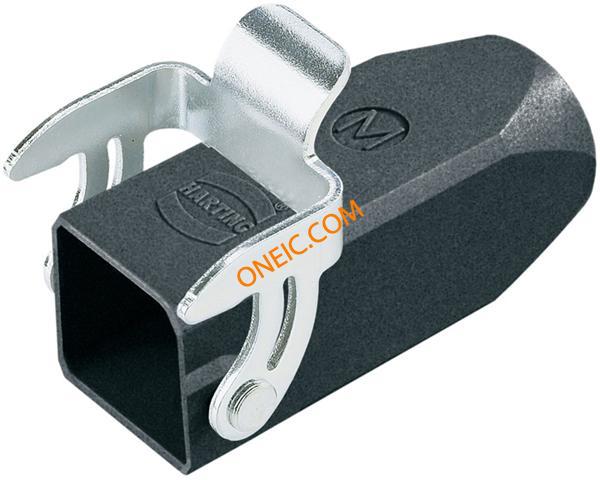

描述	Heavy Duty Power Connectors CABLE TO CABLE HOOD HAN 3A METAL HAN 3M-KG-QB-M20 CONN HOOD CPLNG BOTTOM SZ3A M20 Han3M-kg-QB-M20 Harting HAN M 系列顶入电源连接器外壳
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 019 019-37-003-1750 1750 37	产品类别	Heavy Duty Power Connectors
标准包装数量	10	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
方向	顶入	螺纹尺寸	M20
外壳颜色	Black	连接器类型	Hood - Coupling
外壳涂层	Powder Coated	壳体材料	Zinc, Die Cast
尺寸/外形	0.953" L x 0.953" W x 2.244" H (24.20mm x 24.20mm x 57.00mm)

产品信息

类型	连接器护罩	样式	Bottom Entry
系列	*	产品特性	Cable to Cable
产品子类型	Accessories	锁定位置	Side Clip on Hood Top
基础产品编号	1937

环境参数

防护等级

IP65/67 - Dust Tight, Water Resistant, Waterproof

工作温度

-40°C ~ 125°C
