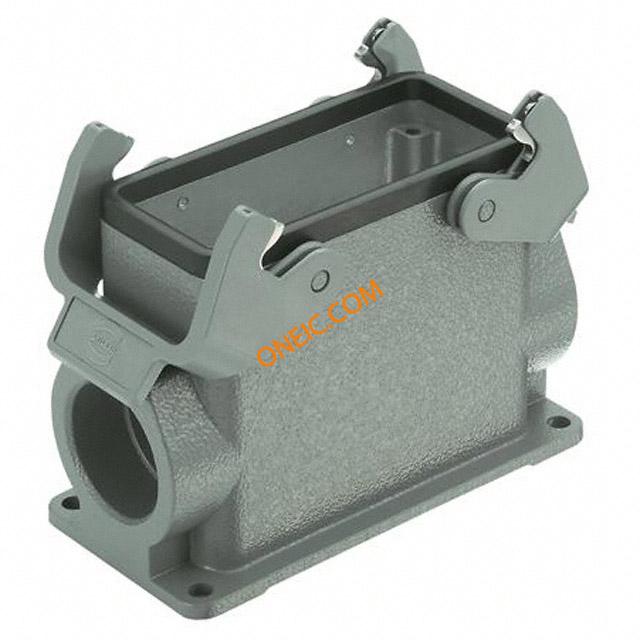

19300160232

制造商	HARTING Technology Group
描述	HAN 16B SM BASE HC 1 X M32 Heavy Duty Power Connectors HAN16B HC2 HAN16BSMBaseHC1xM32 Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han 16B SM Base HC 1 x M32 Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3115	零件号别名	016 019 019-30-016-0232 0232 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	16B	重量	0.41 kg
包装方式	Bulk	螺纹尺寸	M32
重量（g）	402.00000	外壳颜色	Gray
安装类型	flange (4 holes), on panel, on cable	衬套螺纹	M32
连接器类型	Base - Box Mount	外壳涂层	Powder Coated
安装样式	Side	封装形式	size 16B
插入力	Female	锁定特性	with double latch
壳体材料	Aluminum, Die Cast	包装数量	2
尺寸/外形	4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)	端接样式	Cable
触点数	1	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品子类型	Housings	锁定位置	Locking Clip on Base Bottom
适配器系列	Han	单元数量	1
加载位置数	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
