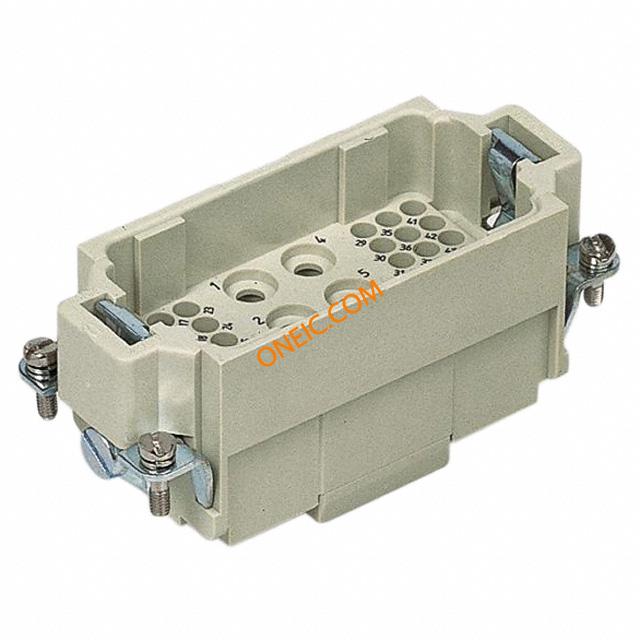

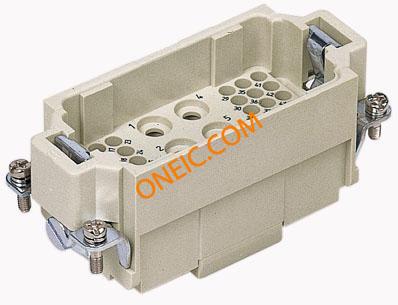

09380423001
| 制造商 | |
| 描述 | Conn Housing M 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16B CRIMP TERM HAN K 6/36 POS. M INSERT CRIMP HANK6/36POS.MINSERTCRIMP Han HSC Male Insert: Han K 6/36 Position M Insert Crimp Harting Han K 系列 43针 插头 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 042 09 09-38-042-3001 3001 38 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 690 V | 最大额定电流 | 40 A |
| 最小输入电压 | 690V/160V | ||
机械参数
| 尺寸 | 16B | 颜色 | Gray |
| 深度 | 39 | 高度 | 34 |
| 包装方式 | Bulk | 导线线规 | (10-16)/(14-26) |
| 方向 | 直 | 重量（g） | 66.75000 |
| 触头类型 | Han® C, Han® D | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver / Gold |
| 安装样式 | Straight | 插入力 | Male |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate |
| 总长度 | 84.5 | 尺寸/外形 | 16B |
| 端接样式 | Crimp | 触点数 | 6Power/36Signal/1Ground |
| 位数 | 6+36+Ground | 线规或范围 - AWG | 16-10 |
产品信息
| 类型 | Housing | 连接器性别 | M |
| 系列 | Han Com | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
