点击放大查看

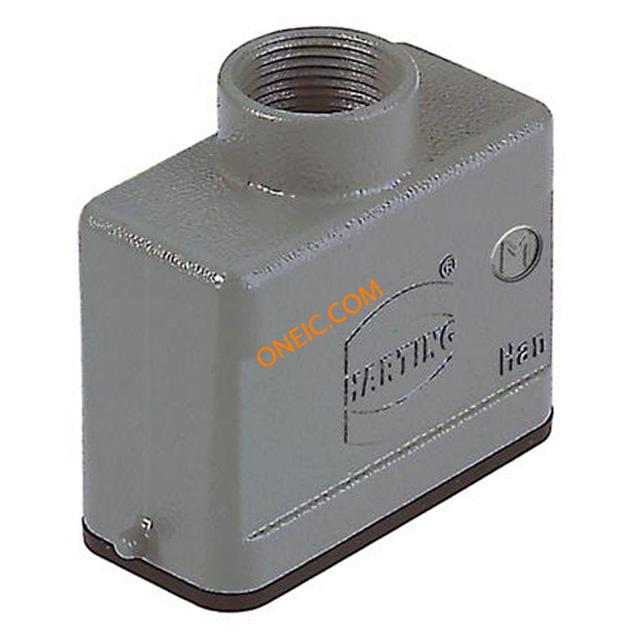

19200101440

制造商	HARTING Technology Group
描述	HAN A HOOD TOP LC TWO PEGS M20 Heavy Duty Power Connectors HOOD TOP ENTRY Industrial hood,top entry,M20,10A HANAHOODTOPENTRYLCTWOPEGSM20 Enclosure: for Han connectors; Han; size 10A; for cable; straight Han A Hoods: Han A Hood Top Entry LC two pegs M20 Harting Han A 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3075	零件号别名	010 019 019-20-010-1440 1440 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Compliant

电气参数

最大额定电流

10 A

机械参数

尺寸	10A	重量	0.08 kg
包装方式	Bulk	方向	straight
螺纹尺寸	M20	外壳颜色	Gray
衬套螺纹	M20	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	for cable
封装形式	size 10A	插入力	Female
锁定特性	for latch	壳体材料	Aluminum, Die Cast
包装数量	3	尺寸/外形	2.480" L x 1.161" W x 1.850" H (63.00mm x 29.50mm x 47.00mm)
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	3	类型	CONNECTORS
样式	Top Entry	系列	HAN-A
CAD图纸	3D CAD Model	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
