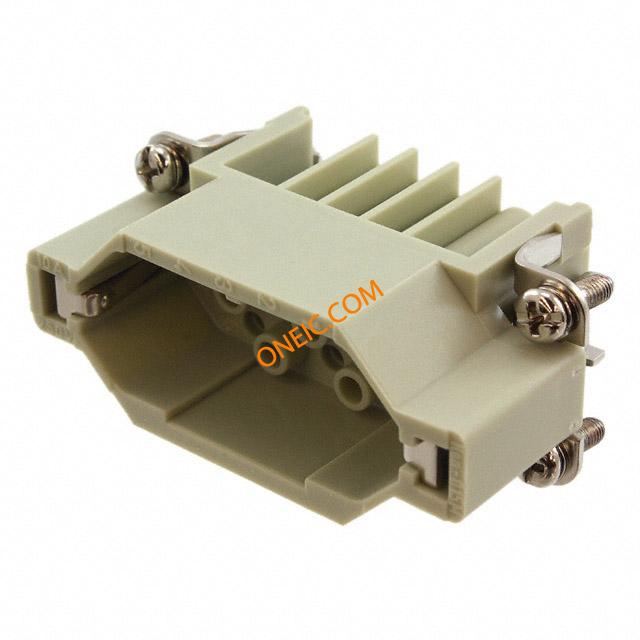

09210153001
| 制造商 | |
| 描述 | Conn Rectangular M 15 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN D 15P M CRIMP ORDER CONTACTS SEP HAN D 15 POS. M INSERT CRIMP Insert; 250 V; 10 A; Male; 15; RoHS Compliant; Han D; Han D AV Series Insert;250V;10A;Male;15;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:15; 15+PE; size 10A; w/o terminals Han D Male Insert: Han D 15 Position M Insert Crimp |
| 分类 |
商业参数
| 零件号别名 | 015 09 09-21-015-3001 21 3001 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 HB | ||
电气参数
| 测试电压 | 4kV | 额定电压 | 600V |
| 最大额定电流 | 10A | 最小输入电压 | 250VAC |
| 连接器类型 - 电压输入 | for HAN D terminals | ||
机械参数
| 尺寸 | 10A | 颜色 | Gray |
| 深度 | 33.7 | 高度 | 22.8 |
| 重量 | 0.03 kg | 包装方式 | Bulk |
| 端接方式 | Crimp | 重量（g） | 28.00000 |
| 触头类型 | Han® D | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 排数 | 3 |
| 封装形式 | size 10A | 插入力 | Male |
| 壳体材料 | Polyamide (PA), Nylon | 总长度 | 56.5 |
| 尺寸/外形 | 10A | 端接样式 | Crimp |
| 第一触头极性 | M | 触点数 | 15 |
| 位数 | 15+Ground | 线规或范围 - AWG | 26-14 |
| 第一连接器安装特征 | 15+PE | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 系列 | HAN-D, HAN-D AV | 产品子类型 | Inserts |
| 适配器系列 | Han D | 单元数量 | 1 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
09150006123
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 20 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 20 Han-Com(R) crimp gold contact,0.5sq.mm HANDMCrimpContactAWG20 Contact; male; 0.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
19200101540
Harting Technology Group
Connector Accessories 1 POS Hood Metal Heavy Duty Power Connectors HAN 10A M20 SIDE METAL HOOD HAN A HOOD SIDE LC 2 PEGS M20 Industrial hood,side entry,M20,10A HANAHOODSIDEENTRYLC2PEGSM20 Enclosure: for Han connectors; Han; size 10A; for cable; angled Han A hood side entry, size 10 A, LC 2 Pegs M20 Harting Han A 系列 侧入 电源连接器
09150006124
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN D MALE AWG 26-22 GOLD PLATED CRIMP HAN D M CRIMP CONT AU AWG26-22 HAN DM Crimp Contact AWG 26-22 Conn Contact M 1 POS Crimp ST HANDMCrimpContactAWG26-22 Contact; male; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Male Contact: Han D M Crimp Contact Au AWG 26-22 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006121
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 16 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 16 Han-Com(R) crimp gold contact,1.5sq.mm Connector,MaleContact Contact; male; 1.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 16 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006103
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 20 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AWG 20 Han-Com(R) crimp pin contact,0.5sq.mm 09150006103 Connector;MaleInsert;SilverPlated20AWGCrimpContact;HanDDModular Contact; male; 0.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 0,5 QMM-AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09210153101
Harting Technology Group
Conn Housing F 15 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN D 15P F CRIMP ORDER CONTACTS SEP HAN D 15 POS. F INSERT CRIMP Han(R) D 15P+E socket insert, 250Vac PowerConnectorInsert;Female;15 Connector: HAN; female; Han D; PIN:15; 15+PE; size 10A; 250V Han D Female Insert: Han D 15 Position F Insert Crimp Harting Han D 系列 2行 15针 插座 电源连接器
09150006105
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A MALE AWG 18 SILVER PLATED HAN D M CRIMP CONTACT AG Han-Com(R) crimp pin contact,0.75sq.mm CRIMP PIN, HAN, 0.75MM HanDMCrimpContactAg Contact; male; 0.75mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09200100301
Harting Technology Group
Connector Accessories Bulkhead Housing Heavy Duty Power Connectors HAN 10A BULKHEAD MNT 1 LEVER METAL HAN A BASE PANEL 1 LEVER Han(R) panel mount housing,Size 10A HOUSING,HAN10A,PANELMOUNT,SINGLELEVER Enclosure: for Han connectors; Han; size 10A; with lock; IP65 Han A Housings: Han A Base Panel 1 Lever Harting Han A 系列 隔板外壳
09150006101
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 16 SILVER PLATED CRIMP HAN D M CRIMP CONT AWG16 Han-Com(R) crimp pin contact,1.5sq.mm Connector;MaleInsert;SilverPlated16AWGCrimpContact;HanDDModular Contact; male; 1.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 1,5 QMM-AWG16 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

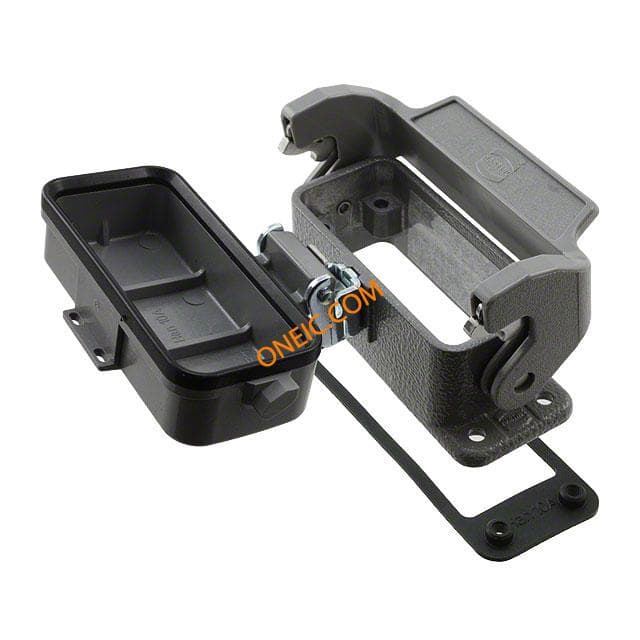

09200100321
Harting Technology Group
Connector Accessories Housing Bulkhead Mounting Heavy Duty Power Connectors PLS CVR HSG BULK HD HAN A BASE PANEL 1 LEVER LOCK Bulkhed Mtg Housing w/Thermo Plastic Cover BulkhedMtgHousingw/ThermoPlasticCover Enclosure: for Han connectors; Han; flange (4 holes), on panel Han A Housings: Han A Base Panel 1 Lever Lockable thermo Harting Han A 系列 电源连接器 , 表面安装
09150006106
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 14 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AG AWG 14 Han D Male Crimp Contact Ag AWG 14 Connector;Male Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;MaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; male; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag AWG 14 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

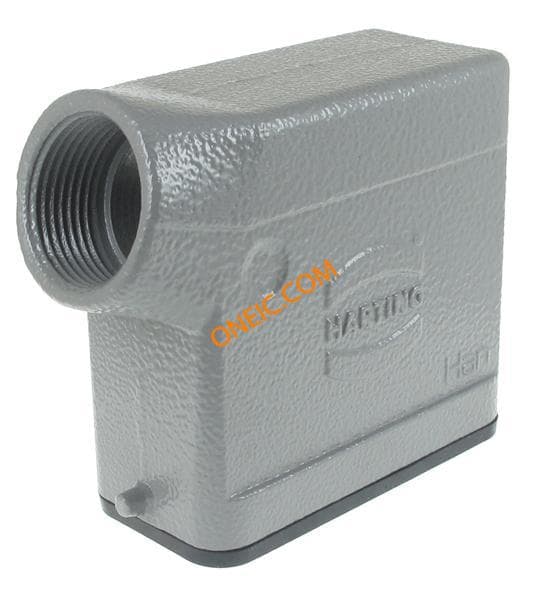

09200101541
Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 10A PG16 SIDE METAL HOOD HAN A HOOD SIDE LC 2 PEGS PG 16 Low type side entry hood,PG16 size 10A Han10AHood(SideEntry,SingleLeverPeg)PGThread Enclosure: for Han connectors; Han; size 10A; for cable; angled Han A Hoods: Han A Hood Side Entry LC 2 Pegs PG 16 Harting Han A 系列 侧入 电源连接器
09150006125
Harting
HAN D M CRIMP CONTACT AU Heavy Duty Power Connectors MALE CONTACT STD GOLD PLATED Han-Com(R) crimp gold contact,0.75sq.mm HeavyDutyPowerConnectorsMALECONTACTSTDGOLDPLATED Contact; male; 0.75mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
19200100546
Harting
HAN A HOOD SIDE HC 2 PEGS M25 Heavy Duty Power Connectors HAN 10A M25 SIDE METAL HOOD Enclosure: for Han connectors; Han; size 10A; for cable; high Han A Hoods: Han A Hood Side Entry HC 2 Pegs M25 Harting Han A 系列 侧入 电源连接器
09200100540
Harting

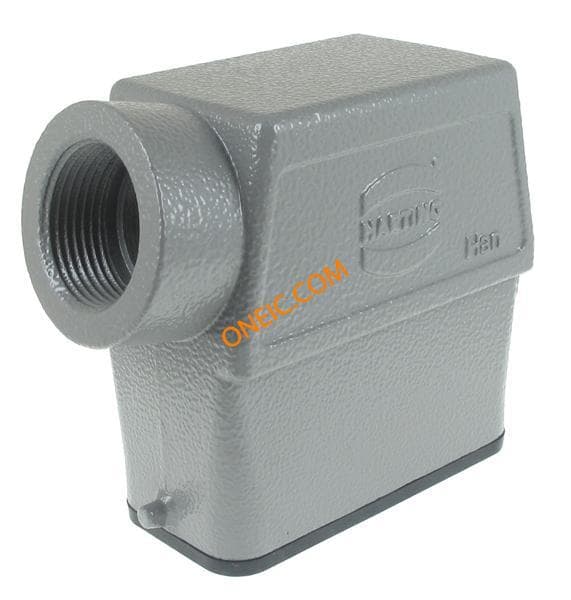

HAN A HOOD SIDE HC 2 PEGS PG 16 Heavy Duty Power Connectors HAN 10A PG16 SIDE METAL HOOD Han A Hoods: Han A Hood Side Entry HC 2 Pegs PG 16

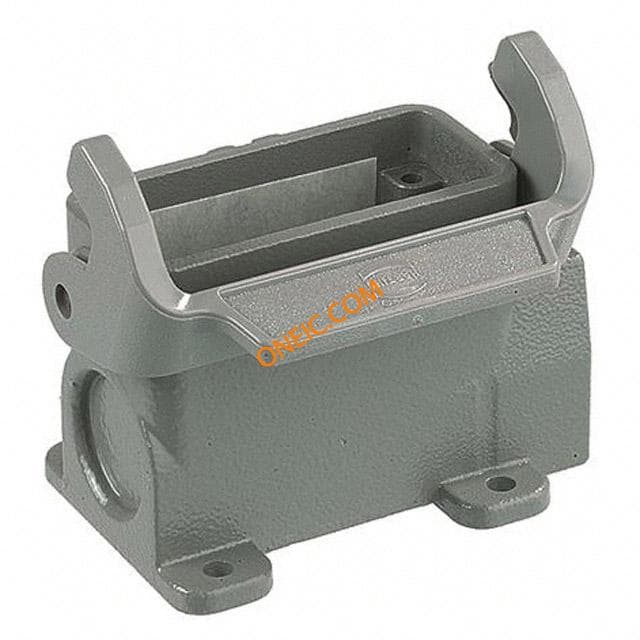

19200100251
Harting
HAN A BASE HC 1 LVR 1 M25 Heavy Duty Power Connectors SURFACE MOUNTING HSG 1 SIDE ENTRY HANABASESURFACEHC1LVR1ENTRYM25 Enclosure: for Han connectors; Han; size 10A; with lock; M25; IP65 Han A standard housing, size 10 A, base surface HC 1 side entry M25 Harting Han A 系列 电源连接器

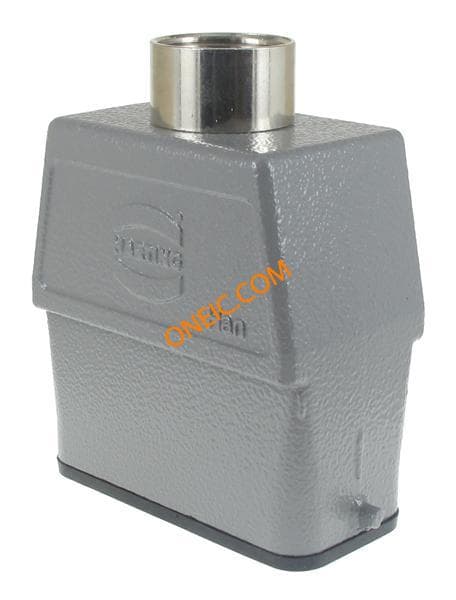

09200100440
