点击放大查看

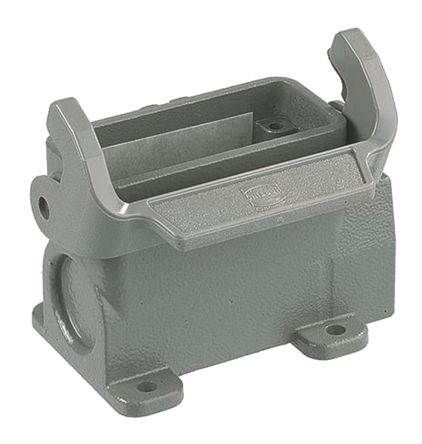

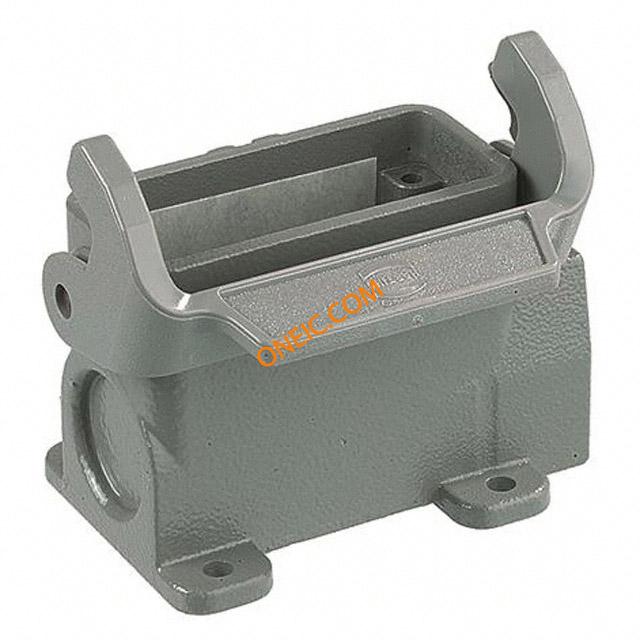

19200100251
| 制造商 | |
| 描述 | HAN A BASE HC 1 LVR 1 M25 Heavy Duty Power Connectors SURFACE MOUNTING HSG 1 SIDE ENTRY HANABASESURFACEHC1LVR1ENTRYM25 Enclosure: for Han connectors; Han; size 10A; with lock; M25; IP65 Han A standard housing, size 10 A, base surface HC 1 side entry M25 Harting Han A 系列 电源连接器 |
| 分类 |
商业参数
| 其他名称 | 1195-3071 | 零件号别名 | 010 019 019-20-010-0251 0251 20 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | 10A | 重量 | 0.15 kg |
| 包装方式 | Bulk | 螺纹尺寸 | M25 |
| 外壳颜色 | Gray | 衬套螺纹 | M25 |
| 连接器类型 | Base - Box Mount | 外壳涂层 | Powder Coated |
| 安装样式 | flange (4 holes), for panel mounting, for cable | 封装形式 | size 10A |
| 锁定特性 | with lock | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 2.929" L x 1.969" W x 2.047" H (74.40mm x 50.00mm x 52.00mm) | 端接样式 | Screw |
| 供应商器件封装 | for Han connectors | 外壳与棱镜材料 | aluminium alloy |
产品信息
| 类型 | CONNECTORS | 样式 | Side Entry |
| 系列 | Han A | 产品子类型 | Receptacle Housings |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | Housings |
| 适配器系列 | Han | 单元数量 | 1 |
| 基础产品编号 | 1920000 | 加载位置数 | 1 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
