点击放大查看

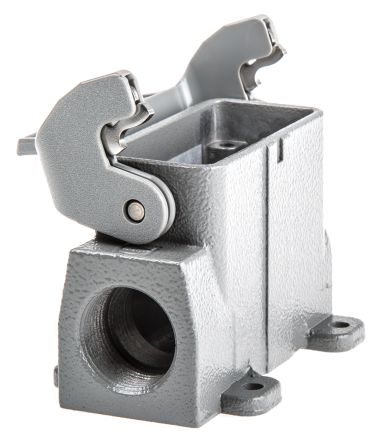

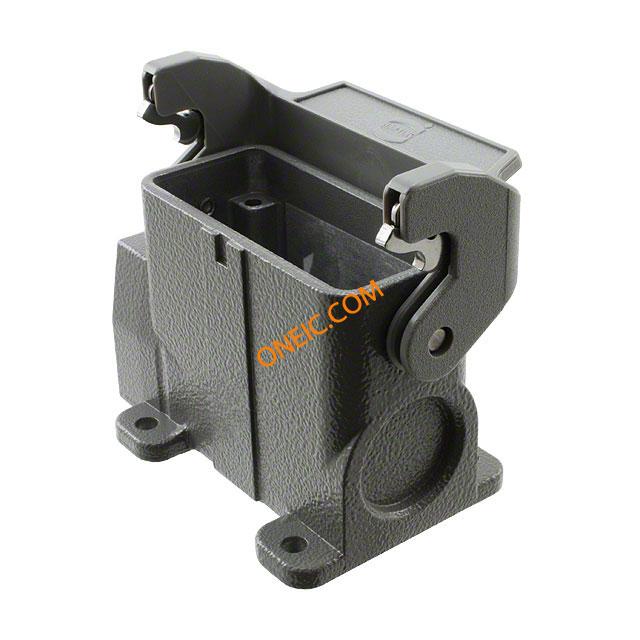

09200100251
| 制造商 | |
| 描述 | HAN A BASE SURFACE HC 1 LEVER Heavy Duty Power Connectors HAN 10A PG16 SURF MT 1 SIDE ENTRY Low type surface housing,PG16 size 10A HANABASESURFACEHC1LEVER1ENTRYPG Enclosure: for Han connectors; Han; size 10A; with lock; PG16 Han A Housings: Han A Base Surface HC 1 Lever 1 Entry PG Harting Han A 系列 1针 插座 电源连接器 , 表面安装 |
| 分类 |
商业参数
| 零件号别名 | 010 0251 09 09-20-010-0251 20 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 10 A | ||
机械参数
| 尺寸 | 10A | 重量 | 0.15 kg |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 重量（g） | 152.00000 | 外壳颜色 | Gray |
| 安装类型 | 表面安装 | 衬套螺纹 | PG16 |
| 连接器类型 | Base - Box Mount | 外壳涂层 | Powder Coated |
| 安装样式 | Vertical | 封装形式 | size 10A |
| 插入力 | Female | 锁定特性 | with lock |
| 壳体材料 | Aluminum, Die Cast | 包装数量 | 1 |
| 尺寸/外形 | 2.929" L x 1.969" W x 2.047" H (74.40mm x 50.00mm x 52.00mm) | 端接排数 | 电缆 |
| 端接样式 | Cable | 触点数 | 1 |
| 供应商器件封装 | for Han connectors | 外壳与棱镜材料 | aluminium alloy |
产品信息
| SPG | 1 | 类型 | CONNECTORS |
| 样式 | Side Entry | 系列 | Han Modular |
| 产品子类型 | Housings | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | Hood | 适配器系列 | Han |
| 单元数量 | 1 | 加载位置数 | 1 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
