点击放大查看

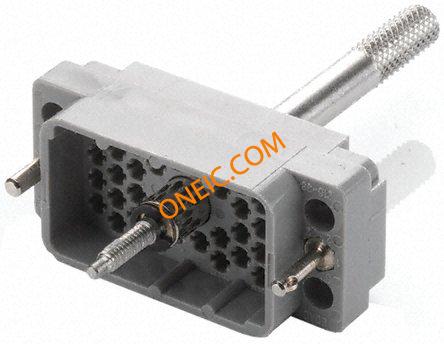

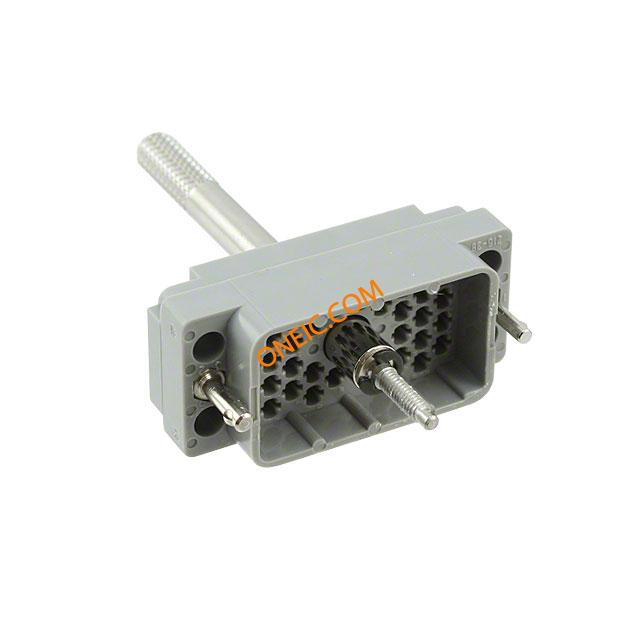

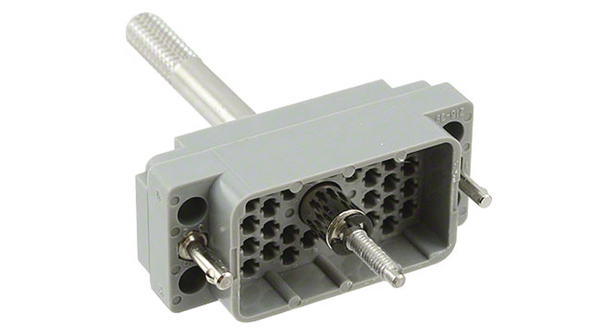

516-038-000-301
| 制造商 | |
| 描述 | CONN RACK & PANEL PLUG 38POS Standard EDAC516 cable plug, 38 way Rack & Panel Connectors 38P PLUG WITH SCREW Conn Rack and Panel PL 38 POS Crimp ST Panel Mount PLUG, 38WAY Plug; Connector: rectangular; 516; hermaphrodite; PIN:38; 2kV Plug housing Pitch3.81 mm / 6.6 mm Poles 38 For hermaphroditic contacts / Free hanging/cable mount 516, 516-038-000-301, Edac EDAC EDAC516 系列 38 路 公 直 RJ45-Rangierfeld, 镀金触点, 8.5A |
| 分类 |
商业参数
| 其他名称 | 151-1028 | 产品类别 | Rack & Panel Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 交流输入电压 | 2kV | 接触电阻 | :6mohm |
| 最大额定电流 | 8.5A | 连接器类型 - 电压输入 | with screw |
机械参数
| 颜色 | Gray | 深度 | 80.95mm |
| 间距 | 0.150" (3.81mm) | 宽度 | 22.25mm |
| 长度 | 50.8mm | 重量 | 1.1 |
| 包装方式 | Bulk | 基体材料 | polycarbonate |
| 安装类型 | Varies by Contact | 连接器类型 | Housing for Non Gendered Contacts |
| 接触镀层 | Gold | 排数 | 9 |
| 连接器样式 | Rack and Panel | 连接器用途 | Plug |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 25 | 尺寸/外形 | 50.8 x 22.25 x 80.95mm |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | :Pin | 触点数 | 38 |
| 接触件端接 | :- | 位数 | 38 |
| 外壳尺寸-插件 | :- | ||
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | Male | 系列 | EDAC516 |
| 产品特性 | Jackscrew, Guide Pin | 产品子类型 | Plug Connectors |
| 适配器系列 | 516 | 单元数量 | 1 |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
