点击放大查看
516-230-538
| 制造商 | |
| 描述 | COVER METAL RACK & PANEL 38POS Standard EDAC516 38 way metal cover Rack & Panel Connectors 38P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 38WAY Enclosure: for 516 series; 516; PIN:38; Mat: zinc alloy Metal cover, 516-230-538, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器 |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Rack & Panel Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 极数 | :38 | ||
机械参数
| 深度 | 22.23mm | 高度 | 39.78mm |
| 长度 | 56.03mm | 重量 | 0.096 |
| 材料（通用） | :Metal | 出线方向 | :90° |
| 基体材料 | zinc alloy | 连接器类型 | :Backshell |
| 连接器样式 | Rack and Panel | 本体材料 | :Zinc |
| 壳体材料 | Zinc | 包装数量 | 25 |
| 端接样式 | Screw | 连接器颜色 | :Grey |
| 触点数 | 38 | 位数 | 38 |
| 外壳尺寸-插件 | :38 | 供应商器件封装 | for 516 series |
产品信息
| SPG | 25 | 系列 | 516 |
| 产品子类型 | Receptacle Housing | 附件类型 | Backshell |
| 适配器系列 | 516 | 规格说明 | Metal, 38 Positions |
| 单元数量 | 1 | 适用产品/相关产品 | 516 Series |
环境参数
| 工作温度 | -65...125°C | ||
文档与媒体
相关型号
516-230-538
EDAC Inc
COVER METAL RACK & PANEL 38POS Standard EDAC516 38 way metal cover Rack & Panel Connectors 38P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 38WAY Enclosure: for 516 series; 516; PIN:38; Mat: zinc alloy Metal cover, 516-230-538, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器

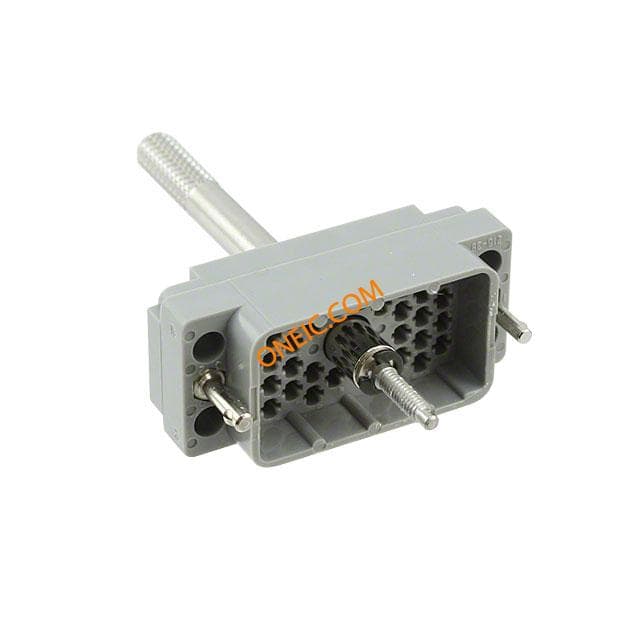

516-038-000-301
EDAC Inc
CONN RACK & PANEL PLUG 38POS Standard EDAC516 cable plug, 38 way Rack & Panel Connectors 38P PLUG WITH SCREW Conn Rack and Panel PL 38 POS Crimp ST Panel Mount PLUG, 38WAY Plug; Connector: rectangular; 516; hermaphrodite; PIN:38; 2kV Plug housing Pitch3.81 mm / 6.6 mm Poles 38 For hermaphroditic contacts / Free hanging/cable mount 516, 516-038-000-301, Edac EDAC EDAC516 系列 38 路 公 直 RJ45-Rangierfeld, 镀金触点, 8.5A

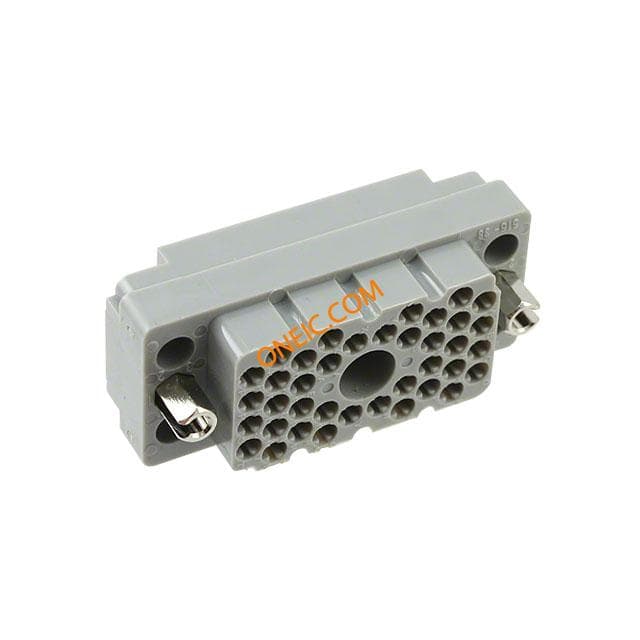

516-038-000-402
