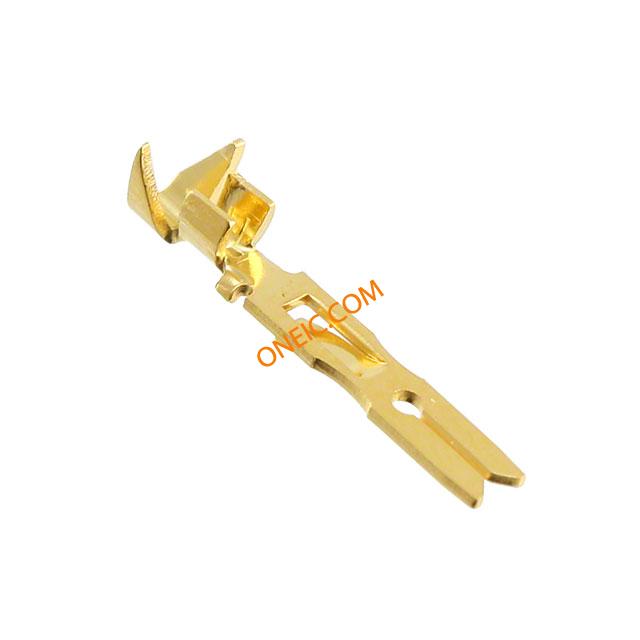

516-290-590
| 制造商 | |
| 描述 | CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 1,000 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10mΩ | 最大额定电流 | 8.5A |
机械参数
| 重量 | 3.23 | 包装方式 | Bulk |
| 导线线规 | 18-28 AWG | 端接方式 | Crimp |
| 触头类型 | :Signal | 安装类型 | Straight |
| 插针或插孔 | Non-Gendered | 连接器类型 | hermaphrodite |
| 接触镀层 | Gold | 安装样式 | for cable |
| 封装形式 | in bulk | 壳体镀层 | :Gold |
| 触头材料 | Phosphor Bronze | 包装数量 | 1000 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | :- | 接触件端接 | Crimp |
| 线规或范围 - AWG | :28AWG | 触点材料 - 镀层 | nickel plated, gold plated |
产品信息
| SPG | 1000 | 类型 | Signal |
| 连接器性别 | Female | 系列 | 516 |
| 产品子类型 | Contacts | 适配器系列 | 516 |
| 单元数量 | 1 | 工具类型/特性 | 516-280-201 |
| 适用产品/相关产品 | :415/438 Series Connectors | ||
环境参数
| 工作温度 | +125°C | ||
文档与媒体
相关型号
516-280-201
EDAC
Crimpers CRIMP TOOL CRIMP TOOL RACK & PANEL SERIES Contact Hand Crimp Tool CRIMP TOOL Tool: for crimping; 516; Application: terminals Crimping tool, 516-280-201, Edac EDAC Crimp 压接工具
516-280-300
EDAC
Hand Tools EXTRACTION TOOL EXTRACTION TOOL RACK & PANEL Contact Ejection Tool EXTRACTION TOOL Connectors Hardware / Acessories Contact Ejection Tool Ejection tool, 516-280-300, Edac EDAC 516 系列 拔插件工具 , 适用于压接
516-280-400
EDAC
Hand Tools Insertion Tool for Crimp Contacts INSERTION TOOL Crimp Contact Insertion Tool INSERTION TOOL, 516 SERIES Connectors Hardware / Acessories Crimpt Contect Insertion Tool Insertion tool, 516-280-400, Edac EDAC 516 系列 插入工具 , 适用于压接触芯

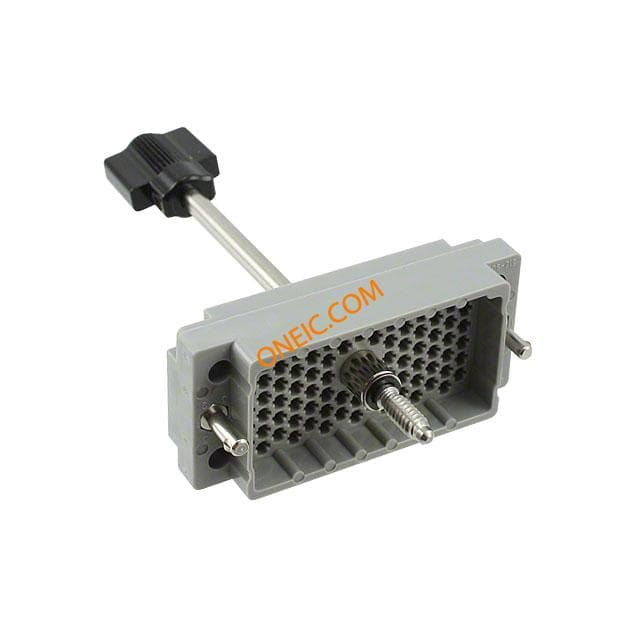

516-090-000-301
EDAC Inc
CONN RACK & PANEL PLUG 90POS Standard EDAC516 cable plug, 90 way Rack & Panel Connectors 90P PLUG WITH SCREW Conn Rack and Panel PL 90 POS Crimp ST Panel Mount Plug; Connector: rectangular; 516; hermaphrodite; PIN:90; 2kV Plug housing Pitch3.81 mm / 6.6 mm Poles 90 For hermaphroditic contacts / Free hanging/cable mount 516, 516-090-000-301, Edac EDAC EDAC516 系列 3.81mm 90 路 公 直 RJ45-Rangierfeld, 镀金触点, 8.5A

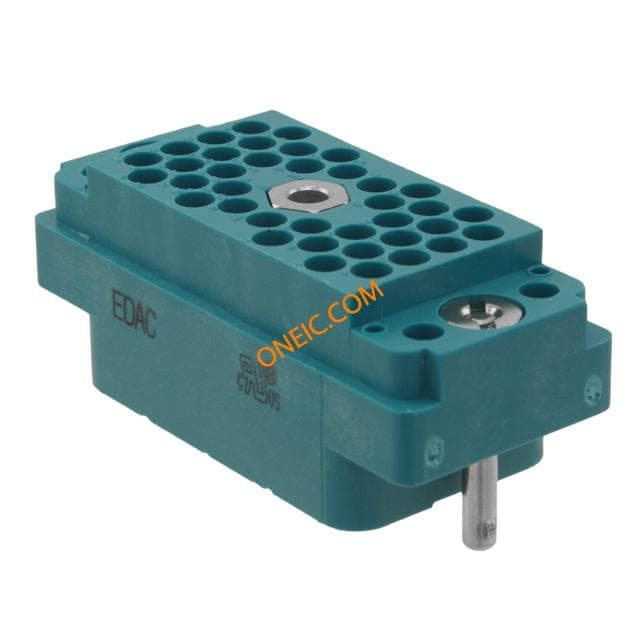

516-038-000-502
EDAC Inc
CONN RCPT 38POS RACK AND PANEL Rack & Panel Connectors 38P PLUG W/SCREW

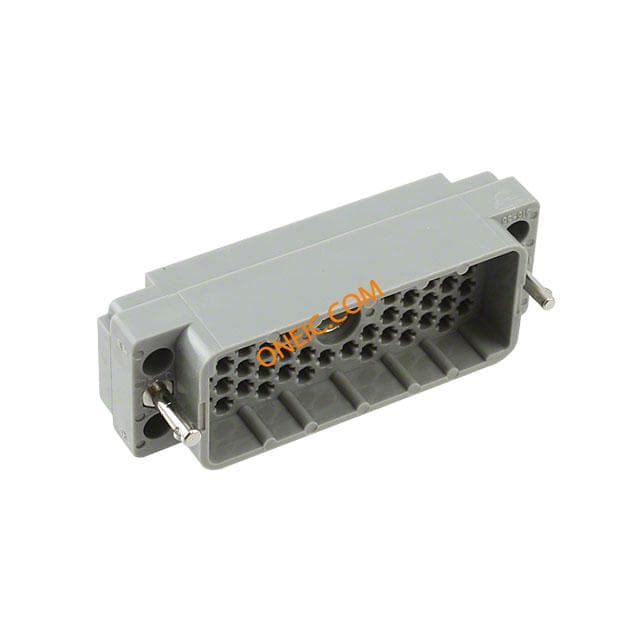

516-056-000-302
EDAC Inc
CONN RACK & PANEL PLUG 56POS Standard EDAC516 56 way panel plug,8.5A Rack & Panel Connectors 56P PLUG WITH NUT Conn Rack and Panel PL 56 POS Crimp ST Panel Mount PLUG, WITH LOCK NUT, 56 WAY RACK & PANEL CONNECTOR, PLUG, 56POS Plug; Connector: rectangular; 516; hermaphrodite; PIN:56; 2kV Panel plug housing Pitch3.81 mm / 6.6 mm Poles 56 for panel mount / For hermaphroditic contacts 516, 516-056-000-302, Edac

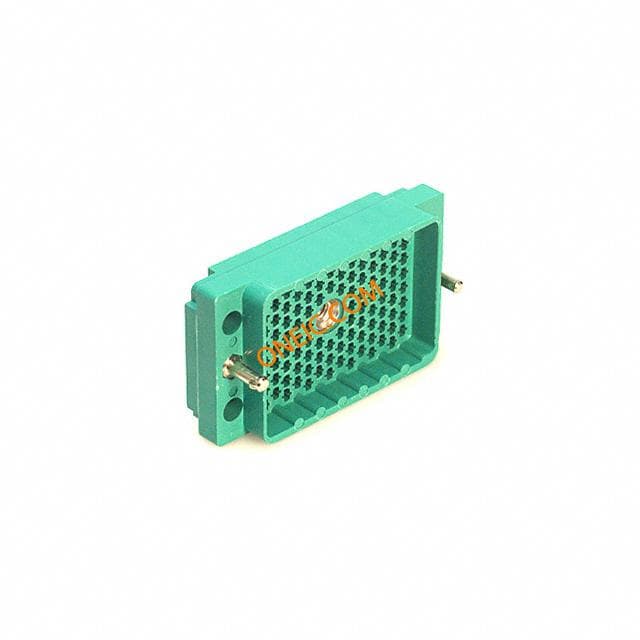

516-120-000-102
EDAC Inc
CONN RACK & PANEL PLUG 120POS Rack & Panel Connectors 120P PLUG WITH NUT Conn Rack and Panel PL 120 POS Crimp ST Panel Mount
516-038-000-401
EDAC Inc
CONN RACK & PANEL RCPT 38POS Std EDAC516 cable receptacle, 38 way Rack & Panel Connectors 38P RECEPTACLE WITH SCREW Conn Rack and Panel RCP 38 POS Crimp ST Panel Mount RACK & PANEL CONNECTOR, RECEPTACLE, 38POS Receptacle housing Pitch3.81 mm / 6.6 mm Poles 38 For hermaphroditic contacts / Free hanging/cable mount 516, 516-038-000-401, Edac
516-056-000-101
EDAC Inc
CONN PLUG 56POS RACK & PANEL Rack & Panel Connectors 56P PLUG Conn Rack and Panel PL 56 POS Crimp ST Panel Mount RACK & PANEL CONNECTOR, PLUG, 56POS

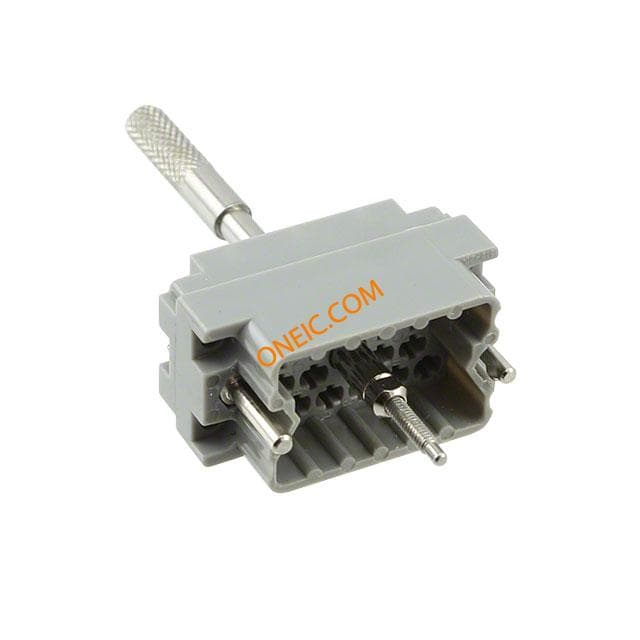

516-020-000-301
EDAC Inc
CONN RACK & PANEL PLUG 20POS Standard EDAC516 cable plug, 20 way Rack & Panel Connectors 20P PLUG WITH SCREW Conn Rack and Panel PL 20 POS Crimp ST Panel Mount Plug; Connector: rectangular; 516; hermaphrodite; PIN:20; 2kV Plug housing Pitch3.3 mm / 3.81 mm Poles 20 For hermaphroditic contacts / Free hanging/cable mount 516, 516-020-000-301, Edac
516-038-000-341
EDAC Inc
CONN PLUG 38POS RACK & PANEL Rack & Panel Connectors 38P PLUG PLASTIC CVR SIDE ENTRY
516-056-000-331
EDAC Inc
CONN PLUG 56POS RACK & PANEL Rack & Panel Connectors 56P PLUG PLASTIC CVR TOP ENTRY

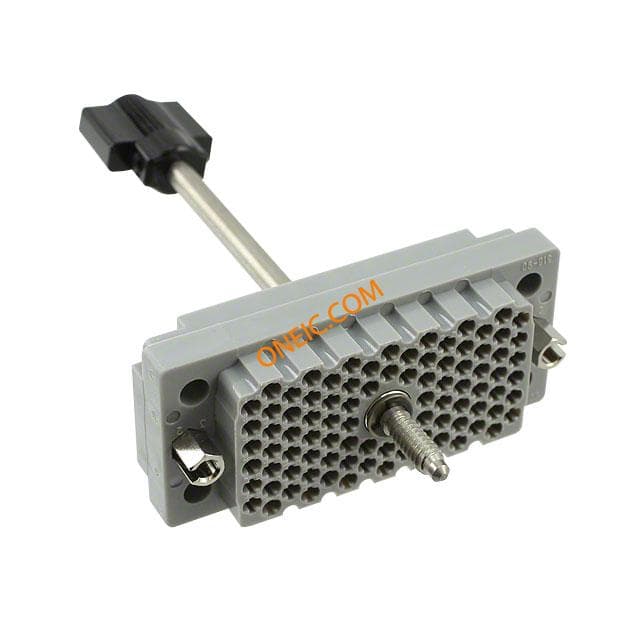

516-090-000-401
