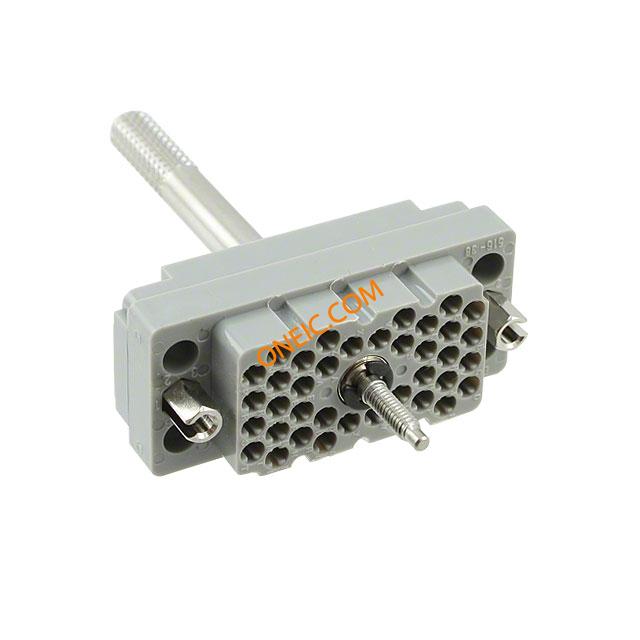

516-038-000-401
| 制造商 | |
| 描述 | CONN RACK & PANEL RCPT 38POS Std EDAC516 cable receptacle, 38 way Rack & Panel Connectors 38P RECEPTACLE WITH SCREW Conn Rack and Panel RCP 38 POS Crimp ST Panel Mount RACK & PANEL CONNECTOR, RECEPTACLE, 38POS Receptacle housing Pitch3.81 mm / 6.6 mm Poles 38 For hermaphroditic contacts / Free hanging/cable mount 516, 516-038-000-401, Edac |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 25 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 8.5A | ||
机械参数
| 颜色 | Gray | 深度 | 80.95mm |
| 间距 | 0.150" (3.81mm) | 宽度 | 22.25mm |
| 长度 | 50.8mm | 重量 | 0.032 |
| 包装方式 | Bulk | 安装类型 | Varies by Contact |
| 连接器类型 | Housing for Non Gendered Contacts | 接触镀层 | Gold |
| 排数 | 9 | 连接器样式 | Rack and Panel |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 尺寸/外形 | 50.8 x 22.25 x 80.95mm |
| 端接样式 | Screw | 第一触头极性 | :- |
| 触点数 | 38 | 接触件端接 | :- |
| 位数 | 38 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | EDAC516 | 产品特性 | Jackscrew, Guide Pin |
| 产品子类型 | Receptacle Connectors | ||
环境参数
| 工作温度 | +105°C | ||
