516-056-000-302
| 制造商 | |

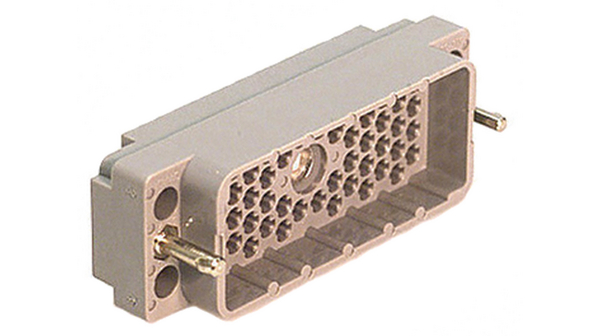

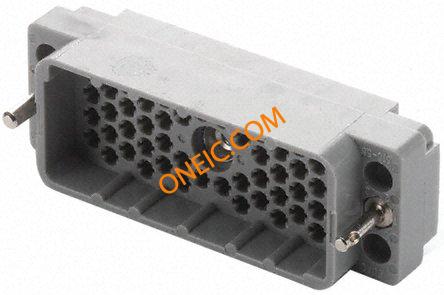

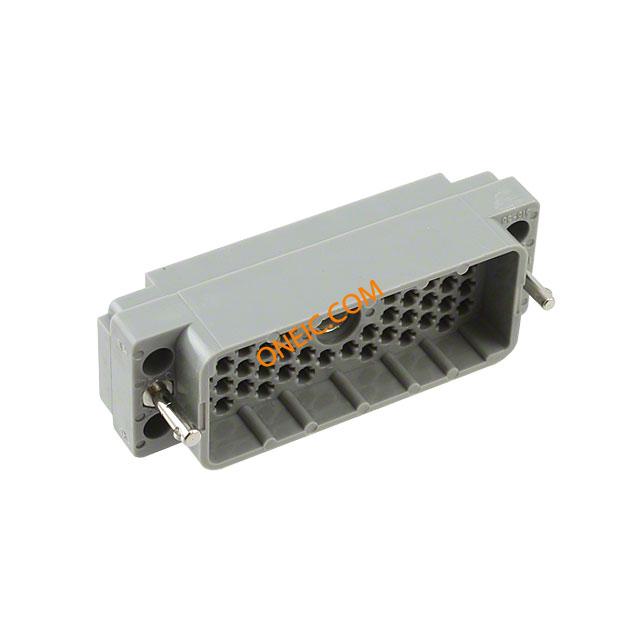

| 描述 | CONN RACK & PANEL PLUG 56POS Standard EDAC516 56 way panel plug,8.5A Rack & Panel Connectors 56P PLUG WITH NUT Conn Rack and Panel PL 56 POS Crimp ST Panel Mount PLUG, WITH LOCK NUT, 56 WAY RACK & PANEL CONNECTOR, PLUG, 56POS Plug; Connector: rectangular; 516; hermaphrodite; PIN:56; 2kV Panel plug housing Pitch3.81 mm / 6.6 mm Poles 56 for panel mount / For hermaphroditic contacts 516, 516-056-000-302, Edac |
| 分类 |
商业参数
| 其他名称 | 151-1033 | 产品类别 | Rack & Panel Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 交流输入电压 | 2kV | 最大额定电流 | 8.5A |
| 连接器类型 - 电压输入 | with threaded hole | ||
机械参数
| 颜色 | Gray | 深度 | 80.95mm |

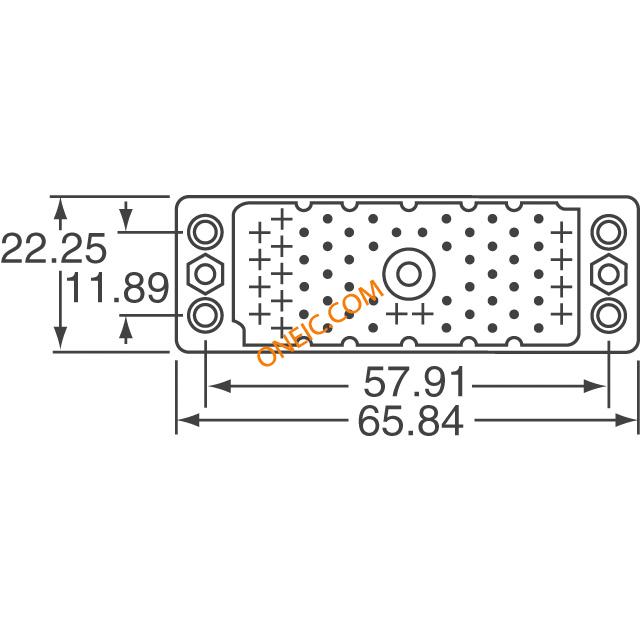

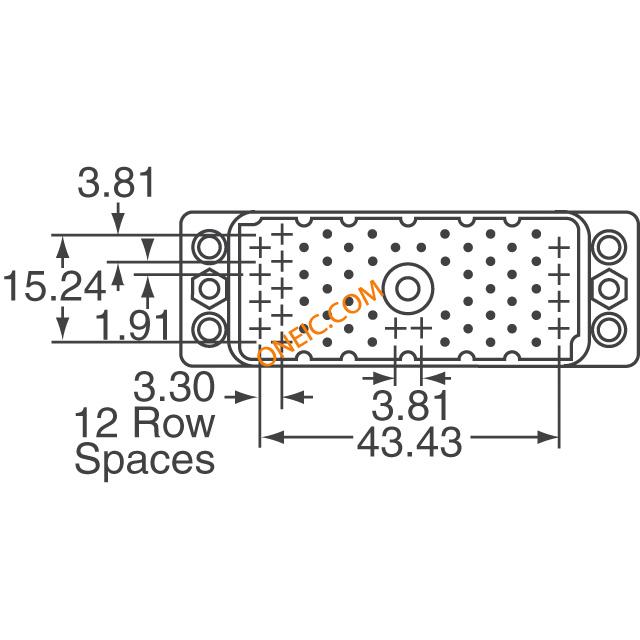

| 间距 | 0.150" (3.81mm) | 宽度 | 22.25mm |
| 长度 | 65.84mm | 重量 | 0.018 |
| 包装方式 | Bulk | 基体材料 | polycarbonate |
| 安装类型 | Varies by Contact | 连接器类型 | Housing for Non Gendered Contacts |
| 接触镀层 | Gold | 排数 | 9 |
| 连接器样式 | Rack and Panel | 连接器用途 | Plug |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 25 | 尺寸/外形 | 65.84 x 22.25 x 80.95mm |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | :Pin | 触点数 | 56 |
| 接触件端接 | :- | 位数 | 56 |
| 外壳尺寸-插件 | :- | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | Male | 系列 | EDAC516 |
| 产品特性 | Jackscrew Socket, Mating Guide | 产品子类型 | Plug Connectors |
| 适配器系列 | 516 | 单元数量 | 1 |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
516-280-400
EDAC
Hand Tools Insertion Tool for Crimp Contacts INSERTION TOOL Crimp Contact Insertion Tool INSERTION TOOL, 516 SERIES Connectors Hardware / Acessories Crimpt Contect Insertion Tool Insertion tool, 516-280-400, Edac EDAC 516 系列 插入工具 , 适用于压接触芯
516-290-590
EDAC Inc
CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-520
EDAC Inc
CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A
516-290-500
EDAC Inc
CONTACT RACK & PANEL SOLDER EYE Std EDAC516 solder tag terminal,8.5A Rack & Panel Connectors CONTACT SOLDER EYELET Contact SKT Solder Lug ST Cable Mount CONTACT, SOLDER, PHOSPHOR BRONZE CONTACT, EYELET PK100 Contact; hermaphrodite; 516; nickel plated, gold plated; in bulk EDAC 焊片, 镀金镀镍 磷铜触芯
516-290-541
EDAC Inc
CONTACT RACK & PANEL WIREWRAP Std EDAC516 wire wrap terminal,8.5A Rack & Panel Connectors CONTACT WIREWRAP Contact SKT Wire Wrap ST Cable Mount CONTACT, WIRE WRAP, PHOSPHOR BRONZE CONTACT, MINIWRAP, PK100 EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-591
EDAC Inc
CONN CRIMP CONTACT Rack & Panel Connectors Crimp Contacts CONTACT, PIN, 28-18AWG, CRIMP Crimp contact 18...28 AWG, 516-290-591, Edac
516-290-540
EDAC Inc
CONN CONTACT SHORT WIRE WRAP Rack & Panel Connectors 516 SHORT CONTACT WIRE WRAP
516-290-542
EDAC Inc
CONN CONTACT LONG WIRE WRAP Rack & Panel Connectors METAL COVER SE Contact SKT Wire Wrap ST Cable Mount
516-056-000-302
EDAC Inc
CONN RACK & PANEL PLUG 56POS Standard EDAC516 56 way panel plug,8.5A Rack & Panel Connectors 56P PLUG WITH NUT Conn Rack and Panel PL 56 POS Crimp ST Panel Mount PLUG, WITH LOCK NUT, 56 WAY RACK & PANEL CONNECTOR, PLUG, 56POS Plug; Connector: rectangular; 516; hermaphrodite; PIN:56; 2kV Panel plug housing Pitch3.81 mm / 6.6 mm Poles 56 for panel mount / For hermaphroditic contacts 516, 516-056-000-302, Edac
516-056-000-401
EDAC Inc

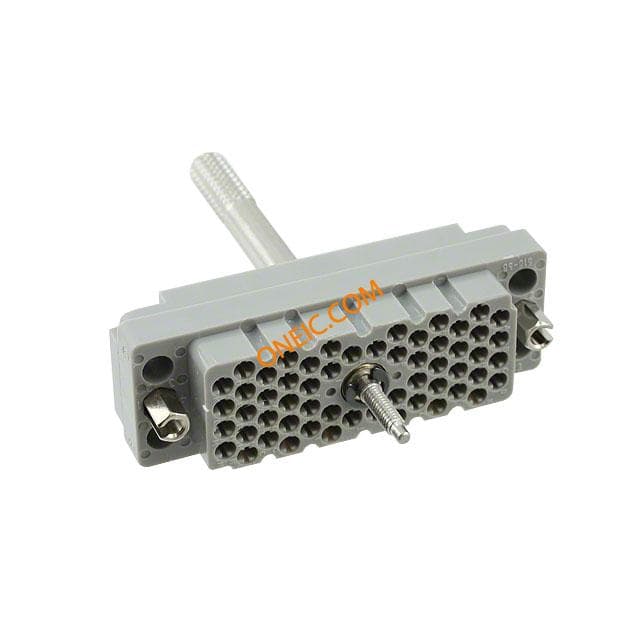

CONN RACK & PANEL RCPT 56POS Std EDAC516 cable receptacle, 56 way Rack & Panel Connectors 56P RECEPTACLE WITH SCREW Conn Rack and Panel RCP 56 POS Crimp ST Panel Mount RECEPTACLE, WITH SCREW, 56 WAY RACK & PANEL CONNECTOR, RECEPTACLE, 56POS Socket; Connector: rectangular; 516; hermaphrodite; PIN:56; 2kV Receptacle housing Pitch3.81 mm / 6.6 mm Poles 56 For hermaphroditic contacts / Free hanging/cable mount 516, 516-056-000-401, Edac
