点击放大查看
SA3347
| 制造商 | Bulgin |
| 描述 | Standard Circular Contacts CRIMP SKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A 22-26AWG CRMP 1=10PC 400 Series 5A Female Circular Connector Contact, Crimp,Wire size 26 to 22AWG Contact SKT Crimp ST Cable Mount CIRCULAR CONTACT, SKT, 26-22AWG, CRIMP Contacts,CrimpSocket,4&8Pole Crimp contact, female, for 4, 6 and 8-pole, SA3347, Bulgin Bulgin 400 系列 5A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格 |
| 分类 |
商业参数
| 其他名称 | 708-1088 | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 125 V ac/dc | 接触电阻 | 5mΩ |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0.001001 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 线规或范围 - AWG | :26AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 400 |
| 适用产品/相关产品 | :Buccaneer 400 Series Circular Connectors | ||
环境参数
| 工作温度 | +80°C | ||
文档与媒体
相关型号
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin

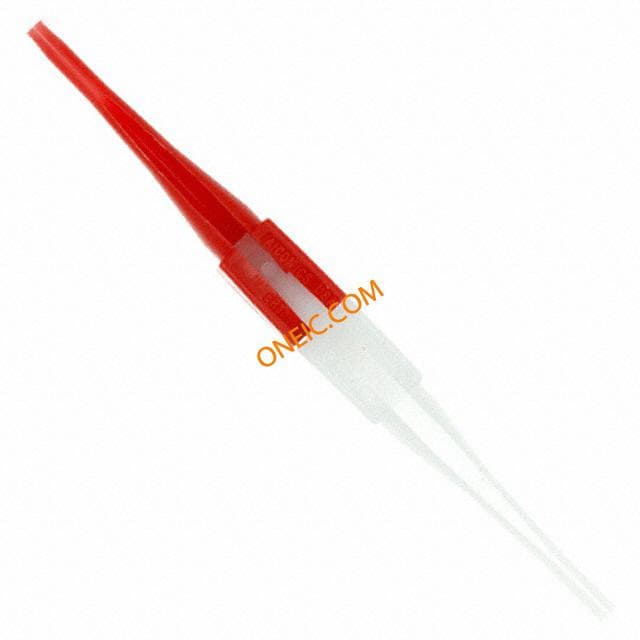

13027/1
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERTION FOR 5A CONT RED Insertion tool for 5A contacts Insertion/Extraction Tool 3, 9,12 And 25 Pole Crimp Contacts INSERTION/ EXTRACTION TOOL TIP, 12 POLE Insertion/ExtractionTool,CableSupport;25WayContacts;Buccaneer Tool: for demounting of terminals; for PX0794/95 connectors Assembly/disassembly tool for contacts SA3348/3347, 13027/1, Bulgin Bulgin 400 系列 插入工具
14025/5AMP
Bulgin
Crimpers POSITIONER 5A RED TOOL CRIMP POSITIONER FOR 5A Tool; Positioner; 12 pole Connector Accessories Positioner 5A Red 12 POS POSITIONER, 22-26AWG Tool,Positioner,12pole Limit stop for contacts SA3348/3347, 14025/5AMP, Bulgin
PX0794/S
Bulgin
Standard Circular Connector 12 POLE FLEX SKT CRIMP/SOLDER CONN HSNG PLUG 12POS CABLE SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port SOCKET, FREE, 12WAY CONN HSNG PLUG 12POS INLINE SKT Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点
PX0410/04S/6570
Bulgin
Standard Circular Connector 4 POLE FLEX SKT BLK CBL 6.5-7.0MM CONN HSNG PLUG CABLE 4POS SOCKET
PX0708/S/12
Bulgin
Standard Circular Connector 12 P REAR PNL MNT SOCKET/CRIMP/SOLDER CONN HSNG RCPT 12POS JAM NUT SKT

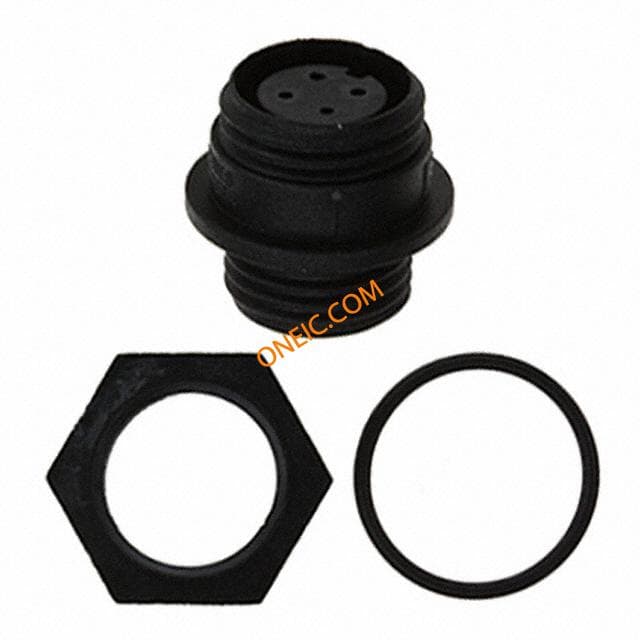

PX0412/04S
Bulgin
Standard Circular Connector 4 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 4POS SKT 4 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CIRCULAR, RECEPTACLE, 4 WAY, PANEL Connector;Socket;4;22to26AWG;CrimpandSolder;5A;125VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:4; w/o terminals; IP68 appliance socket Buccaneer 400, 4-pole 4, PX0412/04S, Bulgin Bulgin Buccaneer 系列 4路 面板安装 直向 连接器 , 母触点

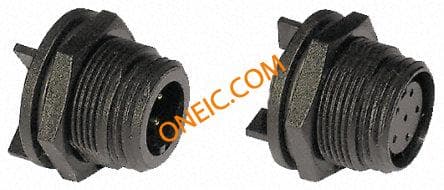

PX0413/08S
Bulgin
Standard Circular Connector 8 POLE CHAS R/MT SKT CONN HSNG RCPT JAM NUT 8POS SKT 8 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 8 POS ST Panel Mount 8 Terminal 1 Port SOCKET, CHASSIS, 8 WAY 400SERIESBUCCANEERSEALEDREARPANELMOUNTCONNECTORPLUG8SOCKET5AMPS Bulgin Buccaneer 系列 8路 面板安装 直向 连接器 , 母触点
PX0413/06S
Bulgin
Standard Circular Connector 6 POLE CHAS R/MT SKT CONN HSNG RCPT JAM NUT 6POS SKT 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, CHASSIS, 6 WAY 400SERIESBUCCANEERSEALEDREARPANELMOUNTCONNECTORPLUG6SOCKET5AMPS Bulgin Buccaneer 系列 6路 面板安装 直向 连接器 , 母触点

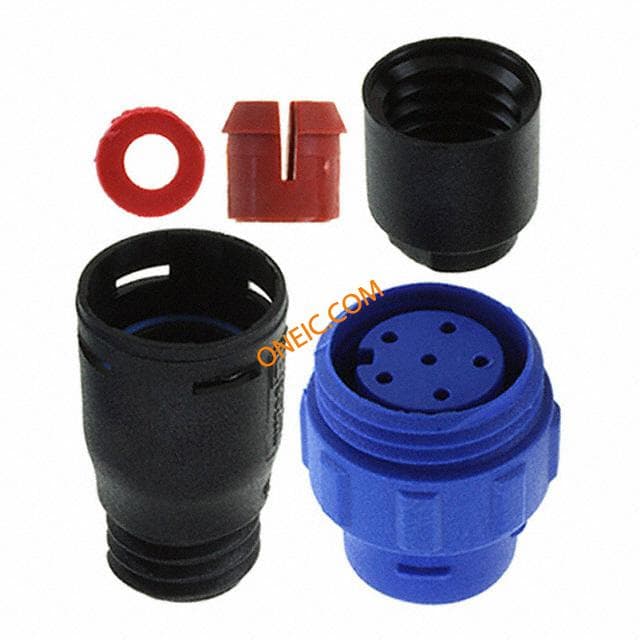

PX0411/06S/4550
