点击放大查看

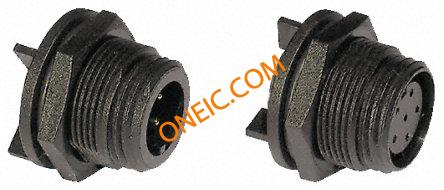

PX0413/06S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 6 POLE CHAS R/MT SKT CONN HSNG RCPT JAM NUT 6POS SKT 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, CHASSIS, 6 WAY 400SERIESBUCCANEERSEALEDREARPANELMOUNTCONNECTORPLUG6SOCKET5AMPS Bulgin Buccaneer 系列 6路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 最大额定电流 | 5A |
机械参数
| 重量 | 0.012 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 主要材料 | Sealed | 第一触头极性 | Female |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :7mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelSocket |
| 连接器性别 | :Socket | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号
SA3347/1
Bulgin
Standard Circular Contacts SOLDERSKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A SLD 22-26AWG 1=10PC 400 Series 5A Female Circular Connector Contact, Solder,Wire size 26 to 22AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 22-26AWG, PK10 Contacts,Solder,Socket,for4,6,8Pole400SeriesBuccaneerConnectors Contact; female; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 4, 6 and 8-pole, SA3347/1, Bulgin Bulgin 400 系列 5A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格

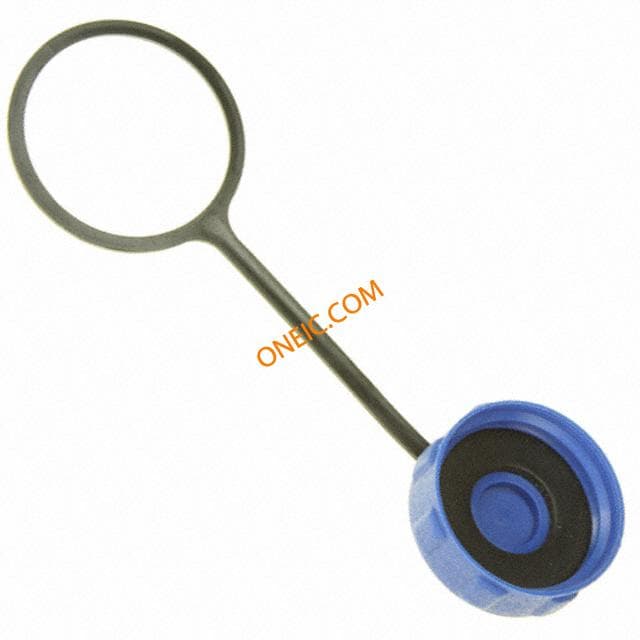

PX0484
Bulgin
Standard Circular Connector Sealing Cap CONN CAP SEALING FOR PX0413 Sealing cap Type 4 Micro Buccaneer Connector Accessories Sealing Cap SEALING CAP, POLYAMIDE SealingCap;PCBandrearpanelmount;IP68;400Series
.JPG&w=3840&q=75)
SA3348/1
Bulgin
Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格
SA3347
Bulgin
Standard Circular Contacts CRIMP SKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A 22-26AWG CRMP 1=10PC 400 Series 5A Female Circular Connector Contact, Crimp,Wire size 26 to 22AWG Contact SKT Crimp ST Cable Mount CIRCULAR CONTACT, SKT, 26-22AWG, CRIMP Contacts,CrimpSocket,4&8Pole Crimp contact, female, for 4, 6 and 8-pole, SA3347, Bulgin Bulgin 400 系列 5A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
SA3348
Bulgin
Standard Circular Contacts CRIMP PIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A 22-26AWG CRMP 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 26 to 22AWG Contact PIN Crimp ST Cable Mount CIRCULAR CONTACT, PIN, 26-22 AWG, CRIMP Contacts,CrimpPin,4&8Pole Crimp contact, male, for 4, 6 and 8-pole, SA3348, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格

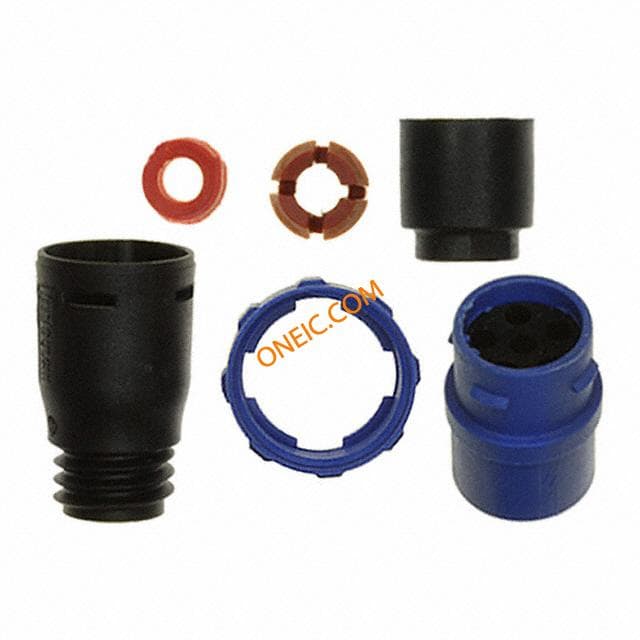

PX0410/06P/4550
Bulgin
Standard Circular Connector 6 POLE FLEX PLUG CONN HSNG PLUG CABLE 6POS PIN 6 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 6 POS Crimp ST Cable Mount 6 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 6 WAY, CABLE CONN HSNG PLUG INLINE 6POS PIN Connector,Cable;Plug;6;46mm(Max.);5A;125VAC/VDC;5Milliohms(Max.) Cable plug Buccaneer 400, 6-pole 6, PX0410/06P/4550, Bulgin Bulgin Buccaneer 系列 6路 电缆安装 直向 连接器 , 公触点
PX0410/06P/6570
Bulgin
Standard Circular Connector 6 POLE FLEX PLUG 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 6POS PIN
PX0410/06P/3035
Bulgin
Standard Circular Connector 6 POLE FLEX PLUG 3.0-3.5MM LIGHT GREY CONN HSNG PLUG CABLE 6POS PIN
PX0410/06P/5055
Bulgin
Standard Circular Connector 6 POLE FLEX PLUG 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 6POS PIN

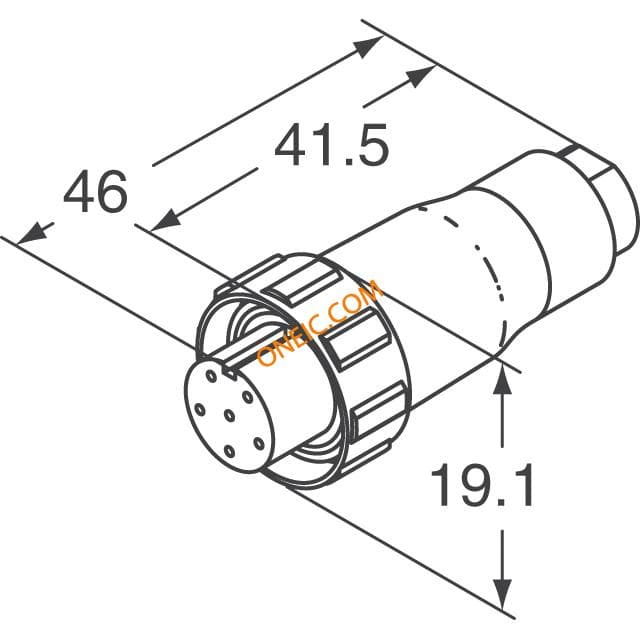

PX0410/06P/4045
