商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Receptacle | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 位数 | 4 |
| 外壳材料及表面处理 | Polyamide | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | Buccaneer 400 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | ||
文档与媒体
相关型号
SA3347/1
Bulgin
Standard Circular Contacts SOLDERSKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A SLD 22-26AWG 1=10PC 400 Series 5A Female Circular Connector Contact, Solder,Wire size 26 to 22AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 22-26AWG, PK10 Contacts,Solder,Socket,for4,6,8Pole400SeriesBuccaneerConnectors Contact; female; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 4, 6 and 8-pole, SA3347/1, Bulgin Bulgin 400 系列 5A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
PX0410/04P/4550
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG CONN HSNG PLUG CABLE 4POS PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port PLUG, FREE, 4WAY CONN HSNG PLUG INLINE 4POS PIN Connector;Plug;4;46mm(Max.);5A;125VAC/VDC;5Milliohms(Max.) Connector: circular; plug; male; PIN:4; w/o terminals; for cable Cable plug Buccaneer 400, 4-pole 4, PX0410/04P/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 公触点

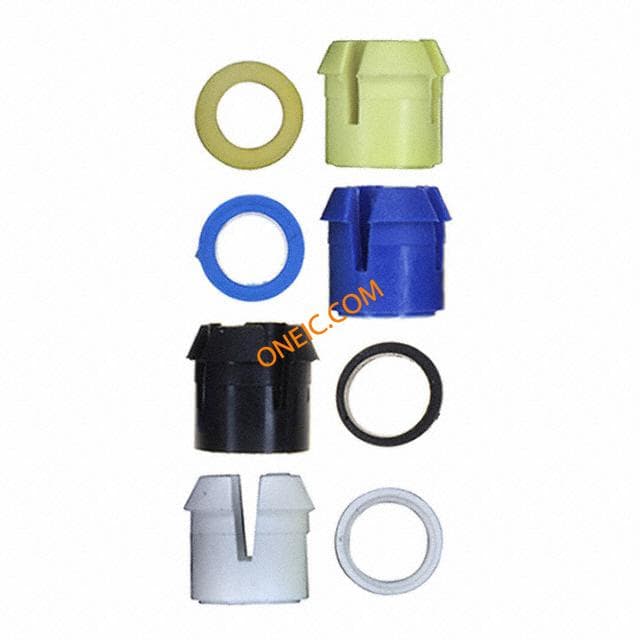

PX0483
Bulgin
Standard Circular Connector GLAND PACK CONN GLAND 5.0-7.0MM O/D CABLES Buccaneer 400 gland pack for 5-7mm cable Connector Accessories Gland Pack CABLE GLAND PACK, PACK OF 4, 5 TO 7MM CABLE GLAND (CLAMP) GlandPack;Connector;Cablesfrom5.0mmto7.0mmDia.;400Series Gaskets set; Buccaneer 400; IP68; 5÷7mm; Application: PX04.. Set 4 Pairs Glands & Collets for ø 5...7 mm, PX0483, Bulgin Bulgin 电缆固定头 , -40°C至+80°C

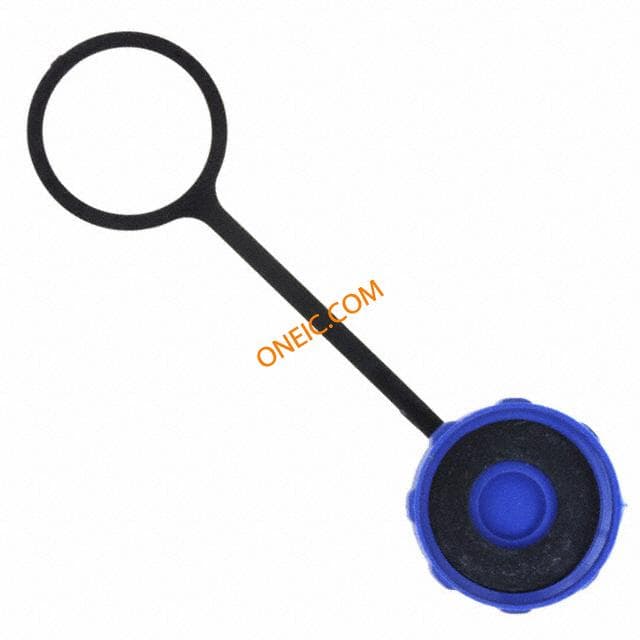

PX0480/1
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR PX0411 Buccaneer 400 inline coupler sealing cap Connector Accessories Sealing Cap SealingCap,Connector;Inlineflexcableconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for coupling plugs/sockets, PX0480/1, Bulgin
SA3347
Bulgin
Standard Circular Contacts CRIMP SKT 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT SKT 5A 22-26AWG CRMP 1=10PC 400 Series 5A Female Circular Connector Contact, Crimp,Wire size 26 to 22AWG Contact SKT Crimp ST Cable Mount CIRCULAR CONTACT, SKT, 26-22AWG, CRIMP Contacts,CrimpSocket,4&8Pole Crimp contact, female, for 4, 6 and 8-pole, SA3347, Bulgin Bulgin 400 系列 5A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
PX0410/04P/5055
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 4POS PIN
PX0410/04P/5560
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 5.5-6.0MM BLUE CONN HSNG PLUG CABLE 4POS PIN
PX0410/04P/6065
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG CABLE SIZE 6.0-6.5MM CONN HSNG PLUG CABLE 4POS PIN Conn Buccaneer PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port
PX0410/04P/6570
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 4POS PIN
PX0410/04P/3540
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 3.5-4.0MM GREY CONN HSNG PLUG CABLE 4POS PIN
PX0410/04P/4045
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 4.0-4.5MM GREEN CONN HSNG PLUG CABLE 4POS PIN
PX0410/04P/3035
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG 3.0-3.5MM LIGHT GREY CONN HSNG PLUG CABLE 4POS PIN
