点击放大查看

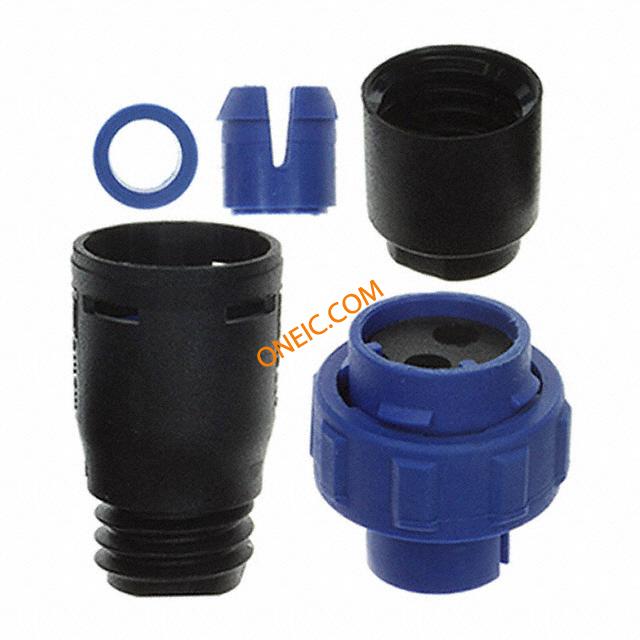

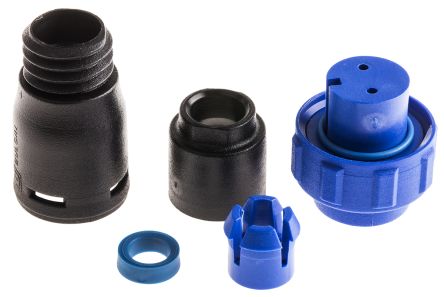

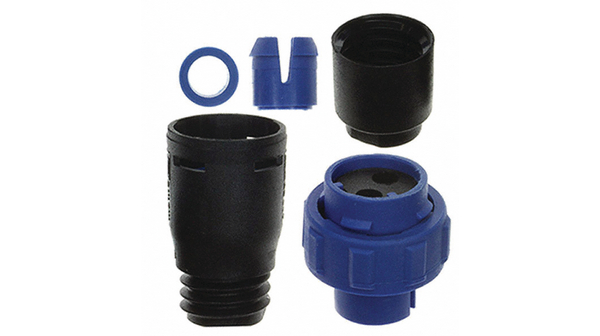

PX0410/02S/5560
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE FLEX SKT CONN HSNG PLUG CABLE 2POS SKT 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 2P, SKT, CABLE CONN HSNG PLUG INLINE 2POS SKT Connector;Socket;2;46mm(Max.);8A;250VAC/VDC;5Milliohms(Max.) Cable socket Buccaneer 400, 2-pole 2, PX0410/02S/5560, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V ac/dc | 接触电阻 | :5mohm |
| 最大额定电流 | 8A | 绝缘电阻 | :10Mohm |
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 5.5-6mm | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 配接方向 | Threaded |
| 触点数 | 2 | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - AWG | :24AWG | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :6.0mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Socket | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 制造商全称 | 400Series |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
