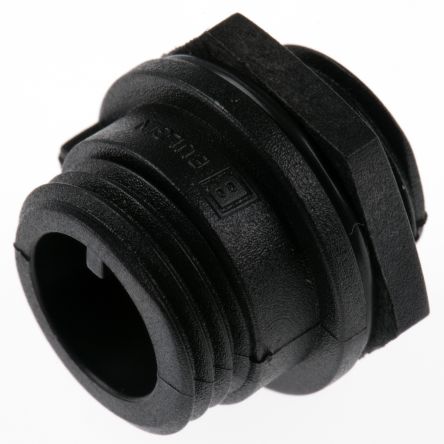

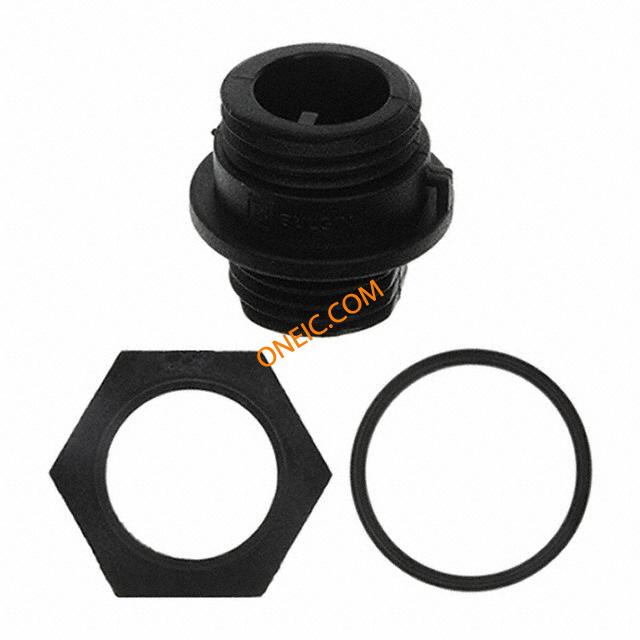

PX0412/02P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 2POS PIN 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Crimp ST Panel Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 2 WAY, PANEL Connector;Plug;2;20to24AWG;CrimpandSolder;8A;250VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:2; w/o terminals; IP68; 250V appliance plug Buccaneer 400, 2-pole 2, PX0412/02P, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 本体尺寸 | Ø22 x 19.9mm | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | socket | 第一触头极性 | Male |
| 配接方向 | Threaded | 触点数 | 2 |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :7mm |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | PanelPlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 400 |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
