点击放大查看

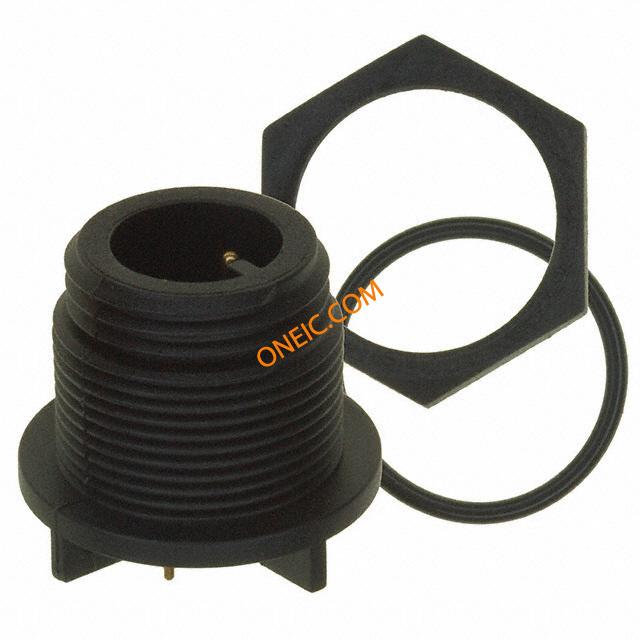

PX0413/02P/PC
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector PCB PIN CONN- 2 POLE CONN RCPT 2POS PNL MNT PCB PIN 2 Pole Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Buccaneer Series PLUG, PCB, IP68, 2POLE 400SeriesBuccaneerSealedPCBMountConnectorPlug2pos8Amps Bulgin Buccaneer 系列 2路 通孔 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250VAC/DC | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.006 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | 20-24 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 触头类型 | Pin |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Threaded | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide (PA) | 主要材料 | Sealed |
| 第一触头极性 | Male | 触点数 | 2 |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | PanelPlug | 连接器性别 | :Plug |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
