点击放大查看

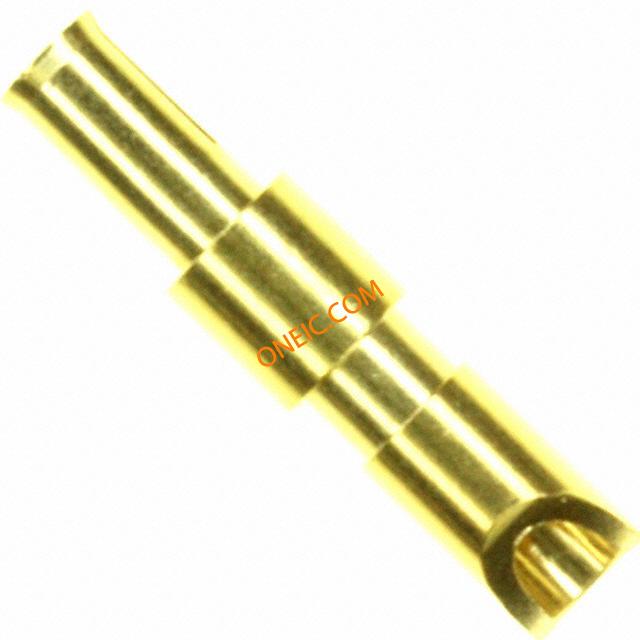

SA3349/1
| 制造商 | Bulgin |
| 描述 | Standard Circular Contacts SOLDR SKT 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT SKT 8A SLD 20-24AWG 1=10PC 400 Series 8A Female Circular Connector Contact, Solder,Wire size 24 to 20AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 20-24AWG SolderContacts,Socket,2or3Pole,Forthe400SeriesBuccaneer Contact; female; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 2 and 3-pole, SA3349/1, Bulgin Bulgin 400 系列 8A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 250 V ac/dc | 接触电阻 | 5mΩ |
| 最大额定电流 | 8A | 连接器类型 - 电压输入 | 2pin connectors, 3pin connectors |
机械参数
| 重量 | 0.001001 | 包装方式 | Bulk |
| 导线线规 | 20-24 AWG | 端接方式 | Solder |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | female | 接触镀层 | Gold |
| 触头材料 | Copper Alloy | 包装数量 | 10 |
| 连接器 - 电缆 | contact | 第一触头极性 | Socket (Female) |
| 接触件端接 | Solder Cup | 线规或范围 - AWG | :24AWG |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 10 | 连接器性别 | Female |
| 系列 | 400 | 适配器系列 | Buccaneer 400 |
| 单元数量 | 1 | 适用产品/相关产品 | :Buccaneer 400 Series Circular Connectors |
环境参数
| 工作温度 | +80°C | ||
文档与媒体
相关型号
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
14025/8AMP
Bulgin
Crimpers POSITIONER 8A BLUE TOOL CRIMP POSITIONER FOR 8A Positioner For 8A Crimp Tool POSITIONER, 20-24AWG PositionerFor8ACrimpTool Limit stop for contacts SA3350/3349, 14025/8AMP, Bulgin Bulgin 14025 2, 3 触点 压接工具 定位器

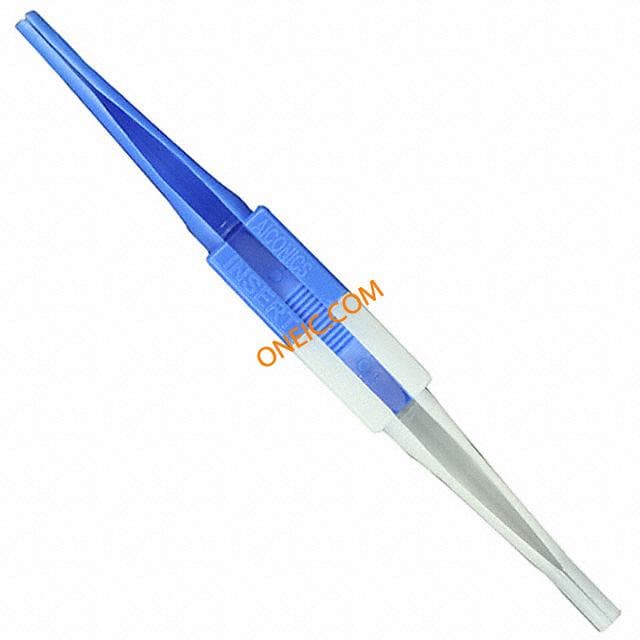

13027/2
Bulgin
Hand Tools INSERTION/EXTRA TOOL TOOL INSERTION FOR 8A CONT BLUE Insertion tool for 8A contacts Contact Insertion Tools INSERTION TOOL, 20-24AWG Insertion/ExtractionTool,CableSupport;25WayContacts;Buccaneer Assembly/disassembly tool for contacts SA3350/3349, 13027/2, Bulgin Bulgin 400 系列 插入工具 (24 → 20AWG)
SA3350/1
Bulgin
Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格
SA3349/1
Bulgin
Standard Circular Contacts SOLDR SKT 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT SKT 8A SLD 20-24AWG 1=10PC 400 Series 8A Female Circular Connector Contact, Solder,Wire size 24 to 20AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 20-24AWG SolderContacts,Socket,2or3Pole,Forthe400SeriesBuccaneer Contact; female; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 2 and 3-pole, SA3349/1, Bulgin Bulgin 400 系列 8A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格
PX0410/02S/6570
Bulgin
Standard Circular Connector 2 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 2POS SOCKET
PX0413/03S/PC
Bulgin
Standard Circular Connector PCB PIN CONN- 3 POLE CONN RCPT 3POS PNL MNT PCB SKT 3 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PCB, IP68, 3POLE 400SeriesBuccaneerSealedPCBMountConnectorsSocket(3pos)8Amp Bulgin Buccaneer 系列 3路 通孔 直向 连接器 , 母触点

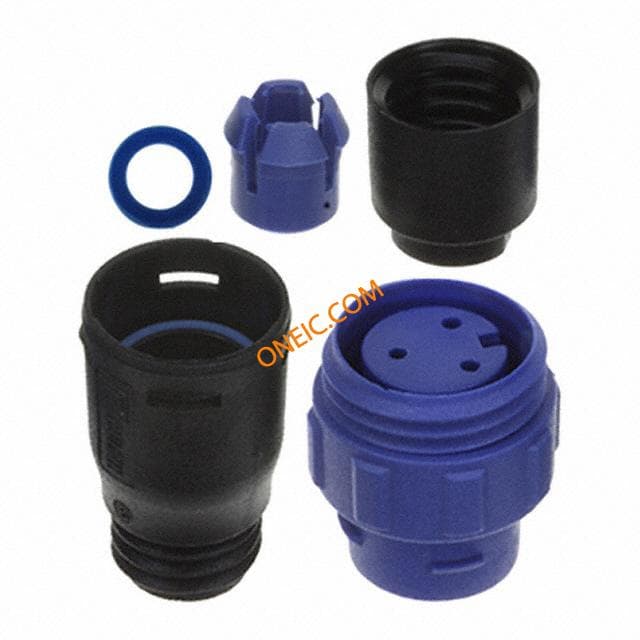

PX0411/03S/5560
