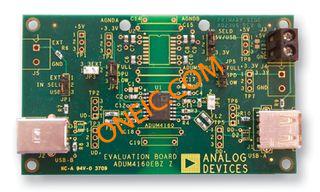

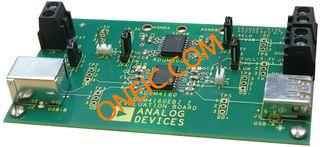

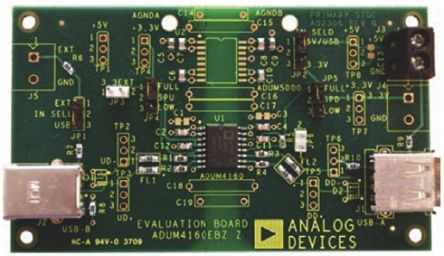

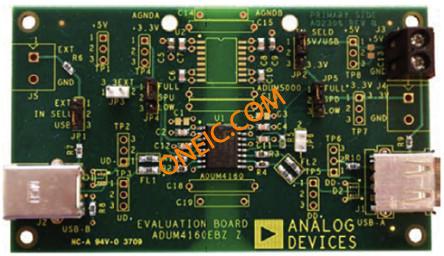

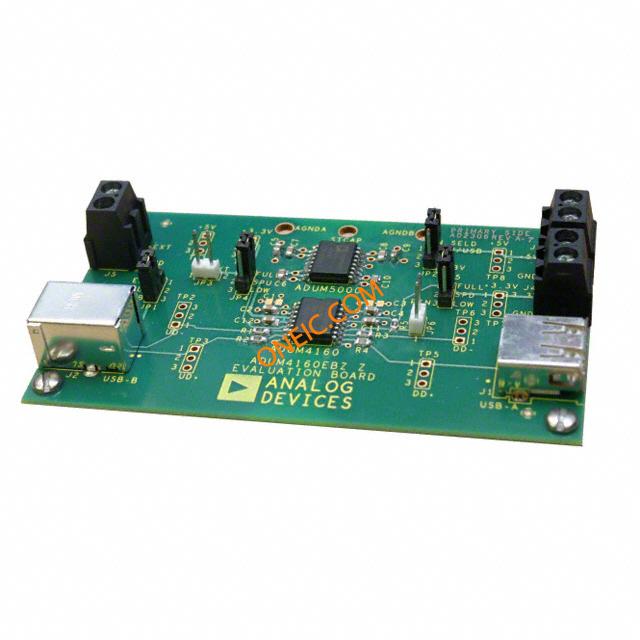

EVAL-ADUM4160EBZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Development Kits For Full/Low Speed USB Digital Isolator EVALUATION MODULE FOR ADUM4160 Eval Board, USB Isolator ADuM3160 / 4160 Interface Development Tools EVAL-ADUM4160 ADUM4160, USB ISOLATOR, EVAL BOARD USB Digital Isolator Eval. Board Analog Devices iCoupler USB ADuM3160, ADuM4160 数字隔离器接口 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 核心类型 | :Interface | 接口 | USB |
| 供电电压 | 5 V, 3.3 V | 元件数量 | :ADuM4160 |
机械参数
| 重量 | 1.68 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :Support Low and Full Speed Communications, Enumeration Control, External ESD Protection |
| 套件类型 | :Interface | 技术 | USB |
| 套件内容 | Evaluation Board for ADUM4160 | 主要用途 | Interface, Digital Isolator |
| 卡标准 | Development Kit | 工具类型/特性 | ADUM4160 |
| 主要特性 | USB Bidirectional Isolation | 使用的IC/零件 | ADuM4160 |
| 芯片组制造商 | :Analog Devices | 次要特性 | 3.1 V ~ 5.5 V Supply |
| 应用细节 | :Isolator | 支持MCU系列 | :ADuM3160, ADuM4160 |
文档与媒体
相关型号
EVAL-CN0158-EB1Z
analog devices
EVAL-CN0158-EB1Z Development Kit For Universal Serial Bus Hub Isolator Circuit EVAL CIRCUIT BOARD Interface Development Tools CftL CN0158 EVAL BRD ADUM4160, USB ISOLATOR, EVAL BOARD Analog Devices iCoupler USB Hub ADuM4160 数字隔离器接口 参考设计
EVAL-CN0159-EB1Z
analog devices
Universal Serial Bus Cable Isolator Circuit EVAL CIRCUIT BOARD USB Interface Development Tools CftL CN0159 EVAL BRD ADUM4160, USB ISOLATOR, EVAL BOARD Analog Devices USB Cable CN0159 数字隔离器接口 参考设计
EVAL-CN0160-EB1Z
analog devices
EVAL-CN0160-EB1Z Development Kit For Universal Serial Bus Peripheral Isolator Circuit EVAL CIRCUIT BOARD USB Interface Development Tools CftL CN0160 EVAL BRD ADUM4160, USB ISOLATOR, EVAL BOARD
ADUM4160BRWZ
analog devices
Digital Isolator 16-Pin SOIC W Digital Isolator CMOS 4-CH 12Mbps 16-Pin SOIC W Tube IC DGTL ISO 2CH LOGIC 16SOIC USB 2.0 Digital Isolator 12Mbps SOIC16 IC, DIGITAL ISOLATOR, 70NS, 16WSOIC Inductor: digital isolator; SMD; Application: USB Interface Isolator SOIC-16W, ADUM4160BRWZ, Analog Devices Analog Devices USB 数字隔离器, 5000 V隔离电压, 16针 SOIC Digital Isolators Full/Low Spd USB 2.0 Digital
ADUM4160BRIZ
analog devices
FULL/LOW SPEED USB DIGITAL ISOLATOR Digital Isolator CMOS 4-CH 12Mbps 16-Pin SOIC Tube IC DGTL ISO 2CH LOGIC 16SOIC USB Digital Isolator 2:2 12Mbps 5kV SO16 Isolator Interface IC Full/Low Spd USB 2.0 Digital DIGITAL ISOLATOR, USB, 16WSOIC Analog Devices USB 数字隔离器, 5 KVrms隔离电压, 16针 SO Digital Isolators Full/Low Spd USB 2.0 Digital
EVAL-ADUM4160EBZ
analog devices
Development Kits For Full/Low Speed USB Digital Isolator EVALUATION MODULE FOR ADUM4160 Eval Board, USB Isolator ADuM3160 / 4160 Interface Development Tools EVAL-ADUM4160 ADUM4160, USB ISOLATOR, EVAL BOARD USB Digital Isolator Eval. Board Analog Devices iCoupler USB ADuM3160, ADuM4160 数字隔离器接口 评估测试板

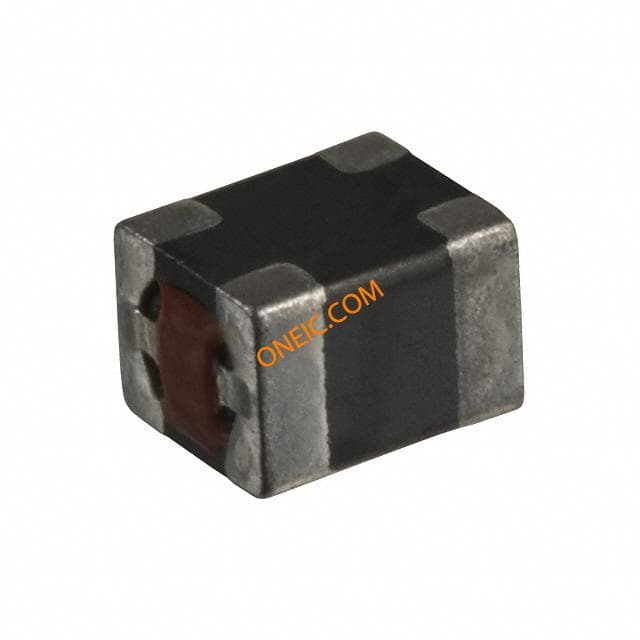

ACM3225-102-2P-T001
