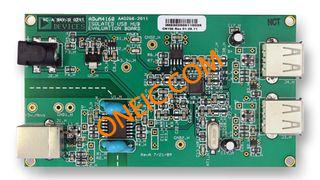

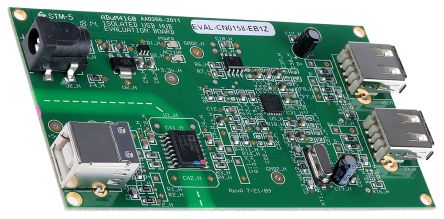

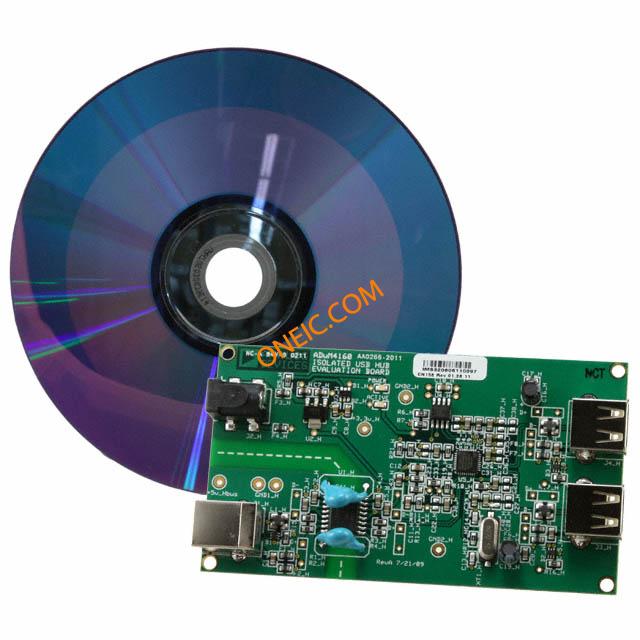

EVAL-CN0158-EB1Z
| 制造商 | Analog Devices, Inc. |
| 描述 | EVAL-CN0158-EB1Z Development Kit For Universal Serial Bus Hub Isolator Circuit EVAL CIRCUIT BOARD Interface Development Tools CftL CN0158 EVAL BRD ADUM4160, USB ISOLATOR, EVAL BOARD Analog Devices iCoupler USB Hub ADuM4160 数字隔离器接口 参考设计 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALCN0158EB1Z |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 接口 | USB | 供电电压 | 5 V |
| 元件数量 | :ADuM4160 | ||
机械参数
| 重量 | 0.3 | 包装方式 | Bulk |
产品信息
| 类型 | Isolators | 内容 | Board |
| 嵌入式 | No | 套件内容 | :Board |
| 主要用途 | Interface, Isolator USB HUB | 工具类型/特性 | ADUM4160, ADP3339, ADP3330 |
| 使用的IC/零件 | ADuM4160, ADP3330, ADP3339 | 支持MCU系列 | :CN0158 |
相关型号
ADP3336ARMZ-REEL7
analog devices
LDO Regulator Pos 1.5V to 10V 0.8A 8-Pin MSOP T/R IC REG LDO ADJ 0.5A 8MSOP ADP3336ARMZ-REEL7, Low Dropout Voltage Regulator, Adjustable 0.8A, 1.5 to 10V ±0.9%, 8-Pin MSOP Voltage Regulators - Standard Small Adj Out 500mA ADJUSTABLE 500MA ANYCAP LDO IC, ADJ LDO REG, 1.5V TO 10V 0.5A 8-SOIC Analog Devices , LDO 调节器, 可调整的输出, 800mA, 1.5 → 10 V输出 ±0.9%, 8针 MSOP封装 Linear Voltage Regulators Small Adj Out 500mA
ADP3330ARTZ3.3-RL7
analog devices
LDO Regulator Pos 3.3V 0.3A 6-Pin SOT-23 T/R IC REG LDO 3.3V 0.2A SOT23-6 ADP3330ARTZ3.3-RL7, Low Dropout Voltage Regulator, 0.3A, 3.3V ±0.7%, 2.9 to 12Vin, 6-Pin SOT-23 Voltage Regulators - Standard High Acc 200mA LDO Ultralow IQ ANYCAPTM LDO REGULATOR Analog Devices , LDO 调节器, 300mA, 3.3 V输出 ±0.7%, 2.9 → 12 V输入, 6针 SOT-23封装 Linear Voltage Regulators High Acc 200mA LDO Ultralow IQ
EVAL-CN0158-EB1Z
analog devices
EVAL-CN0158-EB1Z Development Kit For Universal Serial Bus Hub Isolator Circuit EVAL CIRCUIT BOARD Interface Development Tools CftL CN0158 EVAL BRD ADUM4160, USB ISOLATOR, EVAL BOARD Analog Devices iCoupler USB Hub ADuM4160 数字隔离器接口 参考设计
ADUM4160BRWZ
analog devices
Digital Isolator 16-Pin SOIC W Digital Isolator CMOS 4-CH 12Mbps 16-Pin SOIC W Tube IC DGTL ISO 2CH LOGIC 16SOIC USB 2.0 Digital Isolator 12Mbps SOIC16 IC, DIGITAL ISOLATOR, 70NS, 16WSOIC Inductor: digital isolator; SMD; Application: USB Interface Isolator SOIC-16W, ADUM4160BRWZ, Analog Devices Analog Devices USB 数字隔离器, 5000 V隔离电压, 16针 SOIC Digital Isolators Full/Low Spd USB 2.0 Digital
ADUM4160BRIZ
analog devices
FULL/LOW SPEED USB DIGITAL ISOLATOR Digital Isolator CMOS 4-CH 12Mbps 16-Pin SOIC Tube IC DGTL ISO 2CH LOGIC 16SOIC USB Digital Isolator 2:2 12Mbps 5kV SO16 Isolator Interface IC Full/Low Spd USB 2.0 Digital DIGITAL ISOLATOR, USB, 16WSOIC Analog Devices USB 数字隔离器, 5 KVrms隔离电压, 16针 SO Digital Isolators Full/Low Spd USB 2.0 Digital
EVAL-ADUM4160EBZ
analog devices
Development Kits For Full/Low Speed USB Digital Isolator EVALUATION MODULE FOR ADUM4160 Eval Board, USB Isolator ADuM3160 / 4160 Interface Development Tools EVAL-ADUM4160 ADUM4160, USB ISOLATOR, EVAL BOARD USB Digital Isolator Eval. Board Analog Devices iCoupler USB ADuM3160, ADuM4160 数字隔离器接口 评估测试板
MIC2026-1YM
Broadcom Inc.
USB Power SW Hi Side/DIST Dual 5.5V 0.9A 8-Pin SOIC Tube IC DISTRIBUTION SW DUAL 8-SOIC MIC2026-1YM, Quad USB Power Switch, High Side 90mΩ 2.7V min., 8-Pin SOIC SWITCH, MOSFET, DUAL, 140R, 0.5A, 8SOIC IC, ANALOG SWITCH MULTIPLEXER , 四 USB 电源开关, 高侧, 90mΩ, 2.7 V min., 8针 SOIC封装
MIC2026-1YM
MICROCHIP
MIC2026 Series 5.5 V 140 mOhm Dual-Channel High Side MosFet Switch - SOIC-8 Power Switch SOIC-8 0.9 A, MIC2026-1YM, Microchip , 四 USB 电源开关, 高侧, 90mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution Dual USB High-Side Power Switch 2xHSS 5.5V 140mOhm Acth SO8 SMD
