点击放大查看

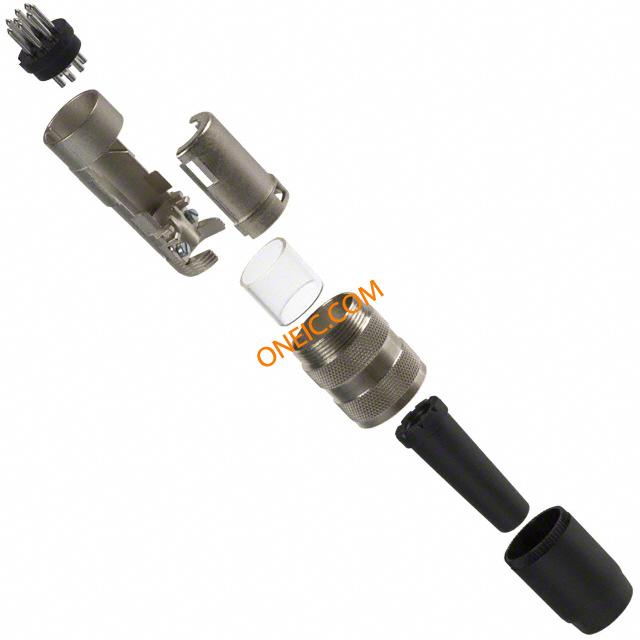

T 3504 001
| 制造商 | |
| 描述 | Conn Circular M 8 POS Solder ST Cable Mount 8 Terminal 1 Port CONN CIR MALE 8POS CBL MNT Circular DIN Connectors 8P DIN CABLE PLUG CIRCULAR CONNECTOR, PLUG, 8POS, CABLE connector, circular din, str male cable connector, 8din silver-plt solder contact Cable connector, C091A 8-pin Poles=8, T 3504 001, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 001 3504 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Bulk, Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85361010 |
| 认证机构标志 | UL Recognized/IEC | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 100V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0.036 | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20-26 |
| 方向 | Keyed | 端接方式 | Solder |
| 触头类型 | Pin | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 3-6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Wire |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 插入角度 | :- | 本体材料 | :- |
| 壳体材料 | Die Cast | 主要材料 | DIN |
| 端接样式 | Crimp / Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 介电材料 | Thermoplastic |
| 位数 | 8 | 外壳尺寸-插件 | DIN (270 Degree) |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Circular | 连接器性别 | :Plug |
| 系列 | :C 091 A | 产品特性 | Shielded, Strain Relief |
| 制造商全称 | C091-A Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
T 3507 000
amphenol
Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN CIR RCPT FMALE 8POS PNL MNT Circular DIN Connectors 8P DIN PANEL FEMALE connector, circular din, female panel recept, front mt, 8din silver-pltd solder cont Device bushing C091A 8-pin Poles=8, T 3507 000, Amphenol

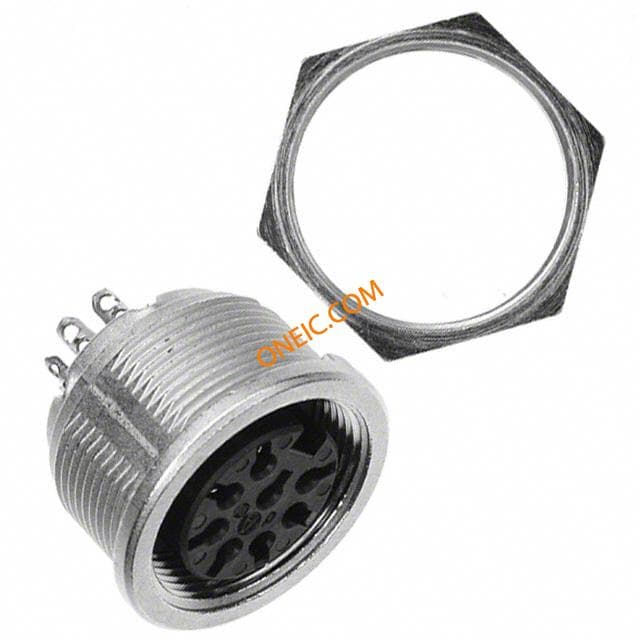

T 3507 009
amphenol
Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN FMALE RCPT 8PS FRONT PNL MT Circular DIN Connectors 8 Pin female; Front Pnl Mnt CIRCULAR CONNECTOR RECEPTACLE 8POS PANEL connector, circular din, female panel recept, front mt, 8din silver-pltd solder cont
T 3507 150
amphenol
Conn Circular F 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PNL MNT SKT CRIMP
T 3507 320
amphenol
Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PANEL MNT TH SKT
T 3507 430
amphenol
Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PANEL MNT TH SKT FEMALE RECEPTACLE 8WAY
C091 00U000 120 2
Amphenol Tuchel
Circular DIN Connectors AUDIO DIN DUST CAP PROTECTIVE CAP CAP, FREE, PLUG Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
T 3507 400
Amphenol Tuchel
Circular DIN Connectors C091A ST REC JCK 8P CONN FMALE RCPT 8POS REAR PNL MT T 3507 400 CONNECTOR, CIRCULAR, RCPT, 8POS, PANEL

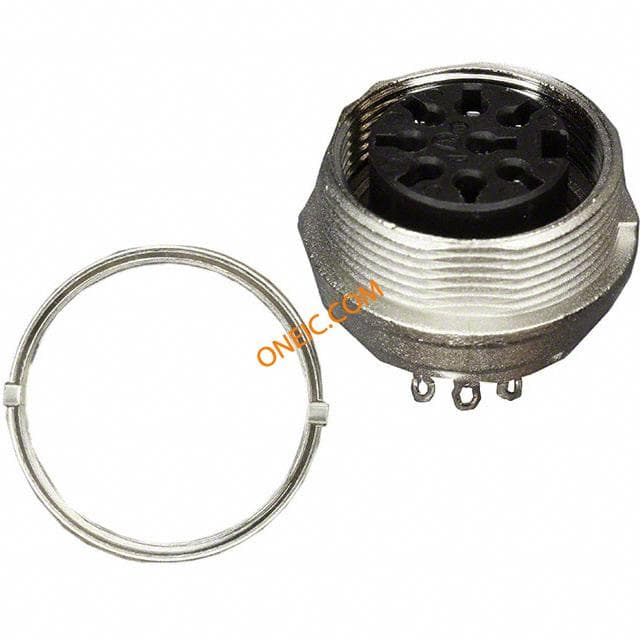

T 3507 100
Amphenol Tuchel
Circular DIN Connectors 8P RECEPT PANEL MNT CONN FMALE RCPT 8POS REAR PNL MT SOCKET, REAR PANEL MNT, C091A, 8WAY CONNECTOR, CIRCULAR, RCPT, 8POS, PANEL connector, circular din, female panel recept, rear mt, 8din silver-pltd solder cont

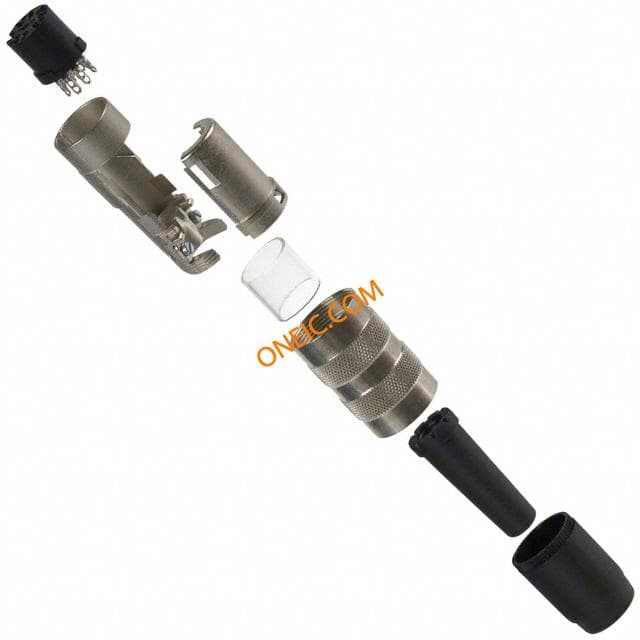

T 3505 001
