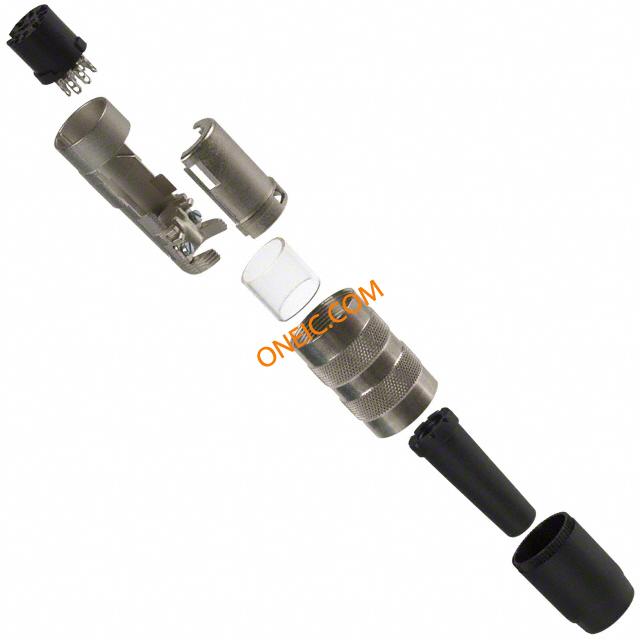

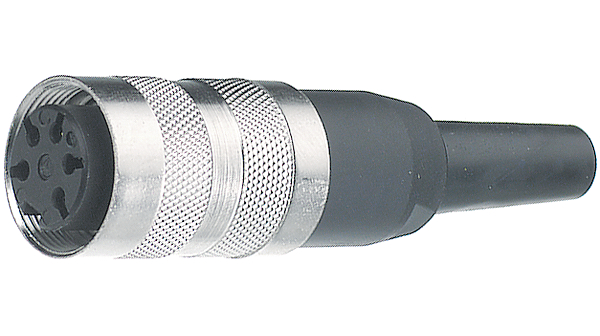

T 3505 001
| 制造商 | |
| 描述 | Circular DIN Connectors 8P DIN CABLE RECPT. CONN CIR FEMALE 8POS CBL MNT CIRCULAR CONNECTOR RECEPTACLE 8POS CABLE connector, circular din, str female cableconn, 8din silver-pltd solder cont, ip40 Cable box, C091A 8-pin Poles=8, T 3505 001, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 001 3505 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 认证机构标志 | UL Recognized/IEC | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 100V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0.027 | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20 AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 3-6 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 连接器用途 | Threaded | 插入角度 | :- |
| 本体材料 | :- | 壳体材料 | Die Cast |
| 主要材料 | DIN | 端接样式 | Crimp / Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 介电材料 | Thermoplastic | 位数 | 8 |
| 外壳尺寸-插件 | DIN (270 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Cable Socket | 连接器性别 | :Receptacle |
| 系列 | :C 091 A | 产品特性 | Shielded, Strain Relief |
| 制造商全称 | C091-A Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
T 3504 001
amphenol
Conn Circular M 8 POS Solder ST Cable Mount 8 Terminal 1 Port CONN CIR MALE 8POS CBL MNT Circular DIN Connectors 8P DIN CABLE PLUG CIRCULAR CONNECTOR, PLUG, 8POS, CABLE connector, circular din, str male cable connector, 8din silver-plt solder contact Cable connector, C091A 8-pin Poles=8, T 3504 001, Amphenol
T 3506 100
amphenol
Conn Circular M 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PANEL MNT PIN
T 3506 009
Amphenol Tuchel
Circular DIN Connectors 8 Pin male; Front Pnl Mnt CONN MALE RCPT 8POS FRONT PNL MT connector, circular din, male panel recept, front mt, 8din silver-pltd solder cont

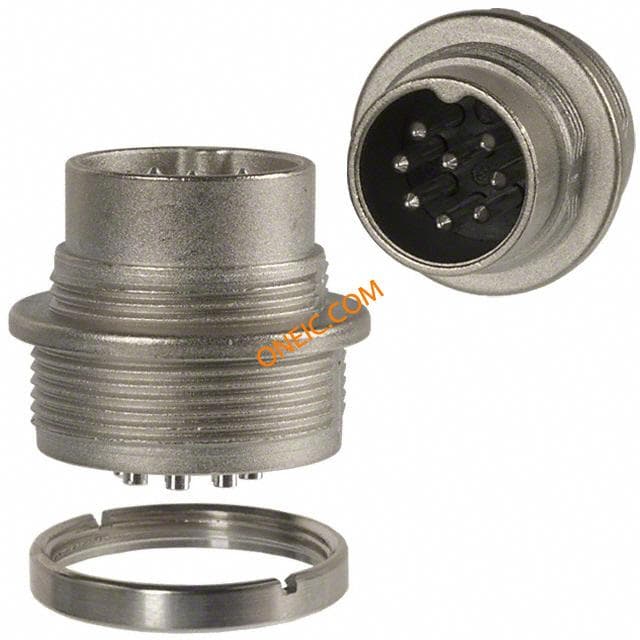

T 3506 000
