点击放大查看
97-3101A-10SL-4P
| 制造商 | Amphenol Corporation |
| 描述 | Conn MIL-C-5015 Circular PIN 2 POS Solder ST Cable Mount 2 Terminal 1 Port Circular MIL Spec Connector 2P Sz 10SL Pin Cable Receptacle Solder CONN RECEPT CBL MNT 2POS W/PINS connector, metal circ, cable recept, size 10sl, 2#16 solder pin cont, olive drab |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | Bulk |
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 700 V | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 10 | 导线线规 | 16-22 |
| 方向 | N (Normal) | 外壳样式 | In-Line |
| 端接方式 | Solder | 触头类型 | Pin |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Cable |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 10SL-4 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 介电材料 | Diallyl-Phthalate |
| 位数 | 2 | 外壳尺寸-插件 | 10SL-4 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 2#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3108A-10SL-4S
amphenol
Conn MIL-C-5015 Circular SKT 2 POS Solder RA Cable Mount 2 Terminal 1 Port Circular MIL Spec Connector 2P Size 10SL Solder R/A Socket Plug CONN PLUG 2POS RT ANG W/SKT connector;circ;rt angle plug;solid bkshl;size 10sl;2#16 solder socket;olive drab connector, circ, rt angle plug, solid bkshl, size 10sl, 2#16 solder socket, olive drab Amphenol 2路 连接器 插座 , 外壳尺寸10SL
97-3057-4
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;an3057 cable clamp;for connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3059 Shell Size 10SL, 12S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, for connector size 10sl, 12, 12s, olive drab
97-3106A-10SL-4S
amphenol
Conn MIL-C-5015 Circular SKT 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS W/SOCKETS connector;metal circ;str plug;solid bkshl;size 10sl;2#16 solder socket;olive CIRCULAR, PLUG, 10SL-4, 2 POS, CABLE connector, metal circ, str plug, solid bkshl, size 10sl, 2#16 solder socket, olive Amphenol 2路 连接器 插头 , 外壳尺寸10SL
97-3057-1004
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp;connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 10SL, 12S CABLE GLAND, SHELL SIZE 10 CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clamp, connector size 10sl, 12, 12s, olive drab Amphenol 97 系列 尺寸10SL, 12S 电缆夹, 使用于带护套电缆，带管道保护的电线

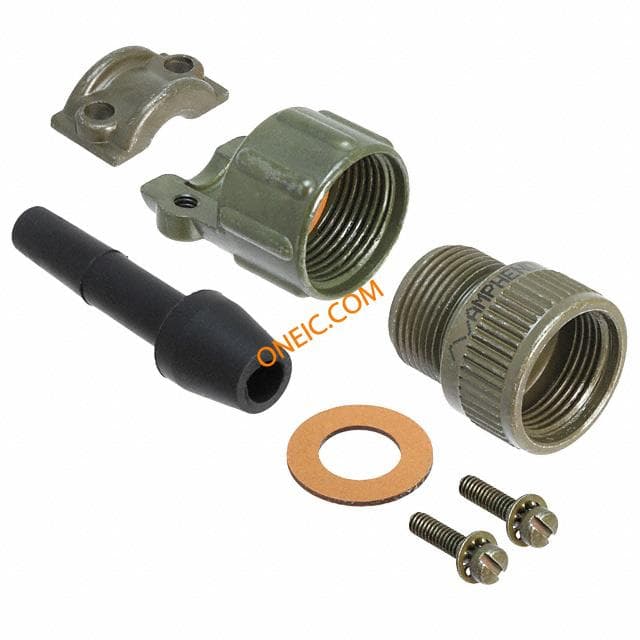

97-67-12-4
amphenol
Connector Accessories Water Resistant Cable Clamp/Bushing Zinc Alloy/Rubber Olive Drab/Green Chromate CONN CBL CLAMP SZ 10SL, 12, 12S connector accessory;water resistant cable clamp;size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 10SL 12S 12 connector accessory, water resistant cable clamp, size 10sl, 12, 12s, olive drab

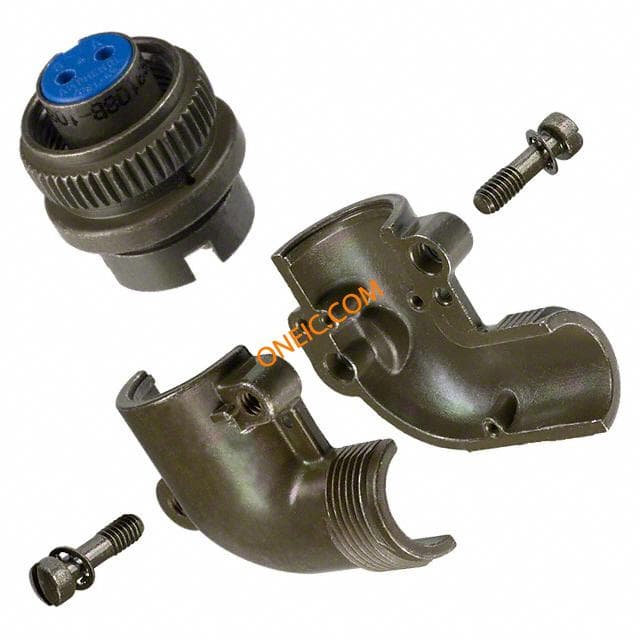

97-3108B-10SL-4S
amphenol
Conn MIL-C-5015 Circular SKT 2 POS Solder RA Cable Mount 2 Terminal 1 Port CONN PLUG RT ANG 2POS W/SOCKETS connector;metal circ;rt angle plug;split bkshl;size 10sl;2#16 solder socket;oliv Circular MIL Spec Connector 2P Size 10SL Solder R/A Socket Plug CIRCULAR, PLUG, R/A, 10SL-4, CABLE connector, metal circ, rt angle plug, split bkshl, size 10sl, 2#16 solder socket, oliv Amphenol 2路 连接器 插头 , 外壳尺寸10SL
97-3057-1004-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 10SL, 12S Straight multipole cable clamp,Size 10 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 10SL, 12S CABLE CLAMP, SIZE 10SL/12S, ZINC ALLOY CIRCULAR CLAMP, SIZE 10SL/12S, ALUMINIUM connector accessory, cable clamp with rubber bushing, size 10sl, 12, 12s, olive drab Amphenol 97 系列 橄榄色 铝 电缆夹, 7.92mm 捆束直径

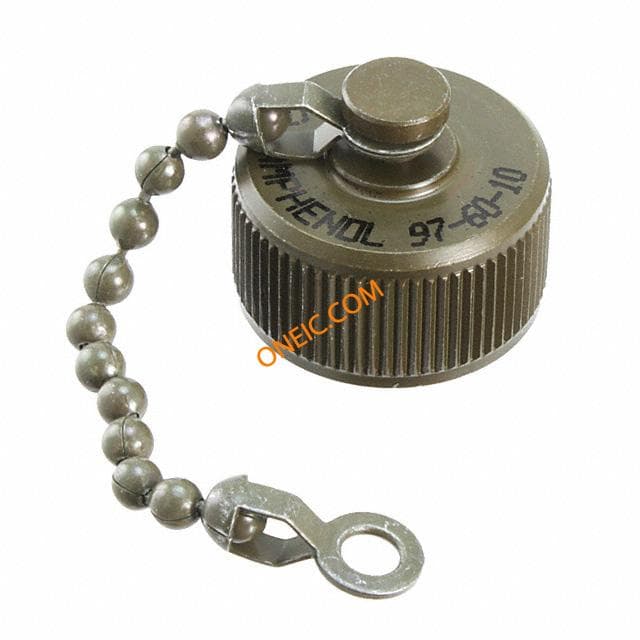

97-60-10
