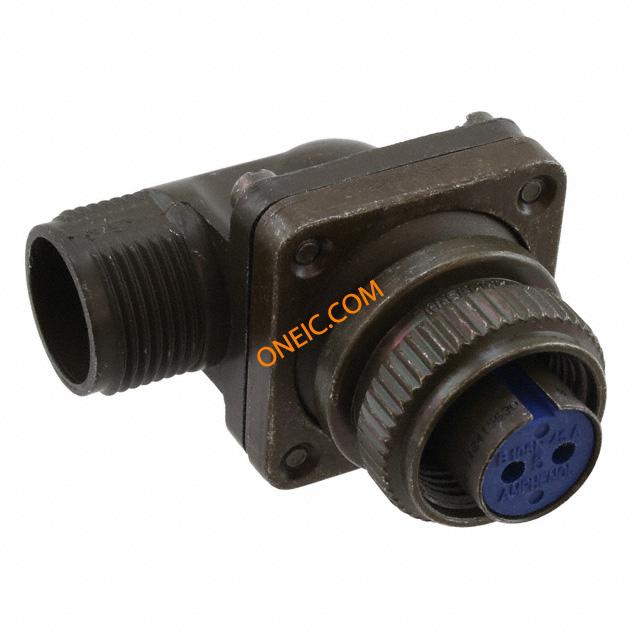

97-3108A-10SL-4S
| 制造商 | Amphenol Corporation |
| 描述 | Conn MIL-C-5015 Circular SKT 2 POS Solder RA Cable Mount 2 Terminal 1 Port Circular MIL Spec Connector 2P Size 10SL Solder R/A Socket Plug CONN PLUG 2POS RT ANG W/SKT connector;circ;rt angle plug;solid bkshl;size 10sl;2#16 solder socket;olive drab connector, circ, rt angle plug, solid bkshl, size 10sl, 2#16 solder socket, olive drab Amphenol 2路 连接器 插座 , 外壳尺寸10SL |
| 分类 |
商业参数
| 其他名称 | 973108A10SL4S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13 A |
机械参数
| 外形尺寸(长x宽) | 10SL | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 10 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | Right Angle | 端接方式 | Solder |
| 触头类型 | Socket | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Right |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 10SL-4 | 触头材料 | Copper Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 2 |
| 介电材料 | Diallyl-Phthalate | 位数 | 2 |
| 外壳尺寸-插件 | 10SL-4 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 2#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
