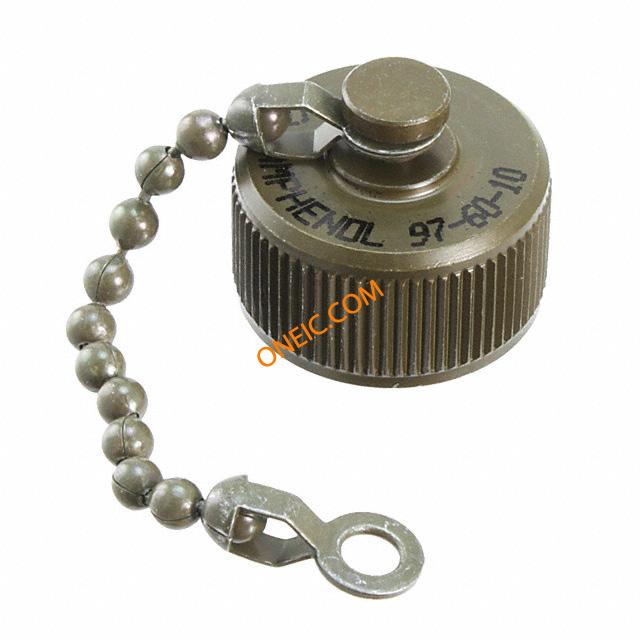

97-60-10
| 制造商 | Amphenol Corporation |
| 描述 | Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 10S, 10SL RCPT Chassis mount plug&skt dust cap,Size 10S Circular MIL Spec Tools, Hardware & Accessories RECEPT. CAP 10 10SL connector accessory, metal prot cap w/bead chain, for size 10 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸10, 橄榄镉表面 |
| 分类 |
商业参数
| 其他名称 | 976010 | 零件号别名 | 10-825915-010 U10-825915-010 |
| 产品类别 | Circular MIL Spec Tools, Hardware & Accessories | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 军用标准 | MIL-DTL-5015 | ||
机械参数
| 颜色 | Olive | 外形尺寸(长x宽) | 10 |
| 镀层 | Olive Drab Chromate over Cadmium | 材料（通用） | Metal |
| 电缆端类型 | 是 | 连接器类型 | 插头 |
| 面板安装类型 | 否 | 外壳尺寸-插件 | 10S, 10SL |
产品信息
| 类型 | Cap | 系列 | 97 |
| 产品特性 | Metal Chain | 标签类型 | 橄榄镉 |
| 产品子类型 | Dustcaps | 附件类型 | Cap (Cover) |
| 射频系列/标准 | 97 | 基础产品编号 | 9760 |
| 适用产品/相关产品 | MS3102, MS3101 and MS3100 Receptacle | ||
环境参数
| 防护等级 | IP66 | ||
文档与媒体
相关型号
97-3100A-10SL-3P
amphenol
Conn MIL-C-5015 Circular PIN 3 POS Solder ST Wall Mount 3 Terminal 1 Port CONN RCPT 3POS WALL MNT W/PIN connector;metal circ;wall recept;size 10sl;3#16 solder pin contact;olive drab Circular MIL Spec Connector 2P Sz 10SL Wall Mnt Socket Recpt Solder connector, metal circ, wall recept, size 10sl, 3#16 solder pin contact, olive drab
97-3102A-10SL-4P
amphenol
Conn MIL-C-5015 Circular PIN 2 POS Solder ST Box Mount 2 Terminal 1 Port CONN RECEPT BOX MNT 2POS W/PINS connector;metal circ;box recept;no bkshl;size 10sl;2#16 solder pin cont;olive Circular MIL Spec Connector 2P Sz 10SL Box Mount Pin Recept Solder CIRCULAR CONNECTOR RECPT, SIZE 10SL, 2POS, BOX connector, metal circ, box recept, no bkshl, size 10sl, 2#16 solder pin cont, olive
97-3101A-10SL-4P
amphenol
Conn MIL-C-5015 Circular PIN 2 POS Solder ST Cable Mount 2 Terminal 1 Port Circular MIL Spec Connector 2P Sz 10SL Pin Cable Receptacle Solder CONN RECEPT CBL MNT 2POS W/PINS connector, metal circ, cable recept, size 10sl, 2#16 solder pin cont, olive drab
97-3102A-10SL-3P
amphenol
Conn MIL-C-5015 Circular PIN 3 POS Solder ST Box Mount 3 Terminal 1 Port CONN RECEPT BOX MNT 3POS W/PINS connector;metal circ;box recept;no bkshl;size 10sl;3#16 solder pin cont;olive Circular MIL Spec Connector 3P Sz 10SL Box Mount Pin Recept Solder PLUG, PANEL, 3WAY connector, metal circ, box recept, no bkshl, size 10sl, 3#16 solder pin cont, olive
97-3101A-10SL-3P
amphenol
Conn MIL-C-5015 Circular PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN RECEPT CBL MNT 3POS W/PINS connector;metal circ;cable recept;size 10sl;3#16 solder pin cont;olive drab fin Circular MIL Spec Connector 3P Sz 10SL Pin Cable Receptacle Solder connector, metal circ, cable recept, size 10sl, 3#16 solder pin cont, olive drab fin
