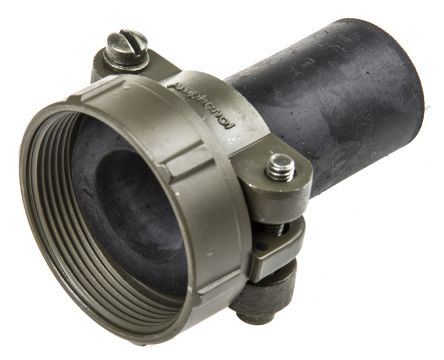

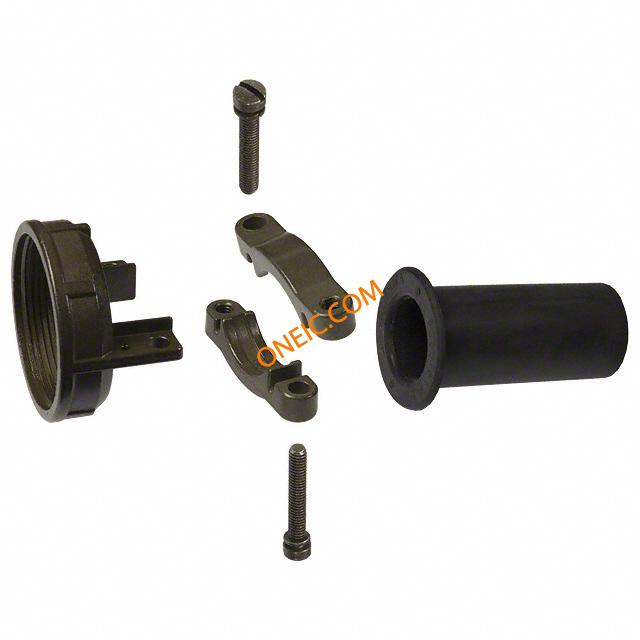

97-3057-1016-1
| 制造商 | |
| 描述 | Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 24, 28 Straight multipole cable clamp,Size24,28 Straight multipole cable clamp,Size 28 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 24, 28 CABLE CLAMP, SIZE 24/28, ZINC ALLOY CLAMP & BUSH, SIZE 24&28 connector accessory, cable clamp with rubber bushing, size 24, 28, olive drab Amphenol 97 系列 橄榄色 铝 电缆夹, 23.8mm 捆束直径 |
| 分类 |
商业参数
| 产品 | Cable Clamps | 其他名称 | 97305710161 |
| 零件号别名 | U10-824811-016 | 产品类别 | Circular MIL Spec Strain Reliefs & Adapters |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (19-Dec-2012) |
| MIL类型 | MIL-DTL-5015 | 海关税号 | 85369010 |
| 认证机构 | :MIL Spec | ||
机械参数
| 宽度 | 42.75 mm | 长度 | 25.78mm |
| 重量 | 0.086 | 材料（通用） | Die Cast Zinc |
| 外壳尺寸 | 24, 28 | 螺纹尺寸 | 1 7/16-18 |
| 重量（g） | 68.30000 | 基体材料 | Aluminum Alloy |
| 电缆开口 | 0.938" (23.80mm) | 安装类型 | Screw |
| 电缆直径 | 23.8 mm | 线束直径 | 23.8mm |
| 电缆端接方式 | Cable Clamp | 连接器颜色 | :Olive |
| 配接方向 | Threaded | 外壳尺寸-插件 | 24, 28 |
| 绝缘材料 - 材质 | :Zinc Alloy | 供应商器件封装 | Straight |
| 外壳与棱镜材料 | :Zinc Alloy | 外径-未扩张 | :23.8mm |
产品信息
| 类型 | Cable Clamp | 系列 | 97 |
| 产品特性 | Telescoping Bushings | 射频系列/标准 | 97 |
| 适用产品/相关产品 | :97 Series Circular Connectors | ||
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
97-4100A-28-12S
amphenol
Conn MIL-C-5015 Circular SKT 26 POS Crimp ST Wall Mount 26 Terminal 1 Port CONN HSG RCPT 26POS PNL MNT SKT connector;metal circ;wall recept housing;size 28;for 26 #16 crimp socket;clear Circular MIL Spec Connector 26P Sz 28 Sckt Crimp Wall Mnt Receptacle connector, metal circ, wall recept housing, size 28, for 26 #16 crimp socket, clear
97-3106A-28-16S
amphenol
Conn MIL-C-5015 Circular SKT 20 POS Solder ST Cable Mount 20 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 20POS W/SOCKETS connector;metal circ;straight plug;size 28;20 #16 solder socket cont;olive drab Circular MIL Spec Connector 20P Strt Socket Plug Sz 28 Solder CIRCULAR CONNECTOR PLUG SIZE 28, 20POS, CABLE connector, metal circ, straight plug, size28, 20 #16 solder socket cont, olive drab
97-3106A-28-18P
amphenol
Conn MIL-C-5015 Circular PIN 12 POS Solder ST Cable Mount 12 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 12POS STRAIGHT W/PIN connector;metal circ;straight plug;size 28;12 #16 solder pin contact;olive drab Circular MIL Spec Connector 12P Strt Pin Plug Sz 28 Solder connector, metal circ, straight plug, size28, 12 #16 solder pin contact, olive drab

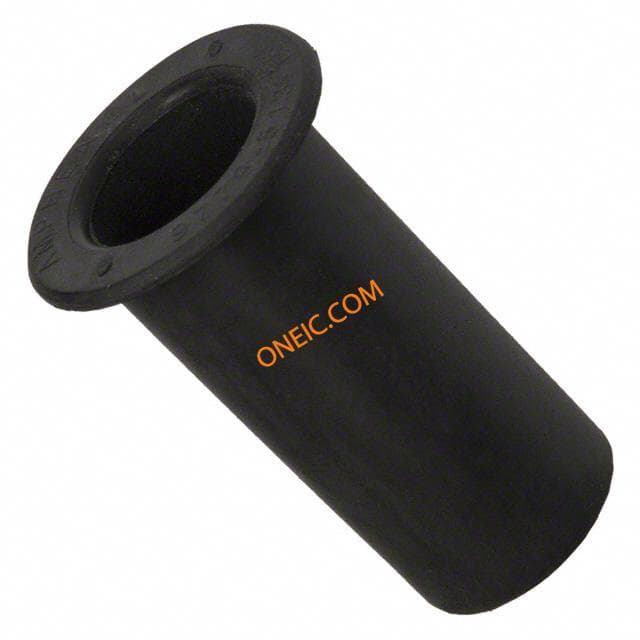

97-79-513-16
