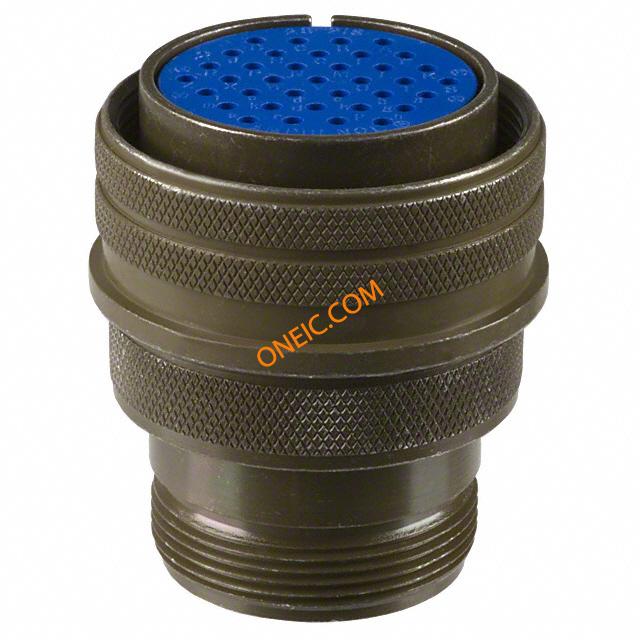

97-3106A-28-21S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 37 POS Solder ST Cable Mount 37 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 37POS W/SOCKETS connector;metal circ;straight plug;size 28;37 #16 solder socket cont;olive drab Circular MIL Spec Connector 37P Strt Socket Plug Sz 28 Solder SOCKET, FREE, 37WAY connector, metal circ, straight plug, size28, 37 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (19-Dec-2012) |
| MIL类型 | MIL-DTL-5015 | 海关税号 | 85369010 |
| 认证机构 | :MIL Spec | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 工作电压 | :700V |
| 击穿电压 | :2000V | 最大额定电流 | 13A |
机械参数
| 长度 | :57.15mm | 重量 | 0.12 |
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 28 | 导线线规 | 22-16 |
| 方向 | N (Normal) | 外壳样式 | straight plug |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 芯径 | :49.99mm | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 28-21 | 本体材料 | :Aluminium |
| 触头材料 | :Copper | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Olive |
| 触点数 | 37 | 接触件端接 | :Solder |
| 介电材料 | Diallyl-Phthalate | 位数 | 37 |
| 外壳尺寸-插件 | 28-21 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |

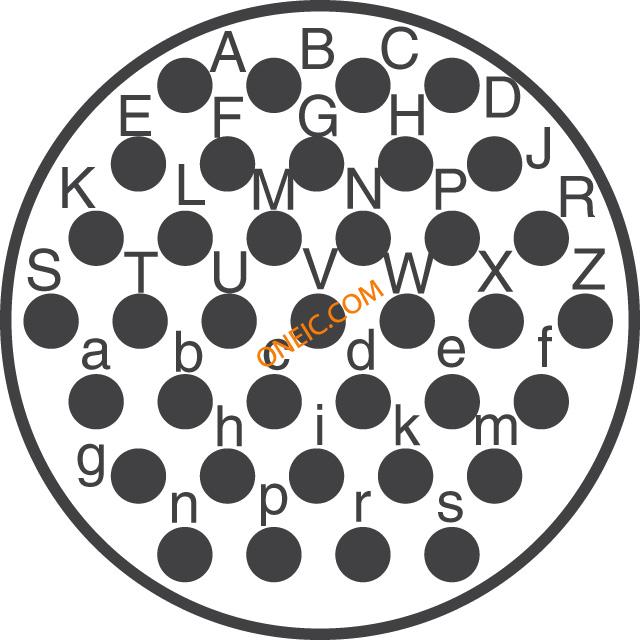

| 典型触点布局 | 37#16 | 线规或范围 - AWG | :16AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :1.4mm |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP66 |
| 工作温度 | -55°C ~ 125°C | ||
