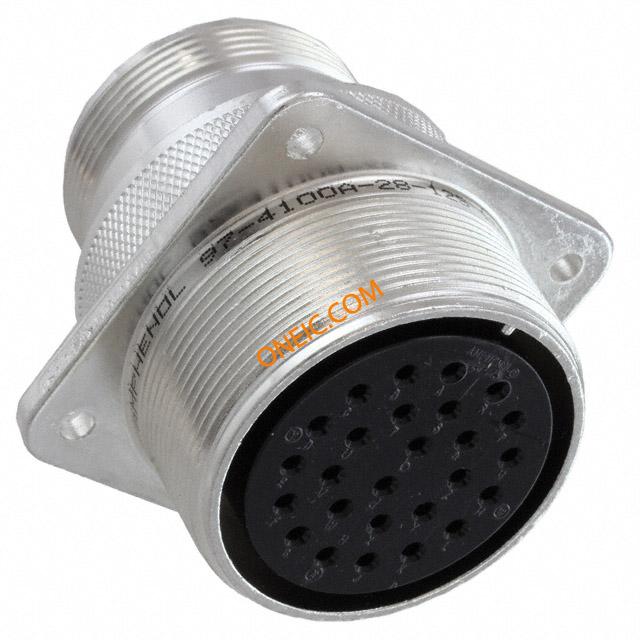

97-4100A-28-12S

制造商	Amphenol Corporation
描述	Conn MIL-C-5015 Circular SKT 26 POS Crimp ST Wall Mount 26 Terminal 1 Port CONN HSG RCPT 26POS PNL MNT SKT connector;metal circ;wall recept housing;size 28;for 26 #16 crimp socket;clear Circular MIL Spec Connector 26P Sz 28 Sckt Crimp Wall Mnt Receptacle connector, metal circ, wall recept housing, size 28, for 26 #16 crimp socket, clear
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	974100A2812S	零件号别名	U10-824014-12S
产品类别	Circular MIL Spec Connector	标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS non-compliant	MIL类型	MIL-DTL-5015
认证机构标志	UL/CSA	材料阻燃等级	UL94-V0

电气参数

额定电压

700 V

最大额定电流

13 A

机械参数

包装方式	Bulk	出线方向	Solid
外壳尺寸	28	导线线规	16-22
方向	N (Normal)	外壳样式	Wall Mount
端接方式	Crimp	触点尺寸	16
触头类型	Crimp	安装类型	Wall Mount
外壳镀层	Chromate over Cadmium, Olive Drab	行程角度	Straight
连接器类型	Insert Shell, Receptacle	接触镀层	Silver
紧固类型	Threaded	外壳涂层	Clear Cadmium
安装样式	Panel	封装形式	Metal
外壳材料（壳体）	Aluminum Alloy	连接器用途	Threaded
插入角度	28-12	壳体材料	Aluminum Alloy
主要材料	5015 Commercial	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	26
位数	26	外壳尺寸-插件	28-12
安装孔直径	0.147 "	外壳材料及表面处理	Aluminum, Olive Drab Cadmium Plated
典型触点布局	26#16

产品信息

备注	Contacts Not Provided	类型	MIL-C-5015 Circular
类别	A	连接器性别	RCP
系列	97	产品特性	Rear Release
制造商全称	97 Series	产品子类型	Receptacles
应用细节	Commercial

文档与媒体

PDF 文档

97-4100A_ht.pdf

相关型号

97-3057-1016

amphenol

Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;ms3057a cable clamp;connector sizes 24;28;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 24, 28 CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY CABLE CLAMP, SIZE 24, 28 connector accessory, ms3057a cable clamp, connector sizes 24, 28, olive drab finish

¥58.2400

详情

97-3057-16

amphenol

Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 24,28 CONN CABLE CLAMP SIZE 24, 28 connector accessory;an3057 cable clamp;connector size 24;28;olive drab finish CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY connector accessory, an3057 cable clamp, connector size 24, 28, olive drab finish Amphenol 97 系列尺寸24, 28 电缆夹, 使用于带护套电缆，带管道保护的电线

¥59.6802

详情

97-67-28-16

amphenol

Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;water resistant cable clamp;conn size 24;28;olive drab fin Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 24 28 connector accessory, water resistant cable clamp, conn size 24, 28, olive drab fin

¥127.0920

详情

97-3057-1016-1

amphenol

Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 24, 28 Straight multipole cable clamp,Size24,28 Straight multipole cable clamp,Size 28 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 24, 28 CABLE CLAMP, SIZE 24/28, ZINC ALLOY CLAMP & BUSH, SIZE 24&28 connector accessory, cable clamp with rubber bushing, size 24, 28, olive drab Amphenol 97 系列橄榄色铝电缆夹, 23.8mm 捆束直径

¥56.9441

详情

97-3106A-28-12P

amphenol

Conn MIL-C-5015 Circular PIN 26 POS Solder ST Cable Mount 26 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 26POS STRAIGHT W/PIN connector;metal circ;straight plug;size 28;26 #16 solder pin contact;olive drab Circular MIL Spec Connector 26P Strt Pin Plug Sz 28 Solder CIRCULAR CONNECTOR PLUG SIZE 28, 26POS, CABLE connector, metal circ, straight plug, size28, 26 #16 solder pin contact, olive drab

¥1039.7478

详情

97-67-28-12

amphenol

¥116.0760

详情

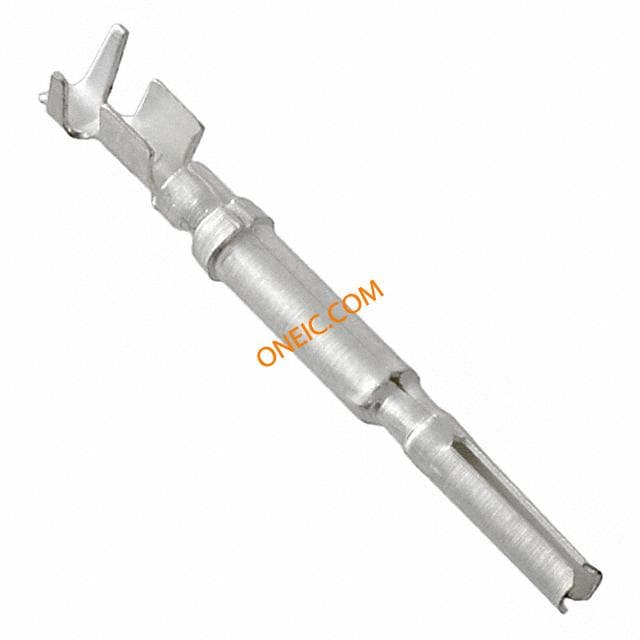

97-45-1622S-4(0920)
