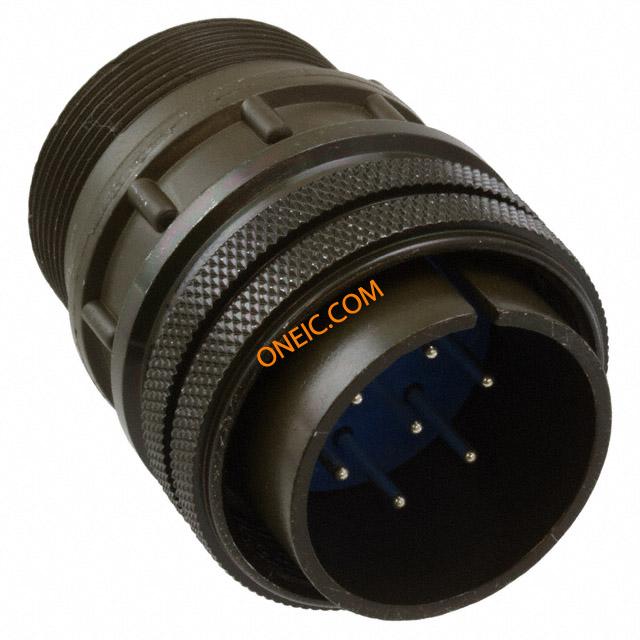

97-3106A-24-27P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 7POS STRGHT PIN SLD connector;metal circ;straight plug;size 24;7 #16 solder pin contact;olive drab Circular MIL Spec Connector 7P Straight Pin Plug Sz 24 Solder CIRCULAR CONNECTOR PLUG, SIZE 24, 7POS, CABLE connector, metal circ, straight plug, size24, 7 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973106A2427P | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 1250VAC, 1750VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.082 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 24 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 24-27 | 本体材料 | :Aluminium Alloy |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 7 | 介电材料 | Diallyl-Phthalate |
| 位数 | 7 | 外壳尺寸-插件 | 24-27 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 7#16 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
