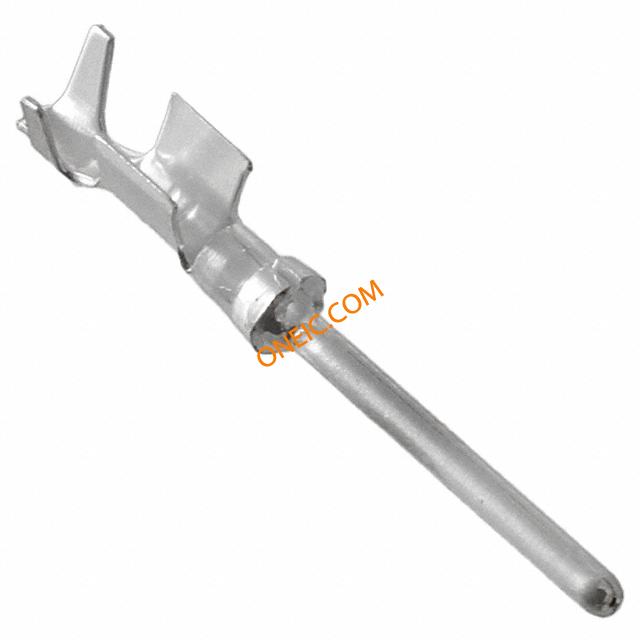

97-45-1418P-4(0920)
| 制造商 | |
| 描述 | CONTACT PIN CRIMP 14-18AWG SZ 16 connector comp;crimp pin contact;silver plated;size 16;for 14-18 awg wire connector comp, crimp pin contact, silverplated, size 16, for 14-18 awg wire |
| 分类 |
商业参数
| 其他名称 | 97451418P40920 | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
机械参数
| 尺寸 | 16 | 包装方式 | Bulk |
| 导线线规 | 14-18 AWG | 触点尺寸 | 16 |
| 插针或插孔 | Pin | 接触镀层 | Silver |
| 连接器用途 | Pin | 导线端接方式 | 14 to 18 AWG |
| 接触件端接 | Crimp | 接触镀层厚度 | 19.7µin (0.50µm) |
| 线规或范围 - AWG | 14 to 18 AWG | 外壳尺寸，连接器布局 | 10SL to 36 |
产品信息
| 类型 | Stamped | 适用产品/相关产品 | Semi automatic crimping equipment |
