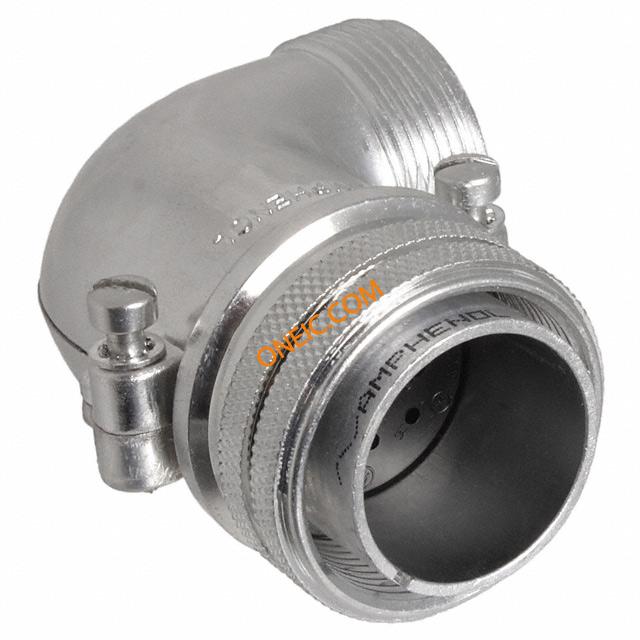

97-4108B-20-27P

制造商	Amphenol Corporation
描述	Conn MIL-C-5015 Circular PIN 14 POS Crimp RA Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG PLUG 14POS R/A PIN connector;metal circ;rt angle plug;size 20;for 14#16 crimp pin cont;clear finish Circular MIL Spec Connector 14P SZ 20 R/A Plug Crimp MIL-DTL-5015 connector, metal circ, rt angle plug, size20, for 14#16 crimp pin cont, clear finish
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

其他名称	974108B2027P	零件号别名	605-7557
标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS non-compliant	MIL类型	MIL-DTL-5015
认证机构标志	UL/CSA	材料阻燃等级	UL94-V0

电气参数

额定电压

500/700 VAC/VDC

最大额定电流

13 A

机械参数

包装方式	Bulk	出线方向	Split
外壳尺寸	20	导线线规	16
方向	N (Normal)	外壳样式	angle plug
端接方式	Crimp	触点尺寸	16
触头类型	pin contacts	安装类型	Cable Mount
外壳镀层	Olive Drab Chromate over Cadmium	行程角度	Right
连接器类型	Amphenol 97 Series - Standard Cylindrical Connector - crimp type	接触镀层	Silver
紧固类型	Threaded	外壳涂层	Clear Cadmium
安装样式	Wire	封装形式	Metal
外壳材料（壳体）	split backshell	连接器用途	Threaded
插入角度	20-27	触头材料	Copper Alloy
壳体材料	Aluminum Alloy	主要材料	5015 Commercial
端接样式	Crimp	第一触头极性	Pin (Male)
配接方向	Threaded	触点数	14
位数	14	外壳尺寸-插件	20-27
外壳材料及表面处理	Aluminum, Olive Drab Cadmium Plated	典型触点布局	14#16

产品信息

备注	Contacts Not Provided	类型	MIL-C-5015 Circular
类别	B	连接器性别	PL
系列	97	产品特性	Rear Release
制造商全称	97 Series	产品子类型	Plugs
应用细节	Commercial
