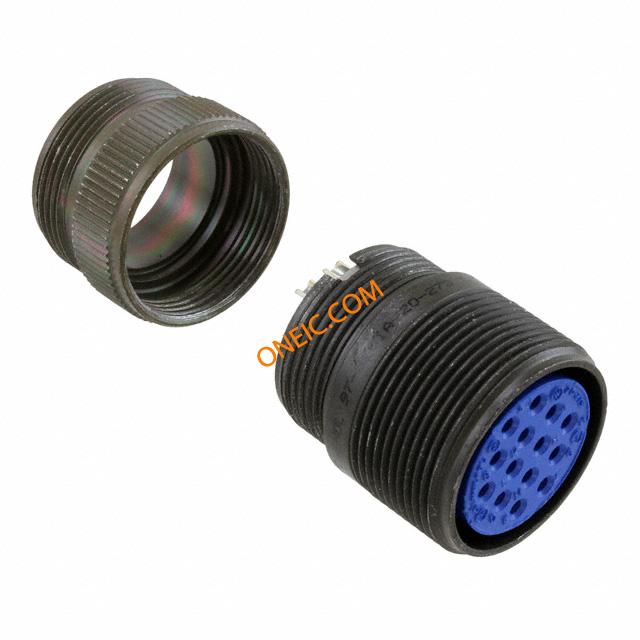

97-3101A-20-27S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 14 POS Solder ST Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 14POS CABLE MNT W/SKT connector;metal circ;cable recept;size 20;14 #16 solder socket cont;olive drab Circular MIL Spec Connector 14P Sz 20 Sckt Cable Receptacle Solder connector, metal circ, cable recept, size 20, 14 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 其他名称 | 973101A2027S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 20 | 导线线规 | 16-22 |
| 方向 | N (Normal) | 外壳样式 | cable connecting receptacle |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Cable |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 20-27 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 1 | 介电材料 | Diallyl-Phthalate |
| 位数 | 14 | 外壳尺寸-插件 | 20-27 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 14#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
