点击放大查看

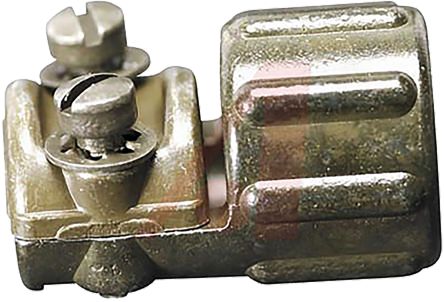

97-3057-12-6

制造商	Amphenol Corporation
描述	Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;step down;conn size 20;22;olive drab fin Circular MIL Spec Strain Reliefs & Adapters CABLE CLAMP 1/2 CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20, 22 connector accessory, an3057 cable clamp, step down, conn size 20, 22, olive drab fin Amphenol 97 系列尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
分类	集成电路逻辑IC电平转换器

对参数有疑问？问 AI 助手

商业参数

产品	Cable Clamps	其他名称	973057126
零件号别名	U10-825939-121	产品类别	Circular MIL Spec Strain Reliefs & Adapters
标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS non-compliant	MIL类型	MIL-DTL-5015
海关税号	85369010	认证机构	:MIL-DTL-5015

机械参数

重量	0.001	外壳尺寸	20, 22
螺纹尺寸	1 3/16-18	重量（g）	42.80000
基体材料	Aluminum Alloy	电缆开口	0.438" (11.10mm)
电缆直径	12.7 mm	配接方向	Threaded
外壳尺寸-插件	20, 22	绝缘材料 - 材质	:Zinc
供应商器件封装	Straight	外径-未扩张	:12.7mm

产品信息

类型	Cable Clamp	系列	97
附件类型	:Cable Clamp	射频系列/标准	97
适用产品/相关产品	:97 Series MIL-C-5015 Circular Connectors

文档与媒体

PDF 文档

12-022.pdf

PDF 文档

43898.pdf

PDF 文档

1448939.pdf

PDF 文档

inhouse_Amphenol_97_Series_DTL-5015_cable_clamps.pdf

相关型号

97-3106A-22-22S

amphenol

Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 4POS STRAIGHT W/SKT connector;metal circ;straight plug;size 22;4 #8 solder socket cont;olive drab Circular MIL Spec Connector 4P Size 22 Solder Straight Socket Plug CIRCULAR CONNECTOR PLUG, SIZE 22, 4POS, CABLE connector, metal circ, straight plug, size22, 4 #8 solder socket cont, olive drab

¥374.0919

详情

97-3106A-22-23S

amphenol

Conn MIL-C-5015 Circular SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 8POS STRAIGHT W/SKT connector;metal circ;straight plug;size 22;8 #12 solder socket cont;olive drab Circular MIL Spec Connector 8P Strt Socket Plug Sz 22 Solder CIRCULAR CONNECTOR PLUG, SIZE 22, 8POS, CABLE connector, metal circ, straight plug, size22, 8 #12 solder socket cont, olive drab

¥200.4640

详情

97-3106A-20-15P

amphenol

Conn MIL-C-5015 Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 7POS W/PINS connector;metal circ;straight plug;size 20;7 #12 solder pin contact;olive drab CIRCULAR CONNECTOR PLUG, SIZE 20, 7POS, CABLE connector, metal circ, straight plug, size20, 7 #12 solder pin contact, olive drab

¥362.0553

详情

97-3106A-20-7S

amphenol

Conn MIL-C-5015 Circular SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 8POS W/SOCKETS connector;metal circ;straight plug;size 20;8 #16 solder socket cont;olive drab connector, metal circ, straight plug, size20, 8 #16 solder socket cont, olive drab

¥122.7393

详情

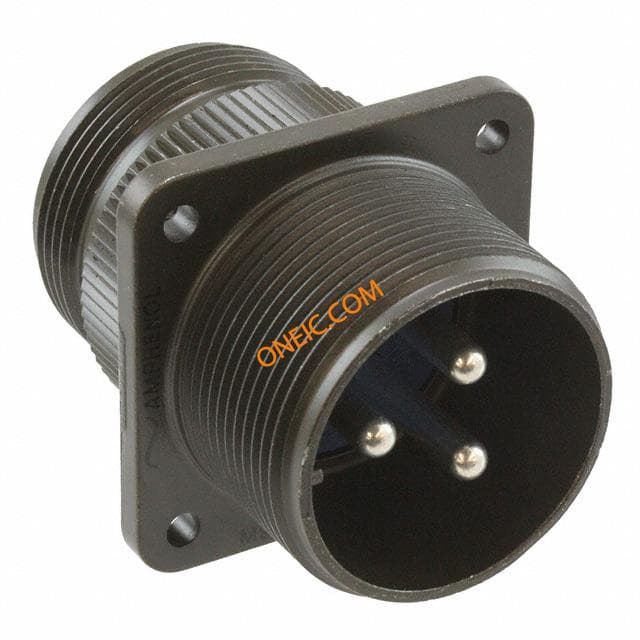

97-3100A-20-19P

amphenol

Conn MIL-C-5015 Circular PIN 3 POS Solder ST Wall Mount 3 Terminal 1 Port CONN RCPT 3POS WALL MNT PIN SLD connector;metal circ;wall recept;size 20;3 #8 solder pin contact;olive drab Circular MIL Spec Connector 3P Sz 20 Wall Mount Pin Recept Solder connector, metal circ, wall recept, size 20, 3 #8 solder pin contact, olive drab

¥145.0440

详情

97-3100A-20-4S

amphenol

Conn MIL-C-5015 Circular SKT 4 POS Solder ST Wall Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 4POS WALL MNT SKT SLD connector;metal circ;wall recept;size 20;4 #12 solder socket contact;olive drab Circular MIL Spec Connector 4P Sz 20 Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 20, 4 #12 solder socket contact, olive drab

¥145.9470

详情

97-3100A-22-9S

amphenol

Conn MIL-C-5015 Circular SKT 3 POS Solder ST Wall Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 3POS WALL MNT SKT SLD connector;metal circ;wall recept;size 22;3 #12 solder socket contact;olive drab Circular MIL Spec Connector 3P Sz 22 Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 22, 3 #12 solder socket contact, olive drab

¥214.6080

详情

97-3106A-20-19P

amphenol

Conn MIL-C-5015 Circular PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 3POS STRAIGHT W/PIN connector;metal circ;straight plug;size 20;3 #8 solder pin contact;olive drab Circular MIL Spec Connector 3P Straight Pin Plug Sz 20 Solder connector, metal circ, straight plug, size20, 3 #8 solder pin contact, olive drab

¥131.6480

详情

97-3106A-22-19S

amphenol

Conn MIL-C-5015 Circular SKT 14 POS Solder ST Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 14POS W/SOCKETS connector;metal circ;straight plug;size 22;14 #16 solder socket cont;olive drab CIRCULAR CONNECTOR connector, metal circ, straight plug, size22, 14 #16 solder socket cont, olive drab

¥336.7000

详情

97-3100A-22-14P

amphenol

Conn MIL-C-5015 Circular PIN 19 POS Solder ST Wall Mount 19 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 19POS WALL MNT PIN SLD Circular MIL Spec Connector 5P Sz 22 Wall Mount Pin Recept Solder connector, metal circ, wall recept, size 22, 19 #16 solder pin contact, olive drab For makeup item see stock#: 605-1091

¥144.5680

详情

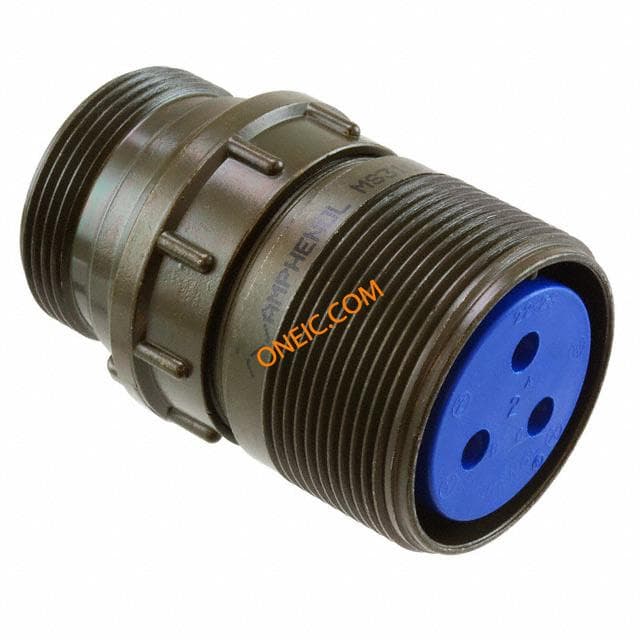

97-3101A-22-2S

amphenol

Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS CABLE SKT SLD connector;metal circ;cable recpet;size 22;3 #8 solder socket contact;olive drab Circular MIL Spec Connector 3P Shell Size 22 Cable Mount Recpt connector, metal circ, cable recpet, size 22, 3 #8 solder socket contact, olive drab

¥206.0400

详情

97-3106A-20-15S

amphenol

Conn MIL-C-5015 Circular SKT 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 7POS W/SOCKETS connector;metal circ;straight plug;size 20;7 #12 solder socket cont;olive drab connector, metal circ, straight plug, size20, 7 #12 solder socket cont, olive drab

¥166.1920

详情

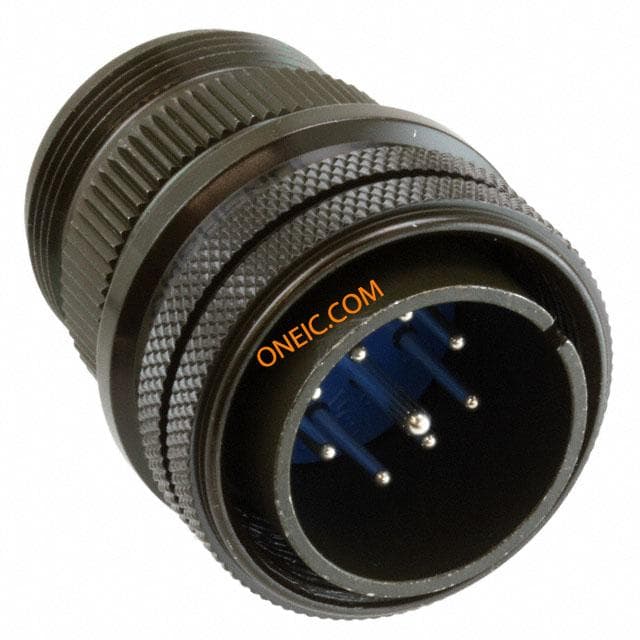

97-3106A-20-21P

amphenol

Conn MIL-C-5015 Circular PIN 9 POS Solder ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS STRGHT PIN SLD connector;metal circ;str plug;size 20;1#12 & 8#16 solder pin contact;olive drab Circular MIL Spec Connector 9P Straight Pin Plug Sz 20 Solder connector, metal circ, str plug, size 20, 1#12 & 8#16 solder pin contact, olive drab

¥218.6200

详情

97-3101A-20-16S

amphenol

Conn MIL-C-5015 Circular SKT 9 POS Solder ST Cable Mount 9 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 9POS CABLE SKT SLD connector;metal circ;cable recept;size 20;2#12 & 7#16 solder socket cont;olive Circular MIL Spec Connector 9P Sz 20 Sckt Cable Receptacle Solder connector, metal circ, cable recept, size 20, 2#12 & 7#16 solder socket cont, olive

¥125.4600

详情

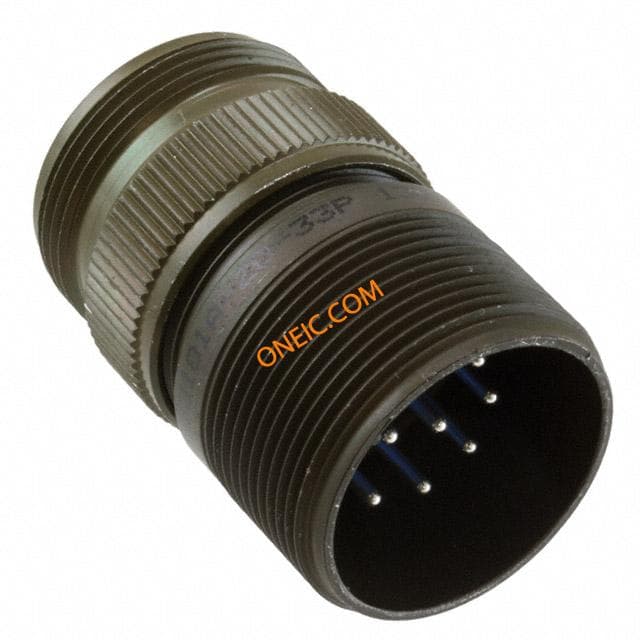

97-3101A-20-33P
