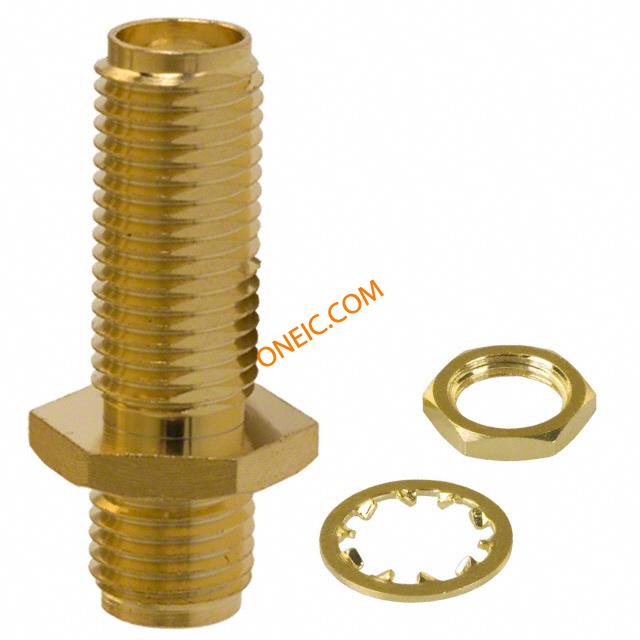

132170
| 制造商 | |
| 描述 | RF Adapters - In Series SMA JACK TO JACK BULKHEAD ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Panel Mount Gold CONN SMA ADPT JACK-JACK BULKHEAD connector;rf coaxial;sma in-series adapter;jack to jack bulkhead feedthru;50 ohm ADAPTER, SMA JACK, SMA JACK, 50OHM connector, rf coaxial, sma in-series adapter, jack to jack bulkhead feedthru, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM |
| 分类 |
商业参数
| 其他名称 | ACX1244 | 零件号别名 | 319-0185 99H5038 |
| 产品类别 | RF Adapters - In Series | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 转换速率 | Same Series |
| 最大频率 | 18GHz | 频率范围 | DC to 18 GHz |
机械参数
| 深度 | 9.5 mm | 高度 | 9.5 mm |
| 长度 | 0.871 in. | 重量 | 0.137568 oz |
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 方向 | Straight | 基体材料 | Brass |
| 安装类型 | Panel Mount | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | :Inter Series Coaxial |
| 接触镀层 | Gold | 外壳涂层 | Gold |
| 安装样式 | Panel | 壳体镀层 | Gold |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 22.1 mm |
| 主要材料 | Adapter | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 第一连接器极性 | Jack (Female) |
| 第二连接器性别 | Jack (Female) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
| 第一连接器安装类型 | Normal | 第一连接器安装特征 | :Socket |
| 第二连接器安装特性 | Normal | ||
产品信息
| 类型 | SMA Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Jack to Jack |
| 中心极性 | Female to Female | 适配器系列 | SMA to SMA |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
| 转换端（适配器端） | SMA Jack, Female Socket | 转换自（适配器端） | SMA Jack, Female Socket |
环境参数
| 工作温度 | -65C to 165C | ||
文档与媒体
相关型号
901-9876-RFX
amphenol

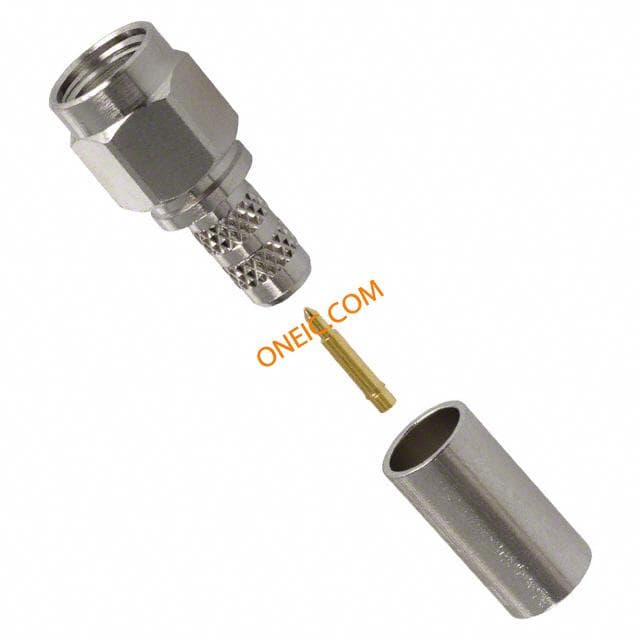

Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;captive cont;rg58;50 ohm RF Connectors / Coaxial Connectors STRT PLG 58 141 Ni CONNECTOR, QMA, RF COAXIAL, CRIMP
901-9986-RFX
amphenol
SMA BLKHD ADAPTER, J-J SMA BLKHD JACK TO JACK ADAPTER CONN COAXIAL RF Adapters - In Series SMA STRAIGHT BLKHD ADPT BULKHEAD ADAPTER, SMA JACK-SMA JACK
132360
amphenol

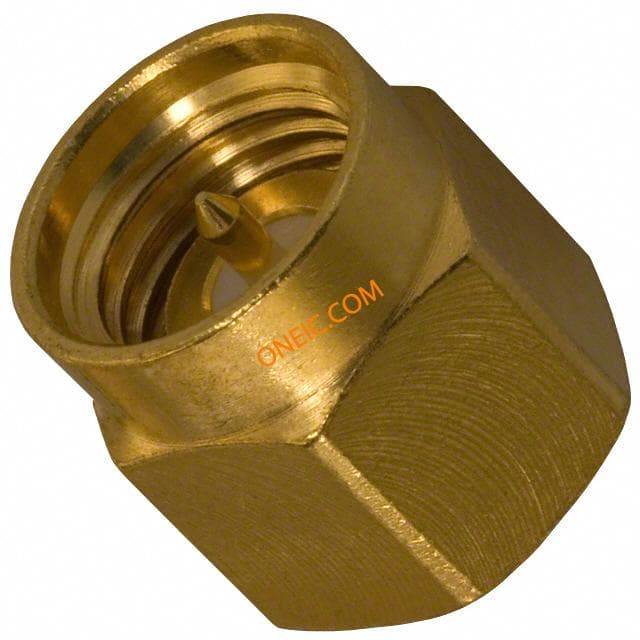

Conn SMA Terminator PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA PLUG TERMINATOR 50 OHMS connector accessory;sma plug resistor cap;for jacks and receptacles;50 ohm RF Connectors / Coaxial Connectors SMA MALE RESISTOR CAP 50 OHM RF COAXIAL, SMA, PLUG, 50OHM Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacks/Recep; Straight; 50Ohms
242140
amphenol connex

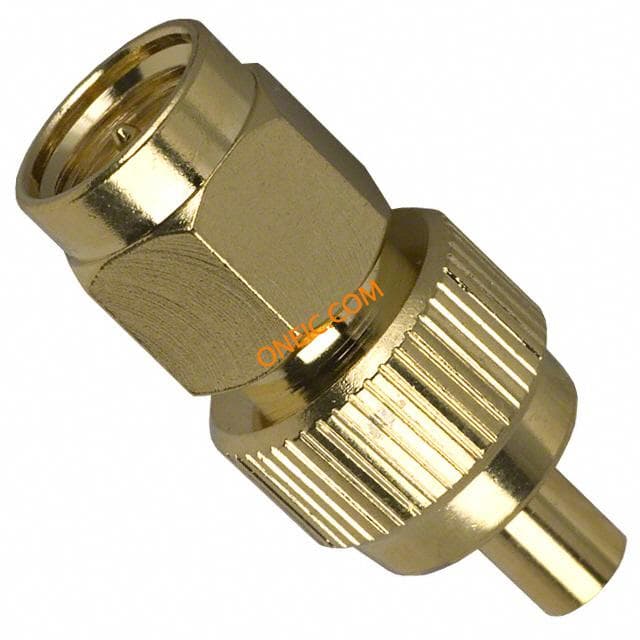

Conn SMA-MMCX Adapter PL/PL ST Gold CONN ADT SMA PLUG/MMCX JACK connector;rf coaxial;between series adapter;sma plug to mmcx jack RF Adapters - Between Series SMA PLUG TO MMCX JACK ADAPTER ADAPTOR, SMA-MMCX, RF COAXIAL connector, rf coaxial, between series adapter, sma plug to mmcx jack
132113
Amphenol Connex

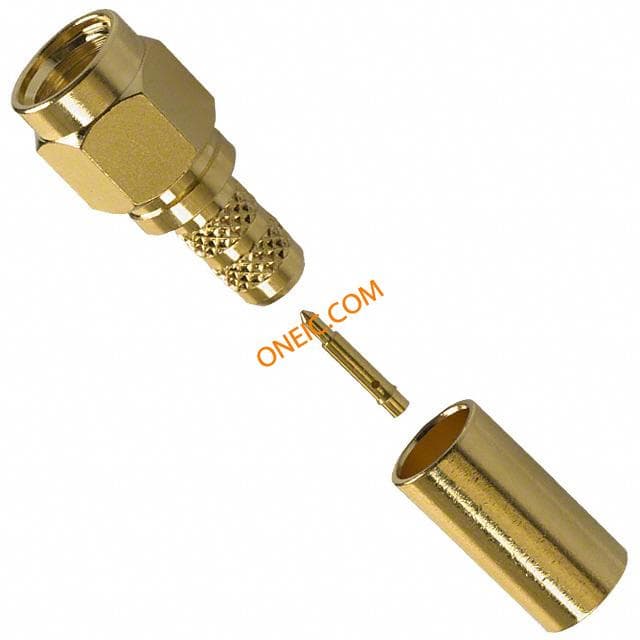

RF Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg 58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 58/LMR195 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg 58, 141, LMR195 cable, 50 ohm 132113 SMA Male Crimp Connector, Cable Group C, Amphenol
132168
Amphenol Connex

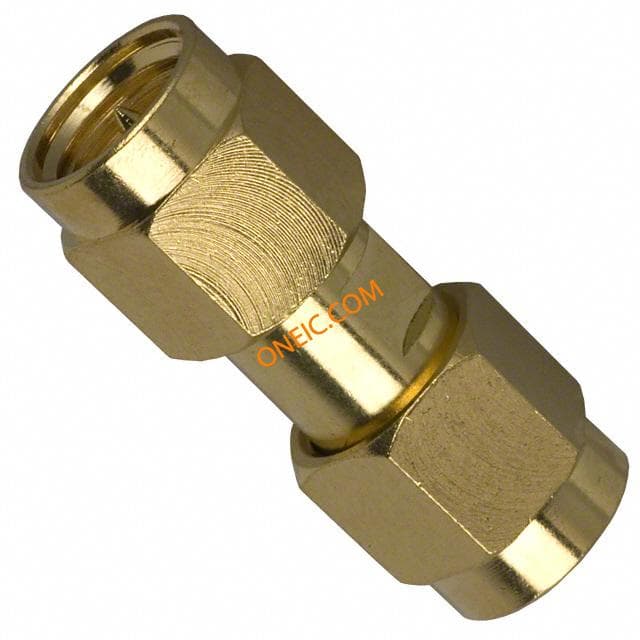

RF Adapters - In Series SMA ST PLUG PLUG ADAPTER GOLD Conn SMA Adapter PL/PL 0Hz to 18GHz 50Ohm ST Gold CONN SMA ADAPTER PLUG-PLUG STR connector;rf coaxial;sma in-series adapter;straight plug to plug;50 ohm RF COAXIAL CONNECTOR, ADAPTER connector, rf coaxial, sma in-series adapter, straight plug to plug, 50 ohm
132114
Brady Corporation
RF Connectors SMA STRAIGHT PLUG 316/174 GOLD Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 316/174 GOLD RF COAXIAL, SMA, PLUG, CRIMP, 50OHM connector, rf coaxial, sma str crimp plug, for rg174, 316, LMR100 cable, 50 ohm 132114 SMA Male Crimp Connector, Cable Group B, Amphenol/Connex
132170
Amphenol Connex
RF Adapters - In Series SMA JACK TO JACK BULKHEAD ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Panel Mount Gold CONN SMA ADPT JACK-JACK BULKHEAD connector;rf coaxial;sma in-series adapter;jack to jack bulkhead feedthru;50 ohm ADAPTER, SMA JACK, SMA JACK, 50OHM connector, rf coaxial, sma in-series adapter, jack to jack bulkhead feedthru, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM
901-9894-RFX
amphenol

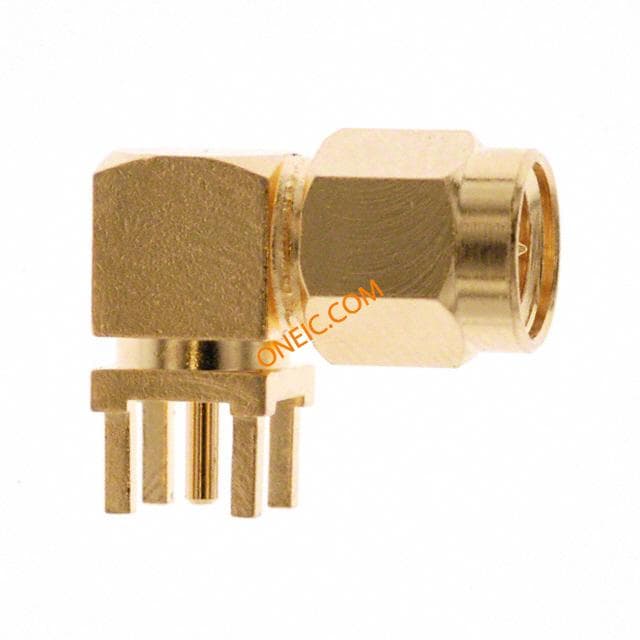

Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold CONN SMA PLUG R/A 50 OHM PCB connector;rf coaxial;sma pcb rt angle plug recept;4 legs;blunt post term;gold RF Connectors / Coaxial Connectors PC R/A PLG TFE GLD CONNECTOR, QMA, RF COAXIAL connector, rf coaxial, sma pcb rt angle plug recept, 4 legs, blunt post term, gold
