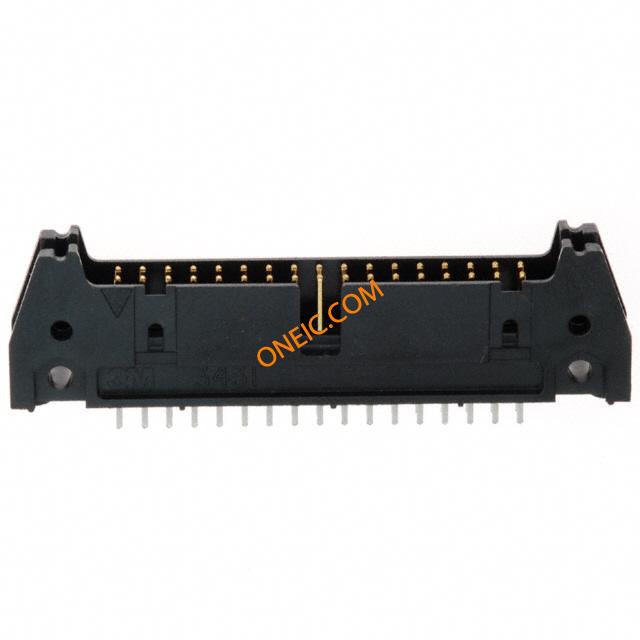

N3431-6002RB

点击放大查看

N3431-6002RB

制造商
3M Company
描述Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 34 CONTACT 3M 3000 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 34P STR HDR SOLDER NO LATCH/EJECTOR ConnEjectorHeaderHDR34POS2.54mmSolderSTThru-Hole Pin header DIN 41651 34P, N3431-6002RB, 3M 3M 3000 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05111165075 80400027860产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant材料阻燃等级UL 94 V-0

电气参数

电容40.64测试电压0.5
极数34最大额定电流2A

机械参数

颜色Black间距2.54 mm
包装方式Bulk壳体颜色58.6
方向直排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Gold Over Nickel排数2
触头材料Copper Alloy壳体材料Polyester
端接排数焊接端接样式Through Hole
触点数34位数34
第一连接器极性Male接触长度 - 配合0.240" (6.10mm)
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列3000覆盖范围覆盖
产品子类型Headers放大器类型62.5
加载位置数All

环境参数

工作温度-55...+105 °C

文档与媒体

在线文档
mediawebserver.dyn?6666660Zjcf6lVs6EVs666UDLCOrrrrQ-
