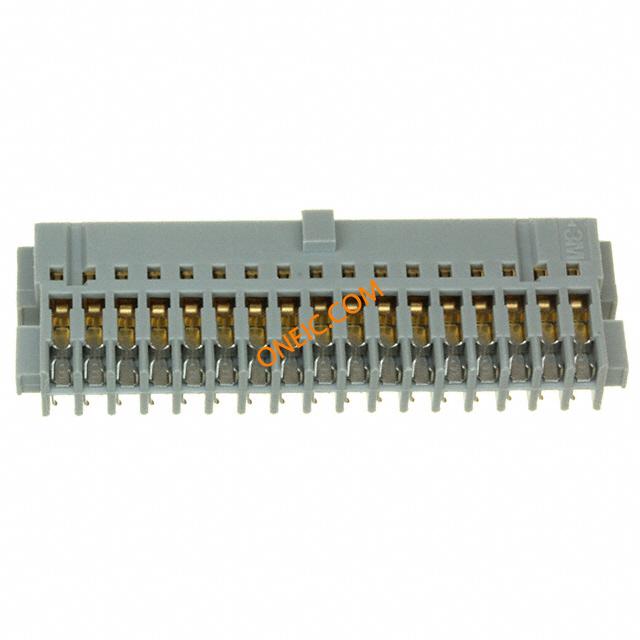

CHG-2034-J01010-KCP

制造商	3M Company
描述	Headers & Wire Housings 34P 2 ROW SOCKET 30U GOLD .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 34POS 28-26 AWG POLARIZEDWIREMOUNTSOCKET;GOLDWIPEAREA;26/28AWG;34CONTACT
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400761983 80610210223	产品类别	Headers & Wire Housings
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	标准	DIN41612,MIL-G-45204,QQ-N-290
认证机构	cUL,UL	RoHS合规（认证）	Yes
材料阻燃等级	UL94V-0

电气参数

最大额定电流

1.5 A

机械参数

颜色	Gray	间距	2.54 mm
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	28-26	排间距	0.100" (2.54mm)
端接方式	IDC	触头类型	Female Socket
安装类型	Vertical	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold
安装样式	Free Hanging	排数	2
触头材料	Copper Alloy	总长度	1.88"
主要材料	Wiremount	电缆端接方式	IDC
插针孔直径	0.1"	端接样式	IDC
第一触头极性	Socket (Female)	触点数	34
介电材料	PBT	绝缘直径	0.054"
位数	34	接触镀层厚度	30µin (0.76µm)

产品信息

类型	CableSocket	系列	CHG
产品特性	Closed End, Polarizing Key	制造商全称	CHGSeries
产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

-55to+105°C

文档与媒体

在线文档

CHG-20 Series

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UB9COrrrrQ-

相关型号

N3431-1002RB

3m interconnect solutions

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 34POS R/A GOLD T/H Headers & Wire Housings BOARDMT HDR 34P NO LATCH/EJECTOR

¥15.5040

详情

3431-6303

3m interconnect solutions

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 34POS STR LONG LATCH WIRE-BOARD CONN, HEADER, 34POS, 2.54MM

¥23.4600

详情

N3431-6302RB

3m interconnect solutions

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 34POS STR LONG LATCH 3M 3000 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 34P STRT LONG PIN SOLDER TAIL 30u GOLD HEADER, STRAIGHT, L/LATCH, 34WAY Header;Latch-Ejector,4-Wall;0.1In;CopperAlloy;1.75A;HighTempPlastic;Str;34Cnts Socket; IDC; male; PIN:34; straight; with ejector; THT; gold plated sale 3M 3000 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 34P FOUR WALL HEADER HIGH TEMP

¥9.0600

详情

暂无图片

3431-6503

3m interconnect solutions

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole CONN HEADER 34PS STR SHORT LATCH

¥23.2356

详情

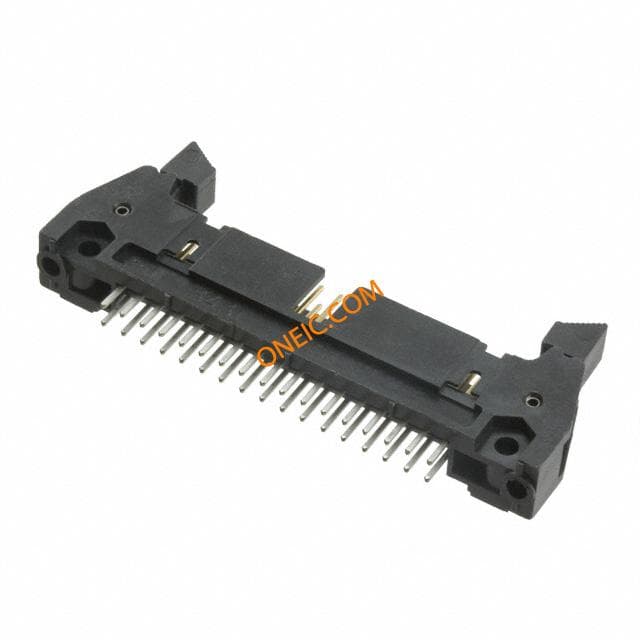

D3431-6202-AR
