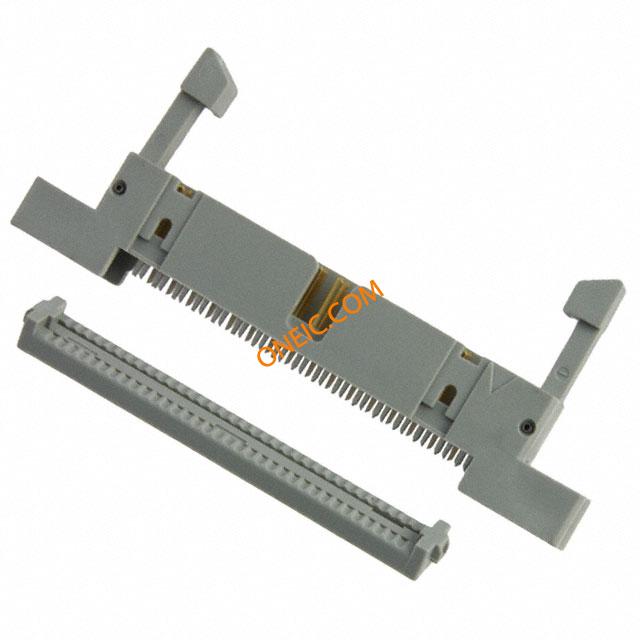

4634-6300

点击放大查看

4634-6300

制造商
3M Company
描述ヘッダ & ワイヤハウジング 34P OPEN END PLUG .100" × .100" Connector For .050" Pitch Cable CONN PLUG 34POS W/FLANGE 3M 4600 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Conn Ejector Header PL 34 POS 2.54mm IDT RA Cable Mount HEADER, IDC, LATCH, 34WAY PlugCablemount4600Series34way 3M 4600 系列 34路 2.54mm节距 (2排) 直角 IDC 连接器 , IDT端接, 1A, 电缆安装
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量300

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
RoHS合规（认证）Yes

电气参数

最大额定电流1A

机械参数

颜色Gray间距0.100" (2.54mm)
重量0.111包装方式Bulk
导线类型Discrete or Ribbon Cable导线线规26-28 AWG, Stranded or Solid
排间距0.100" (2.54mm)端接方式IDT
触头类型Male Pin安装类型Free Hanging (In-Line)
连接器类型Plug接触镀层Gold
紧固类型Latch, Long/Eject Hooks排数2
触头材料Copper Alloy电缆端接方式IDC
触点数34接触件端接:IDC / IDT
位数34接触镀层厚度30µin (0.76µm)
第一连接器安装类型:Cable

产品信息

连接器性别:Plug系列4600
产品特性Feed Through

文档与媒体

PDF 文档
685282.pdf
