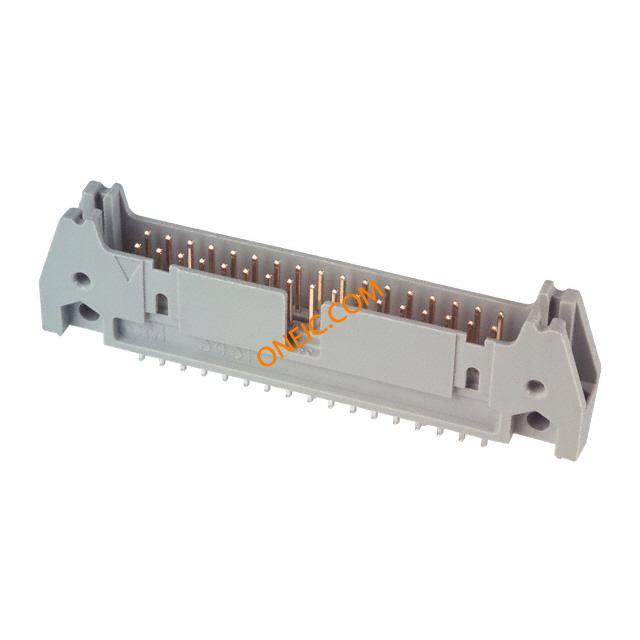

3431-6002

点击放大查看

3431-6002

制造商
3M Company
描述Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 34 CONTACT WallHeader;CopperAlloy;Nickel(Underplate)2.46in.
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant认证机构cUL,UL
RoHS合规（认证）No材料阻燃等级UL94V-0

电气参数

最大额定电流2A

机械参数

颜色Gray间距2.54 mm
高度0.68in.长度0.100in.x0.100in.
包装方式Bulk排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
引脚长度（针脚）0.112"孔径2.54mm
安装类型Through Hole行程角度Straight
连接器类型Header, Shrouded接触镀层Gold Over Nickel
排数2触头材料CopperAlloy
壳体材料GlassFilledPolyester总长度2.465"
插针孔直径0.1"触点数34
位数34绝缘材料 - 材质GlassFilledPolyester(PBT),GlassFilledPolyester(PCT-HighTemperatureOption)
安装孔直径0.1"接触长度 - 配合0.240" (6.10mm)
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
产品特性Four-Wall制造商全称3000Series
加载位置数All

环境参数

温度额定值-55to+105°C工作温度-55to+105°C
