点击放大查看

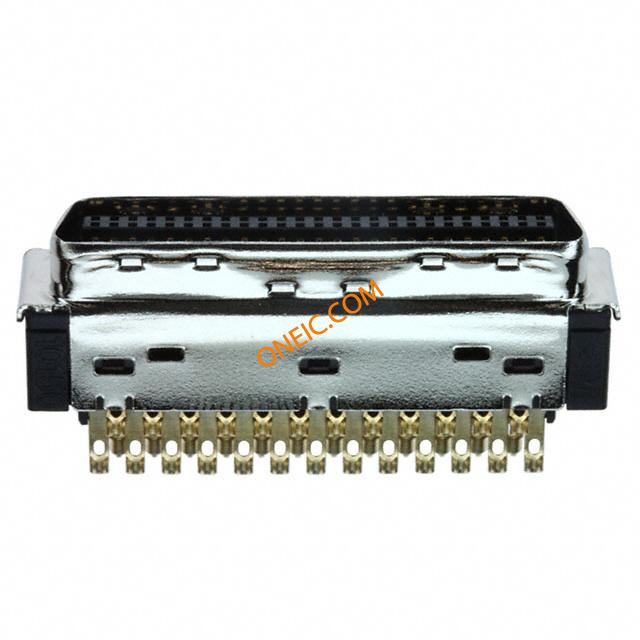

10150-3000PE

制造商	3M Company
描述	Conn SCSI PL 50 POS 2.54mm Solder Cup ST Cable Mount 50 Terminal 1 Port D-Sub Micro-D Connectors 50P PLUG WIREMOUNT MDR Wiremount Plug, Solder, Shielded CONN MDR PLUG 50POS SLD CUP 3M Male 50 Way Straight Cable Mount SCSI Connector 2.54mm Pitch, Solder PLUG, MDR, SOLDER, 50WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;50Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:50; 1.27mm; 24÷30AWG; 1A MDR plug 50P, 10150-3000PE, 3M 3M 50 路 2.54mm节距直电缆安装公 SCSI 连接器, 焊接 50P CONNECTOR MALE PLUG MDR
分类	集成电路嵌入式微控制器应用处理器

对参数有疑问？问 AI 助手

商业参数

零件号别名	54548623744969 54745239795 54862374496 JE150332847 JE150430005	产品类别	D-Sub Micro-D Connectors
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	标准	UL94V-0
海关税号	85369010	材料阻燃等级	:UL94V-0

电气参数

测试电压	0.5kV	极数	:50
击穿电压	:500V	最大额定电流	1 A
绝缘电阻	:500Mohm	触点额定电流	1A
连接器类型 - 电压输入	shielded

机械参数

深度	19.3mm	间距	2.54 mm
宽度	9.1mm	长度	41.1mm
重量	0.008	材料（通用）	:Steel
包装方式	Bulk	导线线规	30-24
端接方式	Solder Cup	柱间距	1.27mm
基体材料	polyester	安装类型	Cable Mount
外壳镀层	:Gold	行程角度	Straight
连接器类型	Plug	接触镀层	Gold
安装样式	Wire	排数	2
连接器样式	Center Strip Contacts	插入件材料	Polyester
触头材料	Copper Alloy	壳体材料	Steel
包装数量	100	主要材料	Mini-D-Ribbon
连接器 - 电缆	plug	端接样式	Solder
触点数	50	接触件端接	:Solder
位数	50	接触镀层厚度	20µin (0.51µm)
触点材料 - 镀层	nickel plated, gold plated	第一连接器安装类型	:Cable

产品信息

SPG	100	类型	SCSI
连接器性别	PL	产品特性	Shielded
CAD图纸	3D CAD Model	制造商全称	101
单元数量	1

环境参数

工作温度

+105°C

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs666U1dCOrrrrQ-

在线文档

101xx-3000-Py

PDF 文档

75103.pdf

相关型号

10250-R21TS

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MINI-D 50POS VERT RECPT 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle50positions

¥47.3960

详情

10250-55G3PC

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P RA RECPTACLE CONN MINI-D 50POS R/A RECPT 3M 102 Series 1.27mm Pitch 50 Way Right Angle Through Hole Female PCB D-sub Connector, Solder Termination, 1A 3M 102 系列 50 路 1.27mm节距直角通孔母 PCB D-sub 连接器, 焊接, 快速闩锁

¥3.2987

详情

10350-52A0-008

3m interconnect solutions

Connector Accessories Plastic Shell 50 POS D-Sub Backshells 50P JUNCTION SHELL JUNCTION SHELL 50POS 50 way screw release plastic backshell Plastic Shielded Shell Screw BACKSHELL, MDR, 50WAY, SCREW Backshell;50Pos;Unshielded;forRoundCable;Black;LatchLock;103MDRSer. Plug housing; PIN:50; Locking: screws 3M 103 系列 50 路直黑色聚合物 D-sub 连接器底壳 , 带应力消除

¥13.7200

详情

N10250-52E3PC

3m interconnect solutions

Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Micro-D Connectors MDR/26POS/HITEMP/ CONN MINI-D 50POS R/A RECPT

¥37.8080

详情

10250-0210EC

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 50POS IDC GOLD 3M 102 Series 1.27mm Pitch 50 Way Straight Panel Mount Female IDC D-sub Connector, Zinc Alloy Shell SOCKET, MDR, IDC, 50WAY 3M 102 系列 50 路 1.27mm节距直面板安装母 IDC D-sub 连接器, IDC, 快速闩锁

¥45.2760

详情

10350-52F0-008

3M Electronic Solutions Division

D-Sub Backshells 50P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 50POS STRGT 50 way finger release plastic backshell BACKSHELL, MDR, 50WAY, Q/REL Hood;D-Sub;50Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR;Shielded Plug housing; PIN:50; Locking: lock 3M 103 系列 50 路直黑色聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除

¥55.2928

详情

N10250-5242PC

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 50POS R/A RECPT

¥44.1320

详情

N10250-52B2PC

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P HI TEMP MDR CONN MINI-D 50POS R/A RECPT 3M 102 Series 1.27mm Pitch 50 Way Right Angle Through Hole Female PCB D-sub Connector, Solder Termination, 1A 3M 102 系列 50 路 1.27mm节距直角通孔母 PCB D-sub 连接器, 焊接, 快速闩锁

¥45.4240

详情

10250-6212PL

3M Electronic Solutions Division

D-Sub Micro-D Connectors 50P SKT BD MT MINI D RIBBON 50 CONTACT 3M Female 50 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder Conn SCSI RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port RECEPTACLE, MDR, STRAIGHT, 50WAY MDRPCBSKT50W MDR socket 50P, 10250-6212PL, 3M 3M 50 路 2.54mm节距直通孔母 SCSI 连接器, 焊接 50P D-SUB MICRO CONNECTOR

¥43.5799

详情

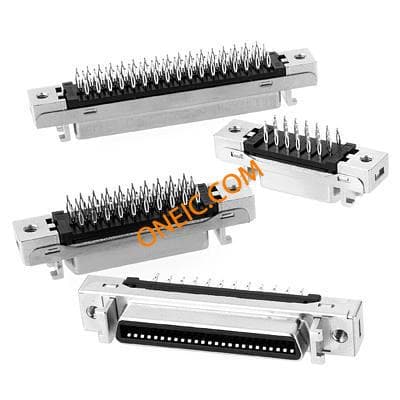

10250-R20CS
