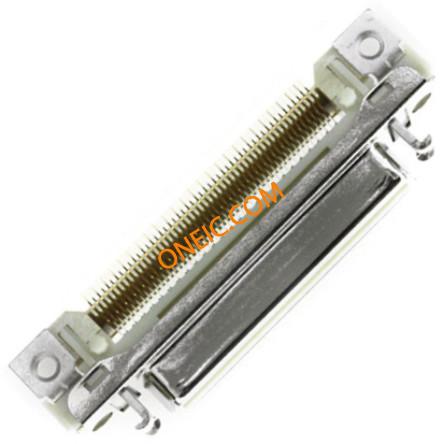

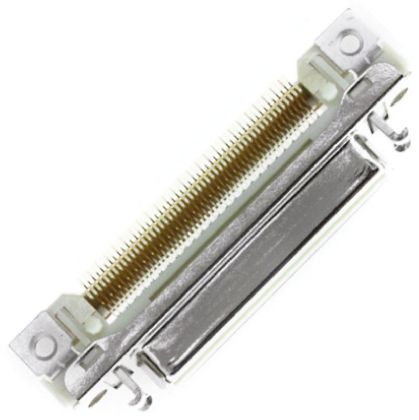

10250-1210PE
| 制造商 | |
| 描述 | Conn SCSI RCP 50 POS 0.64mm Solder RA SMD 50 Terminal 1 Port D-Sub Micro-D Connectors 50P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 50POS R/A SMD 3M 102 Series 0.5in 50 Way 2 Row Right Angle PCB Socket Surface Mount SOCKET, MDR, SMT, RA, 50WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,50CONTACTS 3M 102 系列 2行 50路 直角 12.7mm节距 表面贴装 印刷电路板插座 |
| 分类 |
商业参数
| 零件号别名 | 54745226201 JE150317822 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366990 | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 量程（°/s） | :3M - 102 Series | 最大额定电流 | 1 A |
机械参数
| 间距 | 0.64 mm | 重量 | 1.18 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Surface Mount | 行程角度 | RightAngle |
| 连接器类型 | Receptacle | 接触镀层 | Tin Lead |
| 法兰特征 | Insert, Threaded (M2.5); Latchblocks | 安装样式 | SMD/SMT |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 触头材料 | Copper Alloy | 主要材料 | Mini-D-Ribbon |
| 端接样式 | Solder | 触点数 | 50 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 50 |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Board Guide, Shielded |
| 制造商全称 | 102 | ||
