点击放大查看

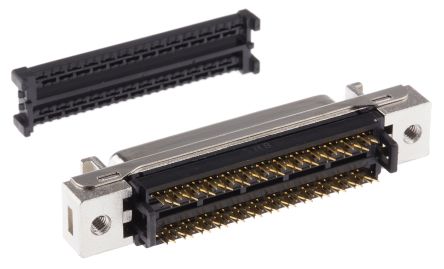

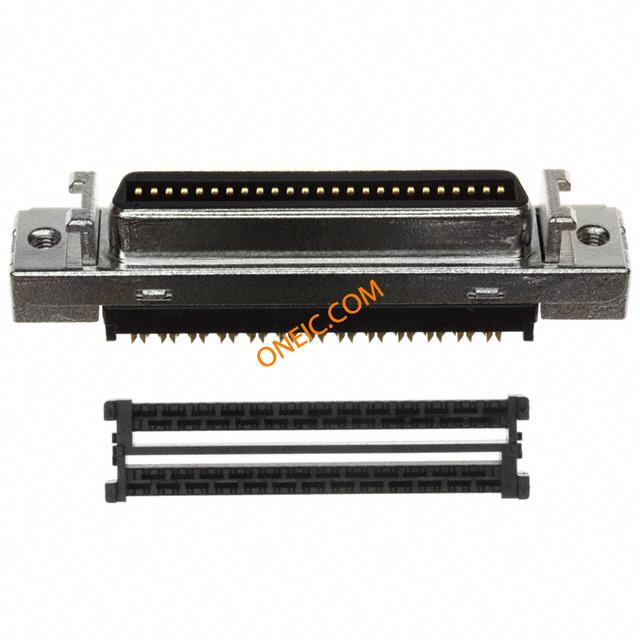

10250-0210EC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 50P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 50POS IDC GOLD 3M 102 Series 1.27mm Pitch 50 Way Straight Panel Mount Female IDC D-sub Connector, Zinc Alloy Shell SOCKET, MDR, IDC, 50WAY 3M 102 系列 50 路 1.27mm节距 直 面板安装 母 IDC D-sub 连接器, IDC, 快速闩锁 |
| 分类 |
商业参数
| 零件号别名 | 90169009060 JE150182424 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 102 Series | 最大额定电流 | 1 A |
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 15.2mm | 长度 | 52.4mm |
| 重量 | 1 lb | 端接方式 | IDC |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 法兰特征 | Insert, Threaded (M2.5); Latchblocks | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Quick Latch | 触头材料 | Beryllium Copper |
| 壳体材料 | Zinc Alloy | 端接样式 | IDC |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 连接器性别 | Female | 系列 | 102 |
| 产品特性 | Shielded | ||
环境参数
| 工作温度 | +85°C | ||
