点击放大查看

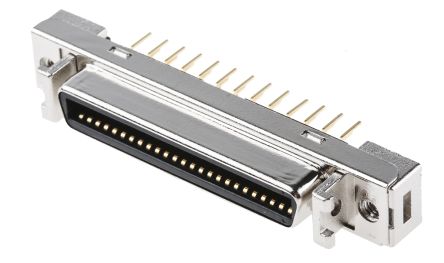

10250-6212PC
| 制造商 | |
| 描述 | Conn SCSI RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Micro-D Connectors 50P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 50POS VERT T/H 3M 102 Series 1.27mm 50 Way Straight PCB Socket Through Hole Female Quick Latch .050 Mini D Ribbon Connector (50 pos) Receptacle Vertical Boardmount Shielded SOCKET, MDR, THT, 50WAY .050MiniDRibbonConnector(50pos)ReceptacleVerticalBoardmountShielded 3M 102 系列 50 路 1.27mm节距 直 通孔 母 印刷电路板插座, 焊接, 快速闩锁 |
| 分类 |
商业参数
| 零件号别名 | 54745226191 JE150317715 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 102 Series | 最大额定电流 | 1 A |
机械参数
| 深度 | 9.1mm | 间距 | 2.54 mm |
| 宽度 | 11mm | 高度 | 11 mm |
| 长度 | 52.4mm | 重量 | 1.38 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin Lead | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | Quick Latch |
| 触头材料 | Copper Alloy | 壳体材料 | Zinc Alloy |
| 总长度 | 52.4 mm | 端接样式 | Solder |
| 触点数 | 50 | 接触件端接 | :Through Hole Vertical |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Shielded |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | +85°C | 结工作温度 | 85C |
